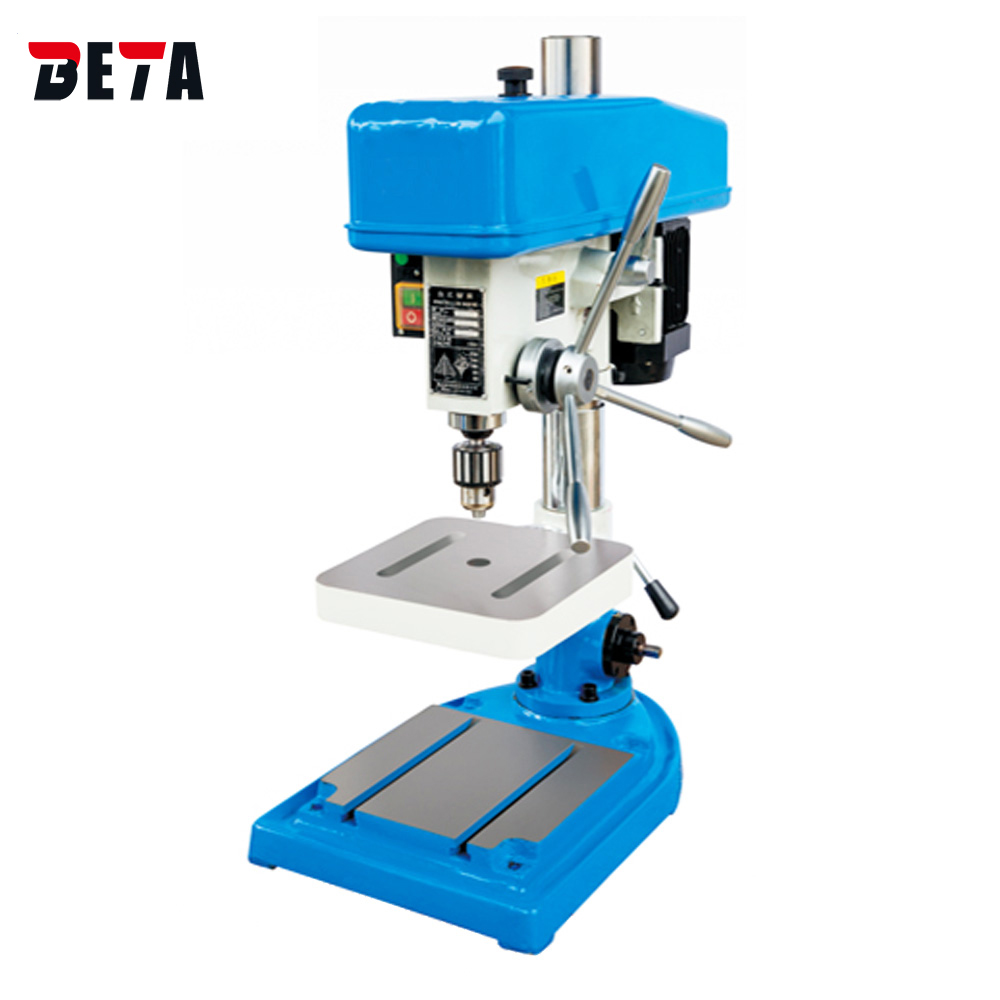

WhatsApp: +8618266249928WhatsApp: +86182662499281.Both spindle head,column and base using high quality cast iron,strong and everlasting 2.High precision with excellent feature,widely use at instrument and camera area
Model | Z512D/Z516D |
Max,tapping capacity | 12.7/16mm |
Diameter of column | 70mm |
Spindle travel | 100mm |
Distance spindle to column | 193mm |
Max.distance spindle nose to table | 315mm |
Max.distance spindle nose to base | 556mm |
Spindle taper | B16/MT2 |
Spindle speeds range | 480~4100r/min |
Spindle speeds series | 5speeds |
Dimension of table surface | 200x230mm |
Dimension of base | 528x360mm |
Overall height | 1037mm |
Power of motor | 370/550W |
G.W/N.W | 108/90KG |
Packing dimension | 77x42x94cm |
