Z4120D Z4125D-Drilling Machine-TENGZHOU BETA CO.,LTD.

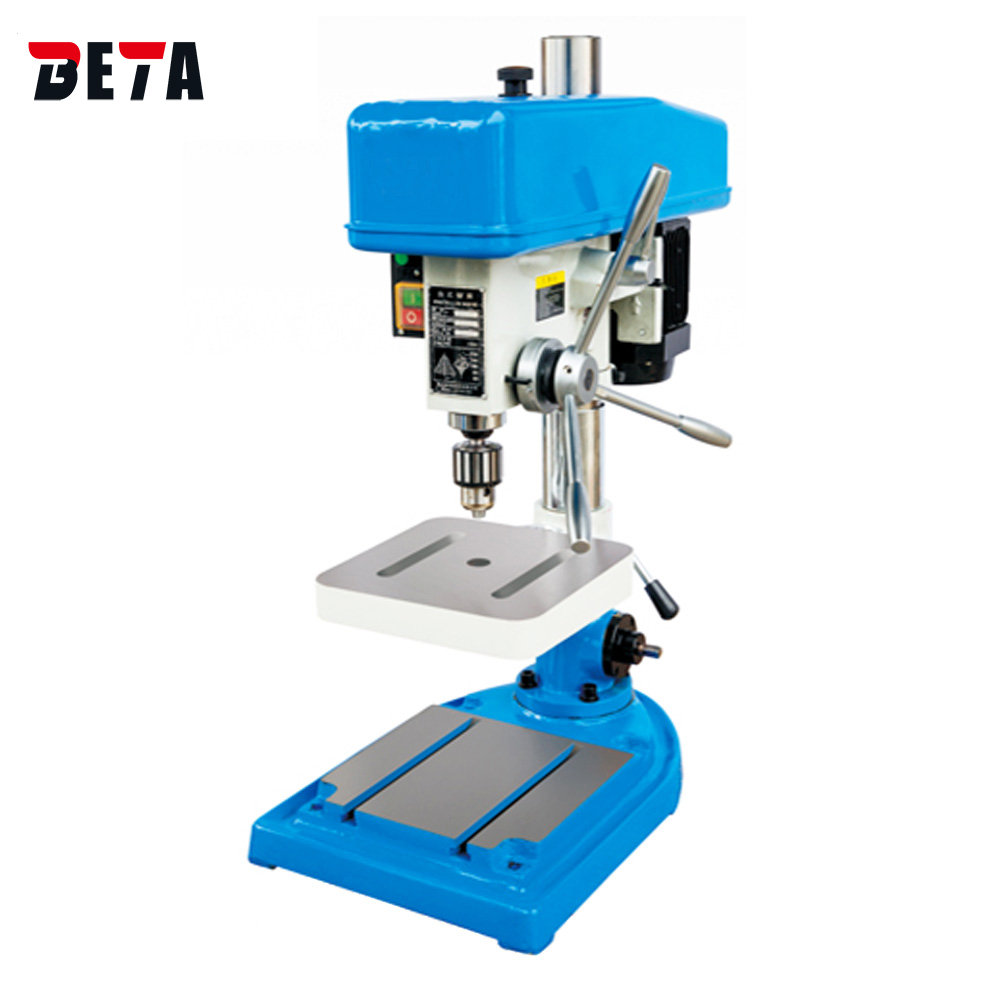

Drilling Machine

Z4120D Z4125D

Features
Specification
CONFIGURATION

1.Both spindle head,column and base using high quality cast iron,strong and everlasting 2.High precision with excellent feature,widely use at instrument and camera area

Model	Z4120D/Z4125D
Max,tapping capacity	20/25mm
Diameter of column	85mm
Spindle travel	125mm
Distance spindle to column	240mm
Max.distance spindle nose to table	367mm
Max.distance spindle nose to base	630mm
Spindle taper	MT2/MT3
Spindle speeds range	365~3150r/min
Spindle speeds series	5speeds
Dimension of table surface	280x300mm
Dimension of base	590x375mm
Overall height	1127mm
Power of motor	750/1100W
G.W/N.W	165/140KG
Packing dimension	82x48x102cm
