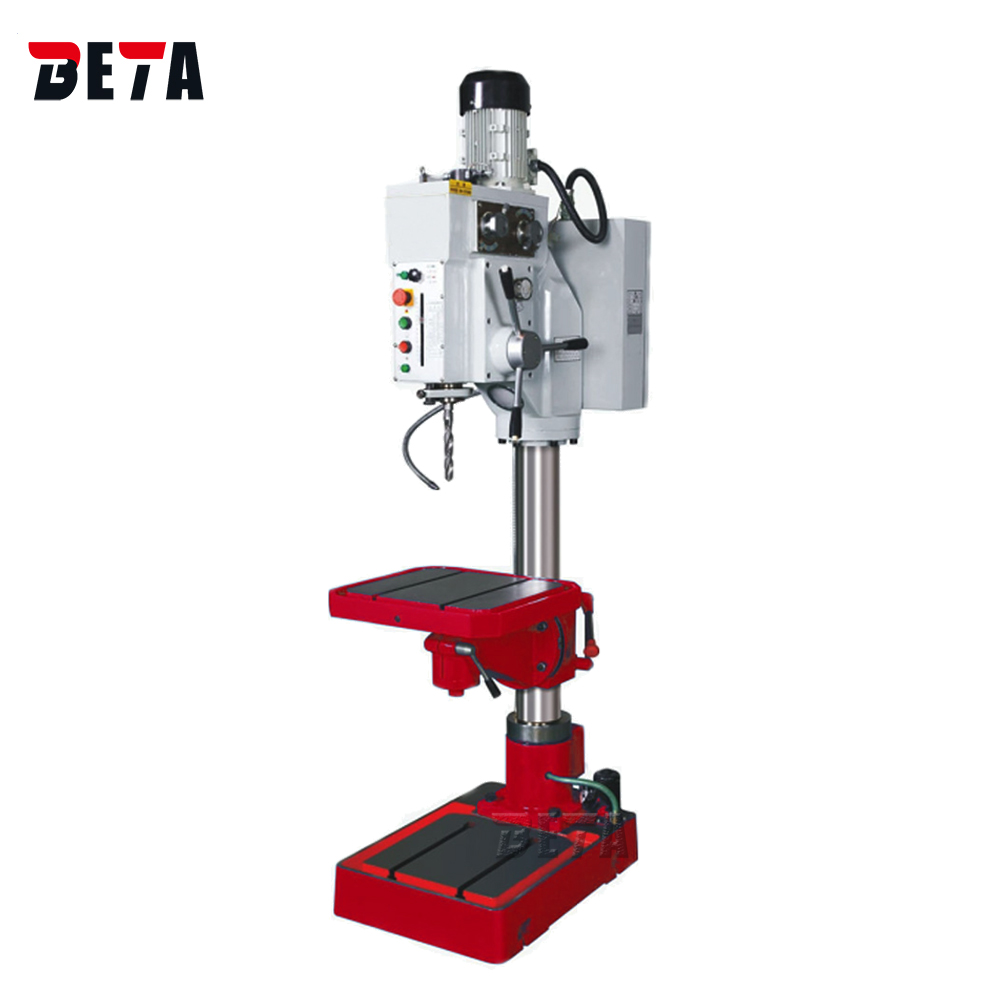

Z5040-Drilling Machine-TENGZHOU BETA CO.,LTD.

Drilling Machine

Z5040

Max. drilling diameter 40mm
Max. tapping capacity M27

Features
Specification
CONFIGURATION

1. Machine features and scope of application: novel design. nice appearance. Tight structure and wide speed range.

2. The worktable can be rotated ±180° or tilted ±45°, with a wide range of use. 3. Equipped with cooling device and tapping device. 4. The electrical system implements IEC electrical standards and has short-circuit and overload protection functions.

Model	Z5050
Max. drilling capacity (mm)	40
Max. taping capacity (mm)	M27
Dia. column	160
Distance from spindle axis to of column (mm)	360
Max. distance from spindle nose to work table surface (mm)	590
Max. distance from spindle nose to base (mm)	1180
Max. spindle travel (mm)	180
Swivel of table and table reat	±45°
Spindle bore taper (Morse)	MT4
Spindle steps	12
Spindle speed (r/min)	42~2050
Spindle feed steps	4
Spindle feed range (mm/r)	0.07, 0.15, 0.26, 0.40
Dimension of worktable surface (mm)	550x470
Dimension of base table (mm)	450x440
Power of Main motor (kw)	2.2/2.8
Coolant motor power (W)	40
Overall height (mm)	2330
Packing size (cm)	108x62x245
N.W./G.W. (kg)	755/815

Standard accessories:

Gear drive

Coolant pump

Two-speed motor

Drilling & Tapping function

Electrical protection device

Work light
