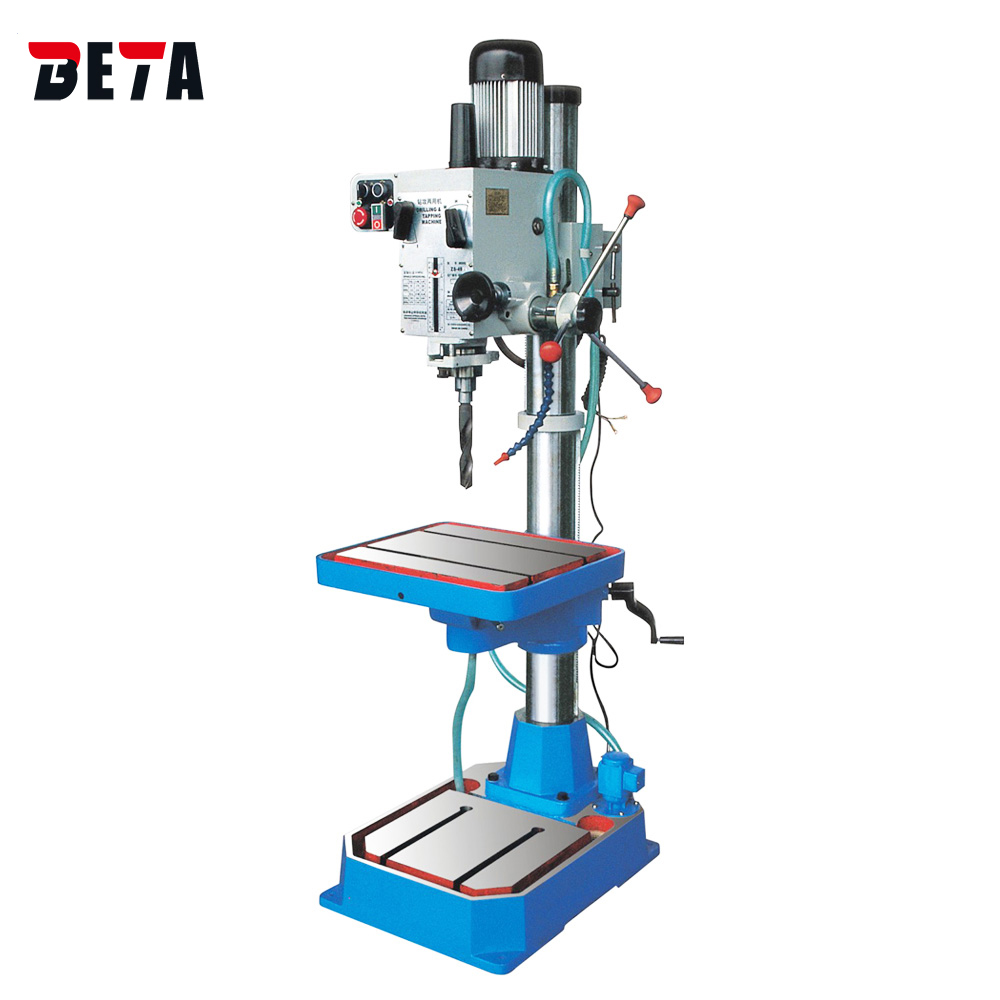

Drilling Machine

ZS40H

INQUIRY

Features
Specification
CONFIGURATION

Main features:

1. Drilling, tapping

2. The spindle head can be rotated 360 degrees

3. The head can be lifted vertically

4. Ultra-high column

5. Precision fine-tuning feed

6. High load tapered roller bearing support spindle

7. The spindle can be locked at any position

8. Workbench gap strips are adjustable

9. Gear transmission, low noise

Model	Unit	ZS40H
Max. drilling capacity	mm	31.5(MT3) , 40(MT4)
Spindle taper	--	MT3 or MT4
dimension of base	mm	650450 470670(water tank)
Worktable size	mm	500*460
Spindle speed	rpm	75-1600
Max. distance spindle axis to column	mm	297.5
Spindle travel	mm	120
Diameter if column	mm	115
Max. distance spindle nose to worktable	mm	715
Max. distance spindle nose to base	mm	1180
Power of motor	kw	1.5
N.W./G.W.	kg	335/365
Packing size	mm	7307601870

Draw bar, adapter, taper shank for drilling chuck, drilling chuck, T-slot bolt, washer, nut, tilted wedge, spanner, oil gun, instruction manual, certificate of inspection, packing list
