ZXS4625-Drilling Machine-TENGZHOU BETA CO.,LTD.

Drilling Machine

ZXS4625

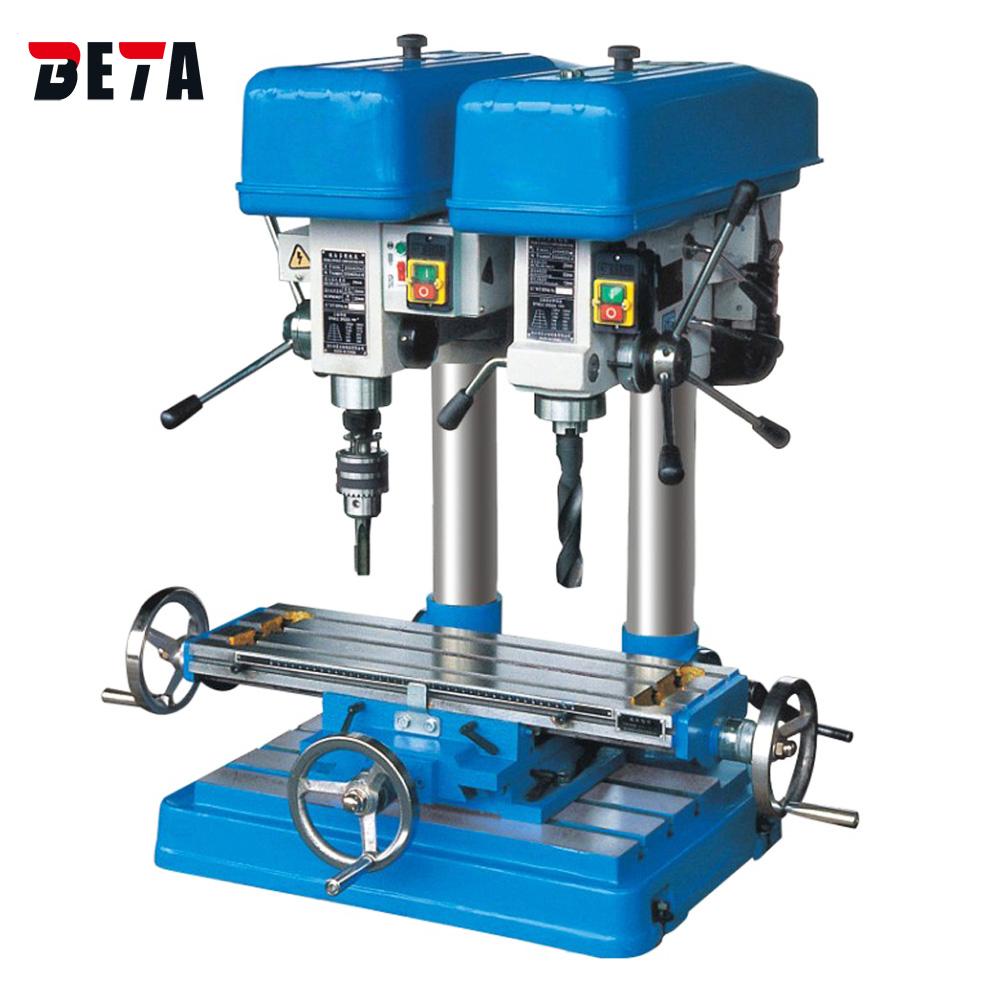

Double-spindle compound machine

♦The machine not only can drilling & milling,but also tapping ,it's has multi-function

♦It's no need to reinstall the workpiece to tapping after drilling.

♦The proportion of capability and price are best.

Model	ZXS4625
Max.drilling capacity	25mm
Max.tapping capacity	M24/M20
Max.face mill capacity	63mm
Diameter of vertical milling	13mm
Spindle travel	125/110mm
Head travel	440mm
Distance spindle to column	240mm
Distance of column	280mm
Distance spindle nose to worktable	75~510mm
Spindle taper	MT3
Spindle speeds range	290~2150r/min
Spindle speeds series	5speeds
Dimension of worktable surface	640mm x205mm
Dimension of base	650x600mm
Table travel	370mm x 150mm
Overall height	1130mm
Motor	750w
G.W/N.W	320/280kg
Packing dimension	93cm x 85cm x105cm
