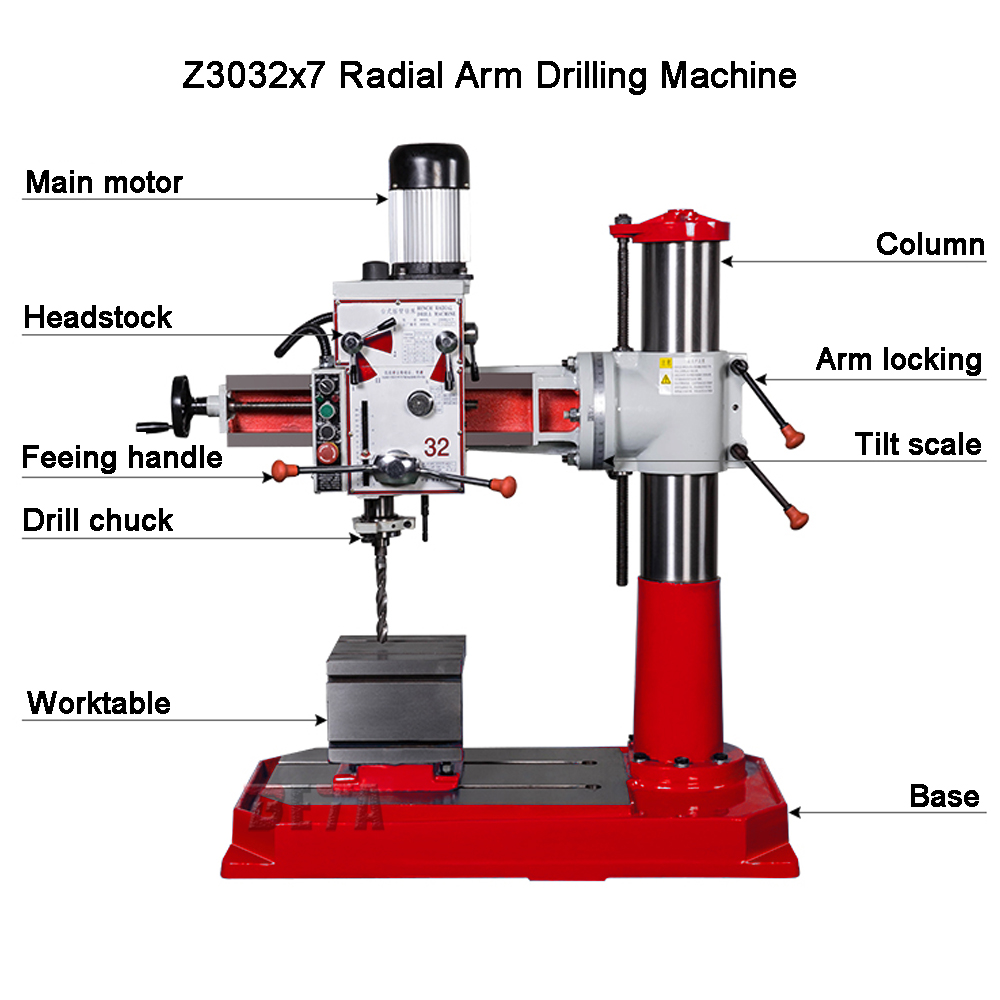

Drilling Machine
Z3032x7, Z3032x7P
Max. drilling diameter 31.5mm
Radial arm can swivel 360° and tilt ±45°
INQUIRY
  • Features
  • Specification
  • CONFIGURATION

1.The radial drilling machine of this model is designed for drilling, reaming and boring on ferrous and boring on ferrous and non ferrous metals of holes below 31.5mm in diameter.

2. It is widely used in instrument industry, machine works and repair shops for singe piece or series production.


ModelUnitZ3032x7    Z3032x7P
Max. Drilling capacitymm31.5
Max. Tapping capacitymmCast iron 20,    Steel 16
Distance spindle axis to column generating linemm300-700
Diameter of columnmm150
Taper of spindle
MT3
Spindle travelmm130
Spindle speeds ranger/min100-1600
Spindle speeds seriesstep8
Spindle feedsmm/r0.08, 0.14, 0.23,
Rotary angle of rocker in horizontal planedegree360
Max. spindle nose to basemm275--680
Dimension of worktable surfacemm250x250x250
Dimension of basemm1050x550x120, 1200x625x155
Overal sizemm1235x550x1195, 1235x625x1230
Spindle motor powerW750 or 1100
G.W/N.Wkg415/385, 540/500
Packing dimensionmm1260x650x1390/1330x750x1490


Standard accessories:

drill chuck

taper sleeve

arbor

drift

box shape worktable


Optional accessories:

vice

safety guard
