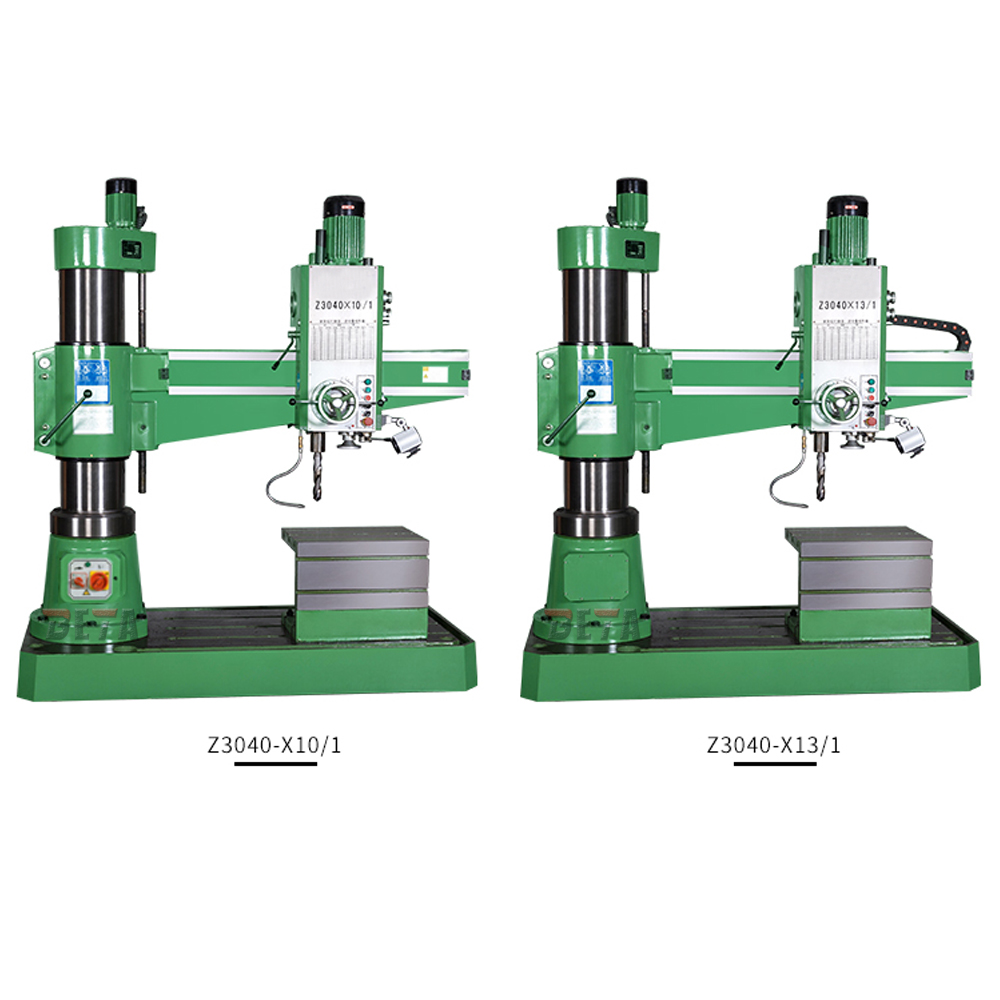

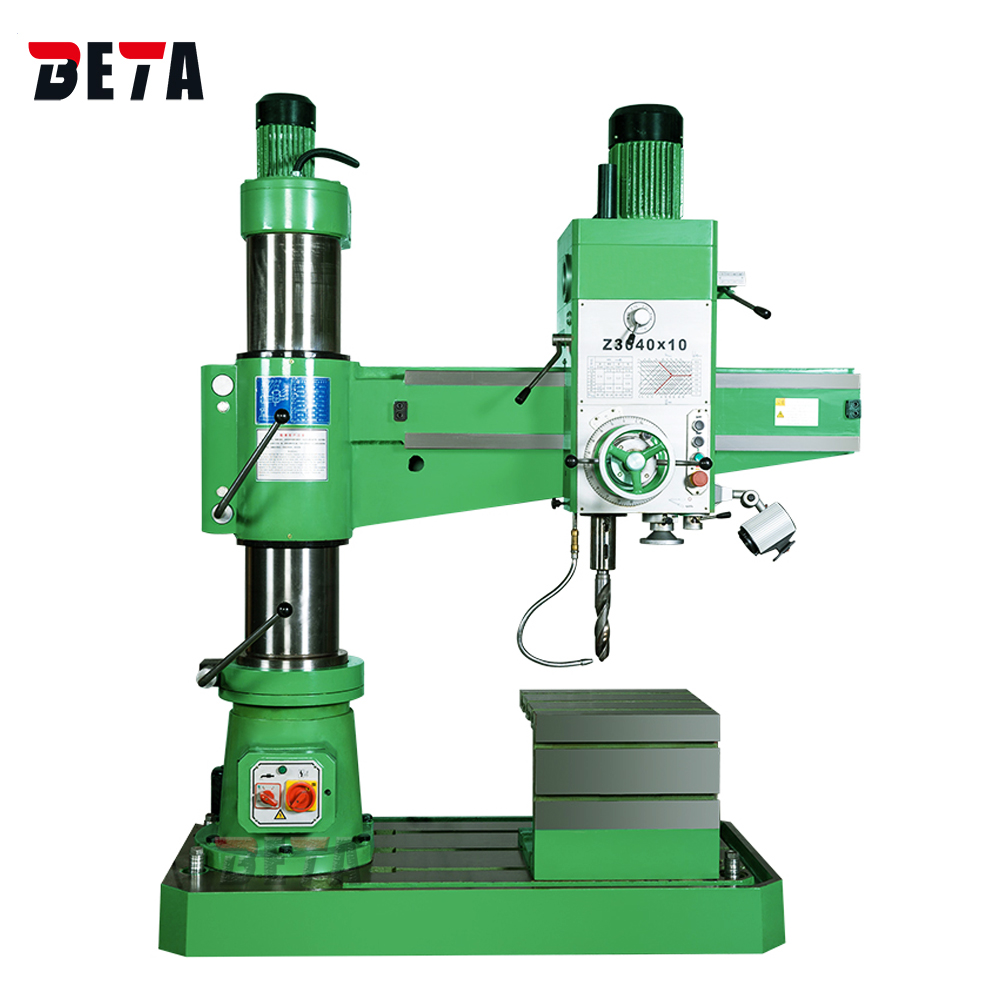

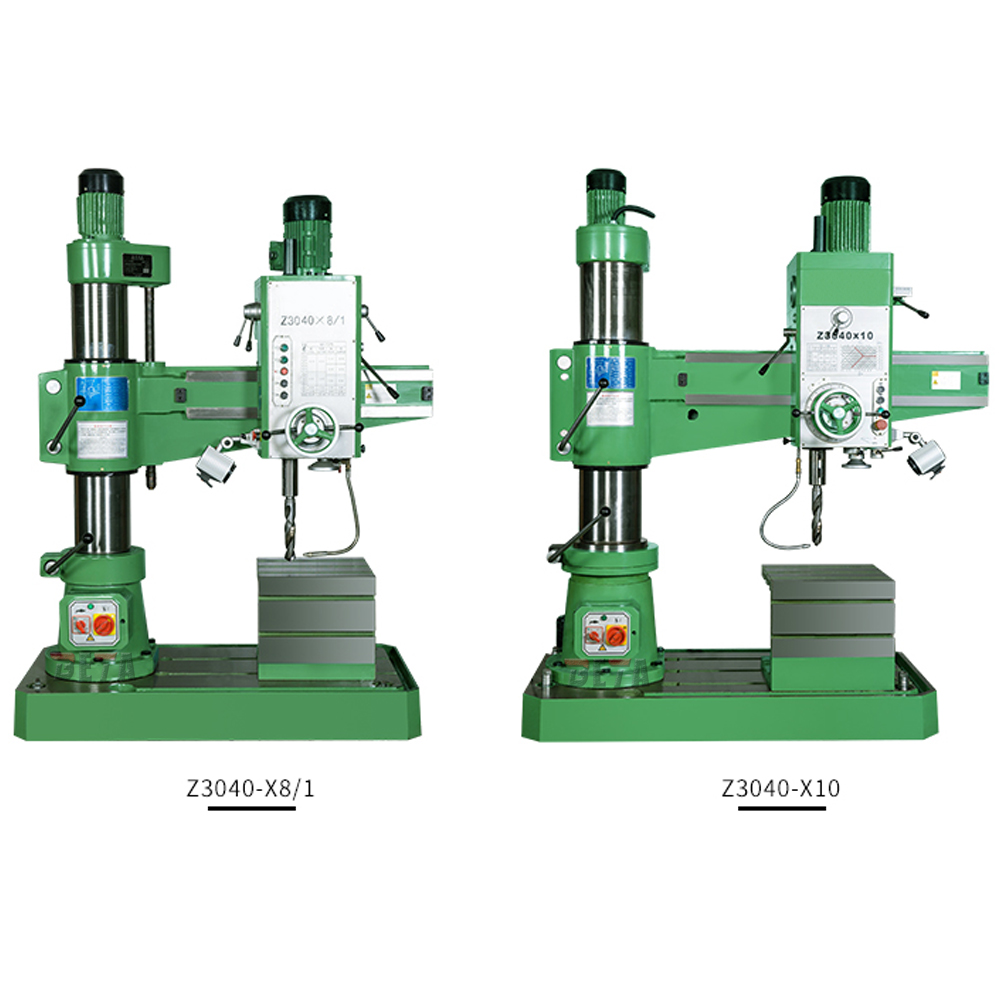

Drilling Machine
ZQ3040x10/1
Max. drilling diameter 40mm
Max. Distance spindle axis to column generating line 1020mm
  • Features
  • Specification
  • CONFIGURATION

1. With safe and reliable feed safety machine, all parts easy operation and change.

2. All controls centrealized on the headstock easy operation and change.

3. Main parts are made by machine center which import from KIA with high precision and efficiency, ensuring reliability and high quality.

4. Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of materia for basic parts.

5. Spindle parts are made by special high quality steel heat treatment to be made by first slcass equipments, ensuring high strength and durability.

6. Main gears are machined by gear grinding, the machine ensuring high precision and low noise.

7. With small appearance and much function, widely used for drilling, counter boring , tapping etc.


Model

Unit

ZQ3040x10/1

Max. Drilling capacity

mm

40

Distance spindle axis to column generating line

mm

320-1020

Diameter of column

mm

200

Taper of spindle


MT4

Spindle travel

mm

240

Spindle speeds range

r/min

75-1220

Spindle speeds series

step

6

Spindle feeds range

mm/r

0.1-0.25

Spindle feeds step

step

3

Max. spindle nose to base

mm

120-860

Dimension of worktable surface

mm

400x400x350

Dimension of base

mm

1370x700x160

Overal size

mm

1600x720x1885

Spindle motor power

W

1.5

G.W/N.W

kg

1160/1250

Packing dimension

mm

1750x770x2100


Standard accessories:

taper sleeve

arbor

drift

tool releasing wrench

box shape worktable

grease gun


Optional accessories:

quick change chuck

tapping chuck

safety guard
