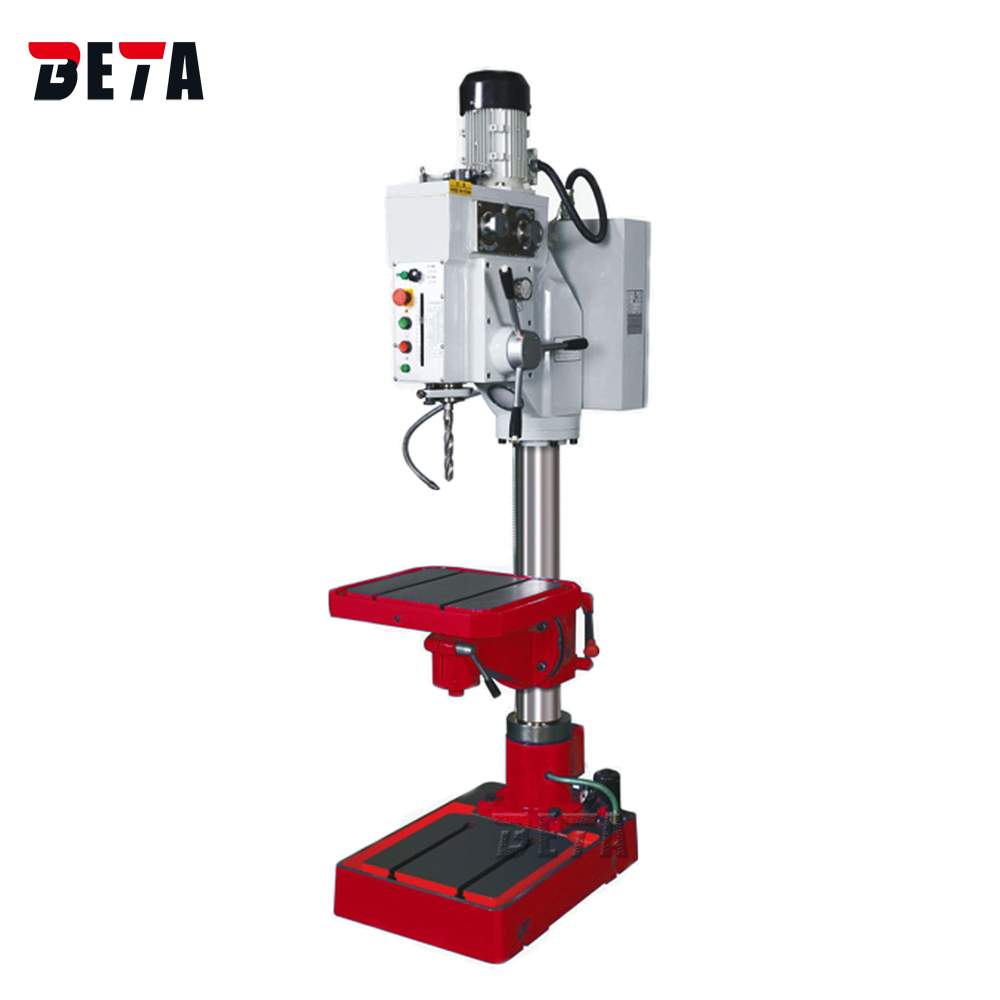

Drilling Machine

Z5030

Max. drilling diameter 30mm
Max. tapping capacity M20

Features
Specification
CONFIGURATION

1. Machine features and scope of application: novel design. nice appearance. Tight structure and wide speed range. 2. The worktable can be rotated ±180° or tilted ±45°, with a wide range of use. 3. Equipped with cooling device and tapping device. 4. The electrical system implements IEC electrical standards and has short-circuit and overload protection functions.

Model	Z5030
Max. drilling capacity (mm)	30
Max. taping capacity (mm)	M20
Dia. column	120
Distance from spindle axis to of column (mm)	320
Max. distance from spindle nose to work table surface (mm)	550
Max. distance from spindle nose to base (mm)	1100
Max. spindle travel (mm)	135
Swivel of table and table reat	±45°
Spindle bore taper (Morse)	MT3
Spindle steps	12
Spindle speed (r/min)	65-2600
Spindle feed steps	4
Spindle feed range (mm/r)	0.1, 0.2, 0.3
Dimension of worktable surface (mm)	500x440
Dimension of base table (mm)	400x390
Table travel (mm)	490
Power of Main motor (kw)	0.85/1.1
Coolant motor power (W)	40
Overall height (mm)	2050
Packing size (cm)	108x62x215
N.W./G.W. (kg)	450/495

Standard accessories:

Gear drive

Coolant pump

Two-speed motor

Drilling & Tapping function

Electrical protection device

Work light
