Hydraulic Press Machine

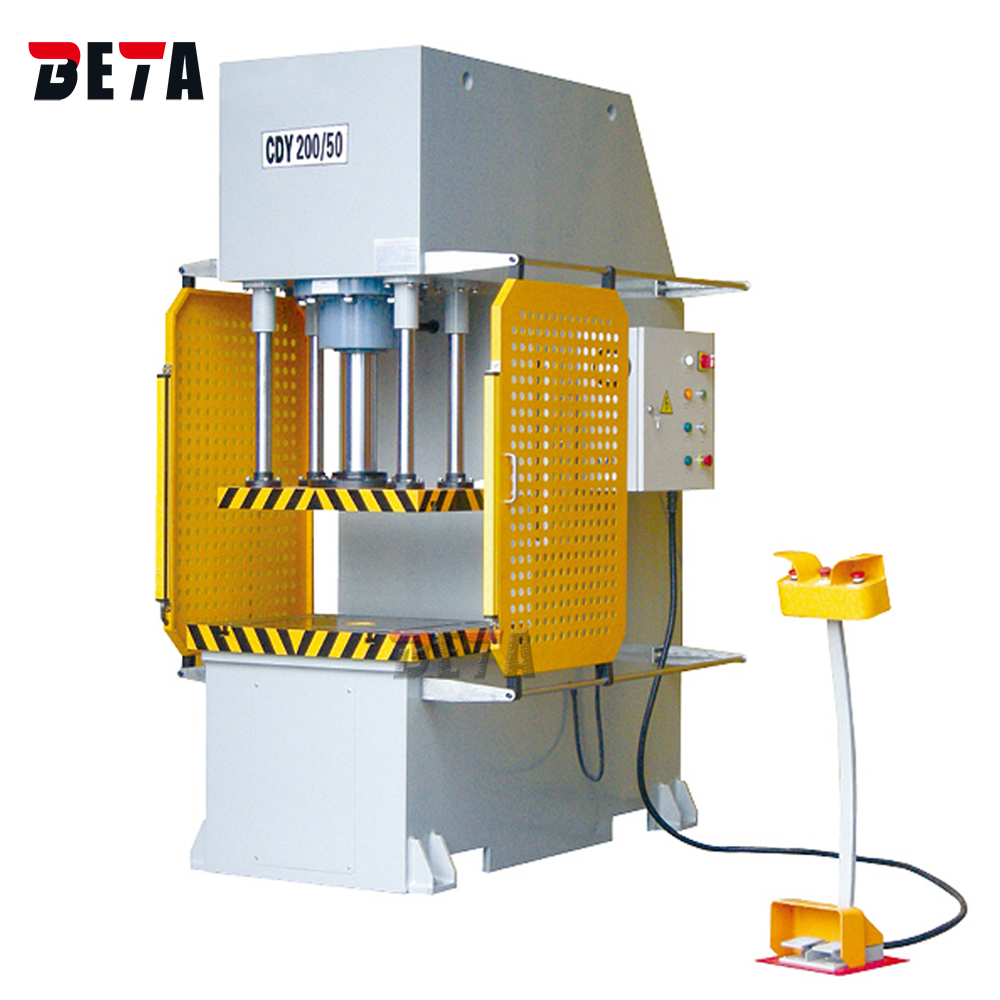

CDY200

High-grade configuration
CE standard
Safe operation
Double action cylinder

Features

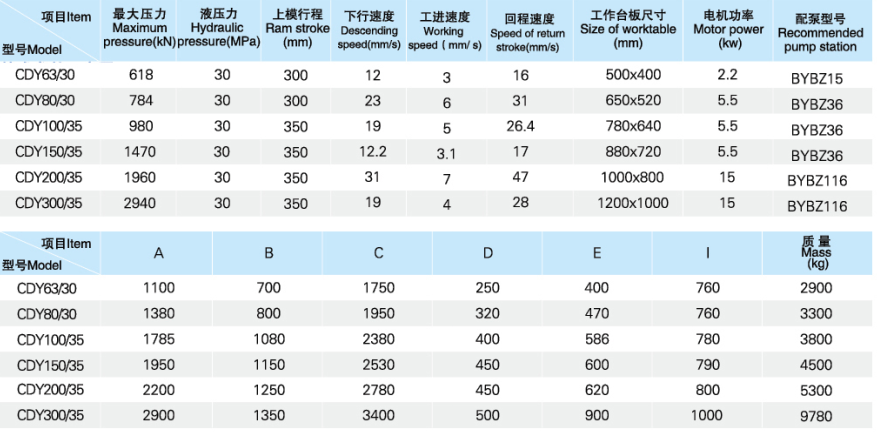

Specification
CONFIGURATION

1. It adopts a steel frame structure as a whole and a mobile protective netx. Grating protection is optional.

2. The good quality is based on exquisite manufacturing process and durable parts and components.

3. Double action cylinder, which is the original component of sound hydraulic system, can stand wear and tear.

4. Equipped with a soft starter, a two-hand-controlled footswitch and a manual stroke controller to control upward and downward movement of the piston rod, which is very safe and convenient.

5. Equipped with T-slot for both upper and lower plate to install kinds of moulds.

6. Suitable for mold forging, stretching in industrial manufacturing.

7. Can choose pillar or slideway type according to different accuracy requirements.

CDY series: implement CE standard, (high configuration. pillar type)

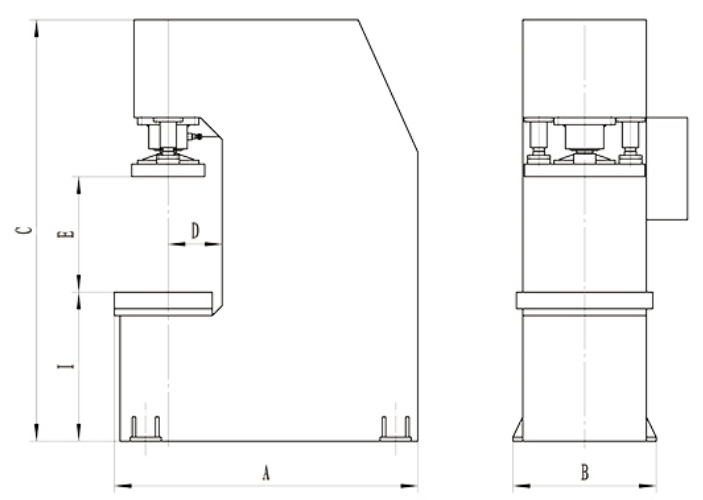

1. Frame: CDY10-CDY300 fully enclosed plate structure, the parallelism between the mounting surface of the frame oil cylinder and the surface of the worktable is controlled within 0.3mm.

2. CDY10-CDY63 is equipped with 1-2 guide posts, CDY100-CDY300 is equipped with 2-4 guide posts, the upper template and the lower worktable are all equipped with T-slots, The left and right sides are equipped with front and rear movable safety protection doors.

3. Cylinder: fine boring and grinding of the cylinder body, A-grade seals, and 0.05mm chromium-plated layer on the piston rod.

4. Hydraulic pump station: Siemens motor, Shanggao oil pump, self-made machine pump frame, coupling.

Rexroth joint venture brand manual reversing valve, electromagnetic reversing valve, overflow valve, fine grinding integrated plate, with ￠100 shock-resistant pressure gauge.

5. Electrical box: power off when opening the door, 24V low voltage control, Schneider electrical components, surface-mounted input socket, CDY30-CDY63 with foot switch, CDY100-CDY300 with movable two-hand control foot switch.

6. Equipped with proximity switch, stroke adjuster, control piston rod up and down running distance.

7. Random distribution: ①Proximity switch adjustment wrench; ②Pumping station, pipe joint seals.

CDY series: implement CE standard, (high configuration. slideway type)

1. Frame: CDY10-CDY300 fully enclosed plate structure, the parallelism between the mounting surface of the frame oil cylinder and the plate surface of the worktable is controlled within 0.1mm;

2. CDY10-CDY300 is installed on the left and right sides of the upper and lower rails, and the upper template is installed on both sides

There is a sliding block and an oil injection pump is installed for the lubrication of the sliding rail;

The rest is the same as above.
