MDY150-Hydraulic Press Machine-TENGZHOU BETA CO.,LTD.

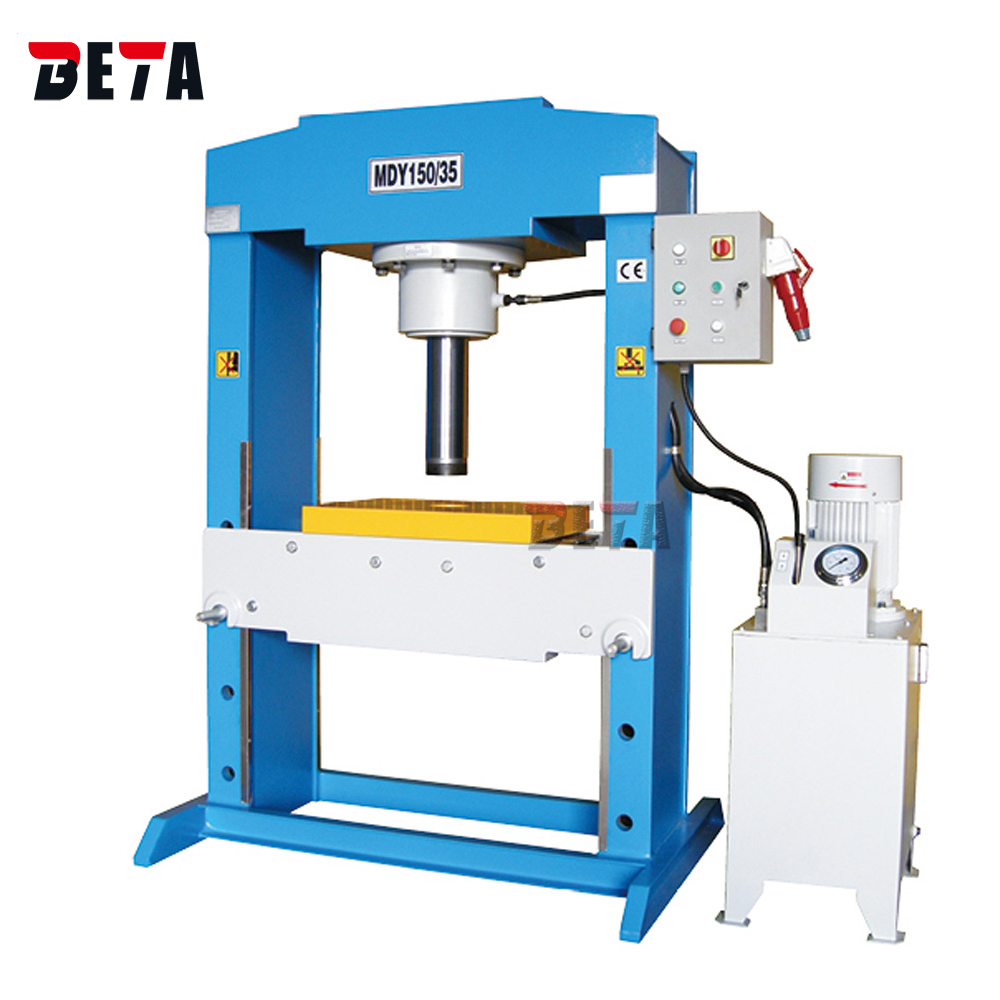

Hydraulic Press Machine

MDY150

High-grade configuration
CE standard
Safe operation
Long service life

Features

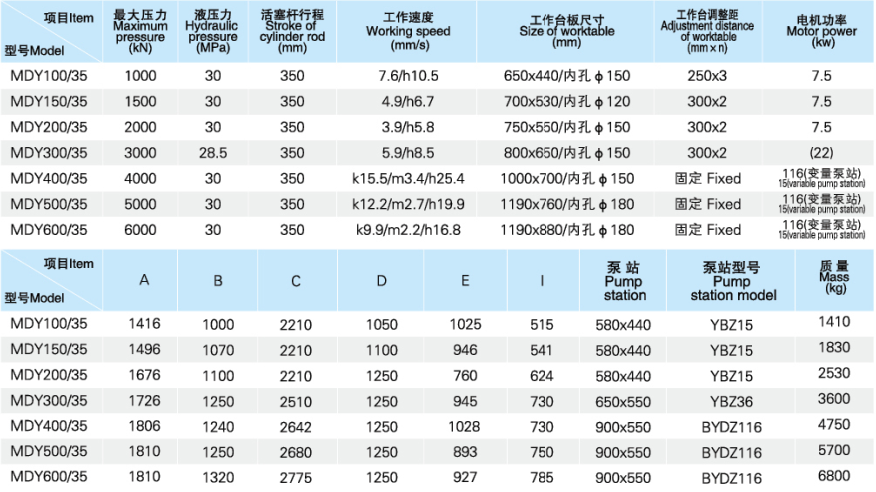

Specification
CONFIGURATION

1. It adopts an elaborated steel frame structure, a column with a work bench beam, a sliding rail and a rear protective net.

2. The good quality of the products is based on exquisite manufacturing process and durable parts and components.

3. Double action cylinder with famous brand hydraulic systems components.

4. Equipped with a soft starter and a manual stroke controller to control upward and downward movement of the piston rod, safe and convenient.

5. The worktable is equipped with a set of specialized sling and sliding rail, which is labor saving, safe and convenient.

6. Suitable for general mechanical parts assembling and disassembling.

1. Frame: MDY30-MDY80 frame structure, MDY100-MDY1000 fully enclosed side panels.

Equipped with anti-scratch paint stainless steel corner strips, stainless steel corner strips specifications, according to the thickness of the sheet material used for each frame column. The parallelism of the upper and lower beams of the frame is controlled within 0.4mm.

2. Cylinder: precision boring and grinding of the cylinder body, A-grade seals, and piston rod with a 0.05mm chromium plating layer.

3. Hydraulic pump station: Siemens motor, brand oil pump, self-made machine pump frame, coupling.

Rexroth brand manual reversing valve, overflow valve, fine grinding integrated plate, using ￠100 shock-resistant pressure gauge, equipped with valve plate protective cover.

4. Electrical box: power off when opening the door, 24V low voltage control, Schneider electrical components, surface installation Input socket.

5. Accessories:

One piece of rear safety net with protective side,

4 pieces of fixed mesh screw,

One set of lifting sling for workbench beam,

One piece of workbench plate,

2 pieces of V-shaped iron,

The wearing parts are equipped with pumping station and pipe joint seals.
