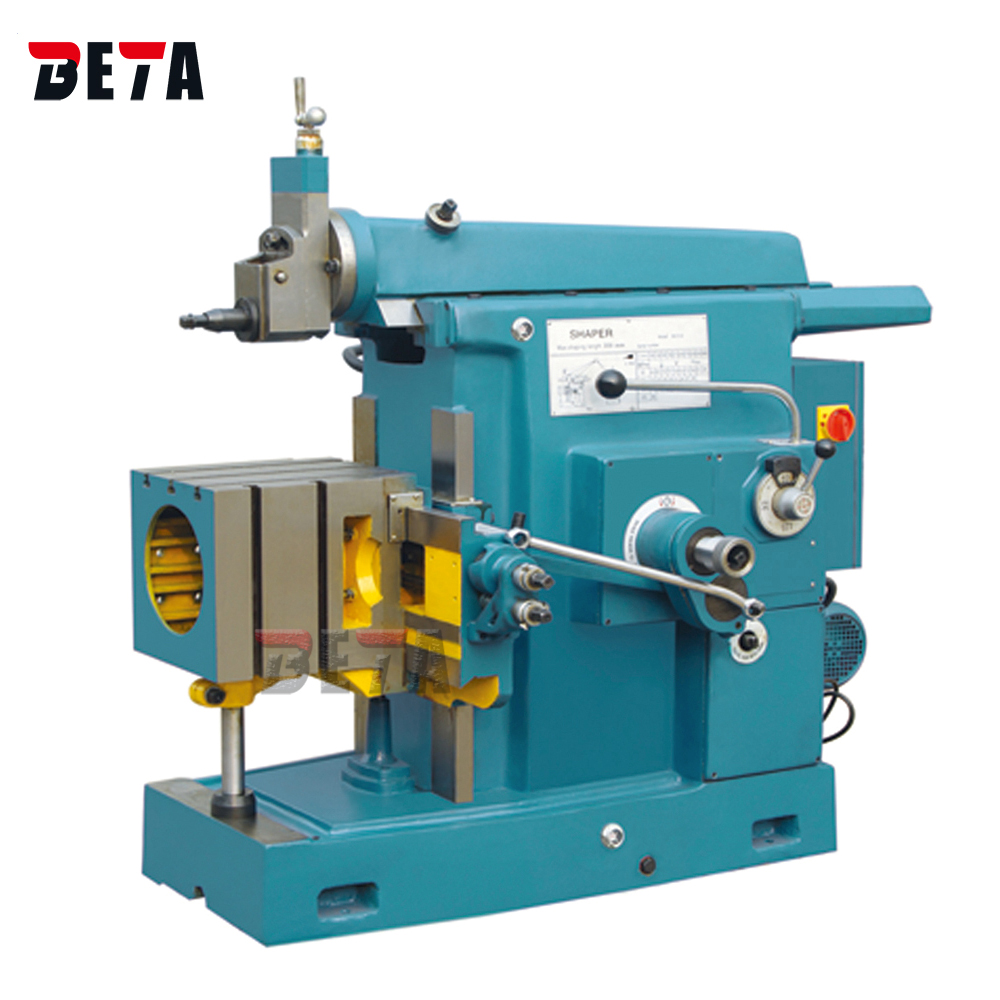

Shaping & Slotting Machine
B635A
INQUIRY
  • Features
  • Specification
  • CONFIGURATION
ModelB635A
Maximum Planing Length350mm
Maximum Travel from the bottom of ram to Worktable330mm
Maximum travel of worktable（horizontal）400mm
Maximum travel of worktable(vertical)270mm
The maximum distance from shaper body to  its leading surface 550mm
The maximum displacement of ram170mm
Maximum turning angle of worktable( no vice）±900
The max rotatory angle of worktable（vice）±550
The max vertical travel of blade frame110mm
The reciprocating times per minute32, 50, 80, 125, times min
The ram back and forth a table feed amount Wheel a gear （Vertical）0.18mm
Wheel a gear （Horizontal）0.21mm
Wheel four gears （Vertical）0.73mm
Wheel four gears （Horizontal）0.84mm
Electric Motor1.5kw  1400r/min
Carton Size1530*930*1370mm
NW/GW kg1000kg/1200kg
