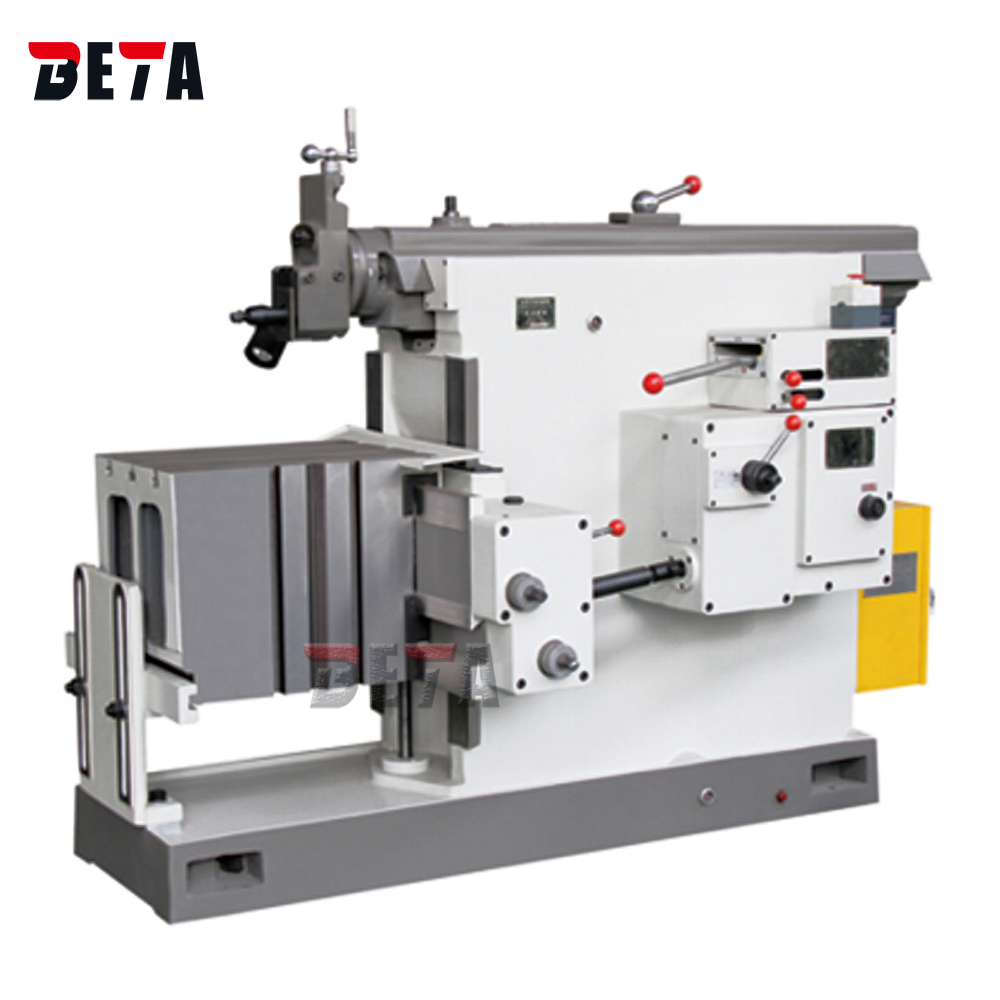

Shaping & Slotting Machine
B6063
INQUIRY
  • Features
  • Specification
  • CONFIGURATION
ModelB6050B6063
Maximum cutting length(mm)500630
Max.range of the horizontal movement of the table500630
Max.distance between the ram bottom and table370385
Max.length of the vertical movement of table270360
Dimensions of table top(L×W) 440×360630X400
Max.stroke length of the toolhead120120
 Max.swivel angle of the  toolhead ±60°±60°
 Max.section of tool(W×T)(mm) 20×3020×30
Number of ram reciprocation per minute 14-8014-80
Range of table feed:horizontal 0.2-0.25  0.08-1.000.4-5.0
Vertical0.08-1.00
Width of the T-slot for center positioning(mm)1818
Power of the main motor33
N.W/G.W(kg) 1650/17601750/1870
Overall dimensions(L×W×H)(mm)2160×1070×11942342×1225×1480
