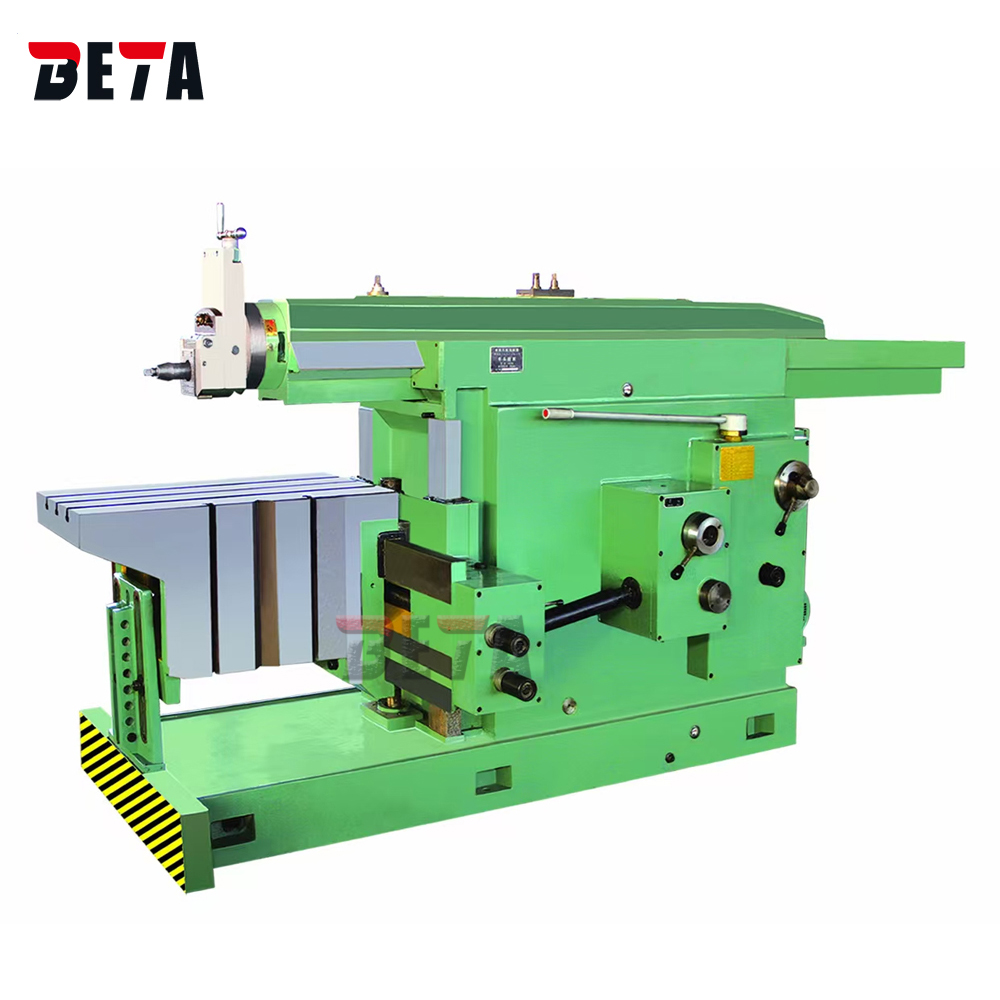

WhatsApp: +8618266249928WhatsApp: +8618266249928| Model | B6085 | B60100 | ||
| Maximum cutting length(mm) | 850 | 1000 | ||
| Maximum table horizontal travel(mm) | 400 | 800 | ||
| Maximum distance from ram bottom to table surface(mm) | 710 | 400 | ||
| Maximum table vertical travel(mm) | 360 | 380 | ||
| Dimensions of table top surface(L×W)(mm) | 800X450 | 1000×500 | ||
| T ravel of tool head(mm) | 160 | 160 | ||
| Swivel of tool head(°) | ±60° | ±60° | ||
| Maximum size of tool shank (W×T)(mm) | / | 30×45 | ||
| Number of ram strokes per minute | 17、24、35、50、70、100 | 15、20、29、42、58、83 | ||
| Range of table power feed | horizontal | 0.25~3 | horizontalvertical | 0.3~3 |
| vertical | 0.12~1.5 | 0.15~0.5 | ||
| Rapid feed of table | horizontel(mm/min) | 3 | horizontalvertical | 3 |
| vertical (mm/min) | 1.5 | 0.5 | ||
| Width of central T-slot of table(mm) | 22 | 22 | ||
| Power of motor(kw) | 5.5 | 7.5 | ||
| Overall dimensions (L×W×H)(mm) | 2950x1325x1693 | 3640×1575×1780 | ||
| Weight(kg) | 2940/3090 | 4600/4800 | ||
