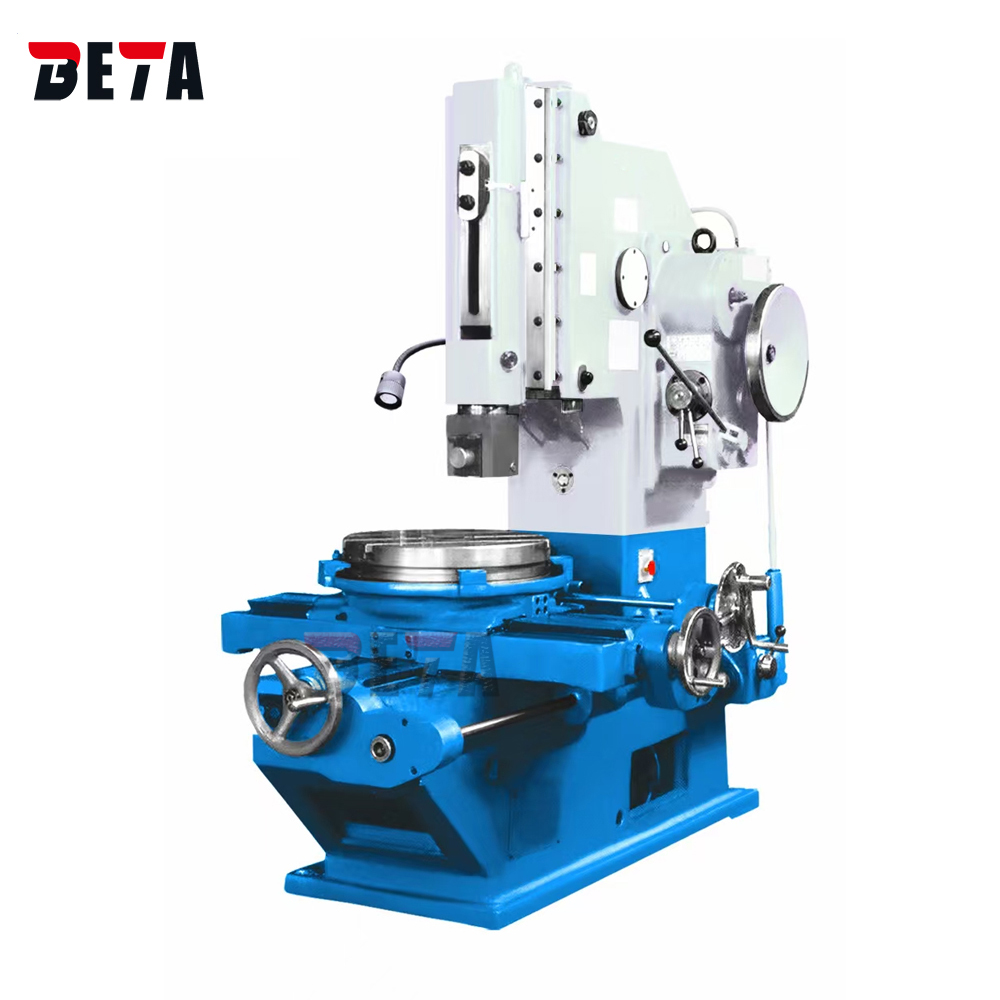

Shaping & Slotting Machine
BC5020
INQUIRY
  • Features
  • Specification
  • CONFIGURATION
MODELBC5020
Ram stroke220mm
Max.length of the ram slotting200mm
Ram movement frequency32,50,80,125 times/min
Tilt angle0-8°
Table diameter500mm
Vertical adjustment of ram distance230mm
Head bearing surface to the bed from the front wall485mm
Distance between work surface to the sliding frame320mm
Max.longitudinal moving distance of work table500mm
Max.transverse moving distance of work table500mm
Table max.rotation angle360°
Vertical and horizontal table power feed range0.08-1.21mm
Table rotary feed range0.052-0.783mm
Motor power3kw
Motor speed1430 rpm
 Machine weight2200 kgs
Overall dimension1916*1305*1995mm
