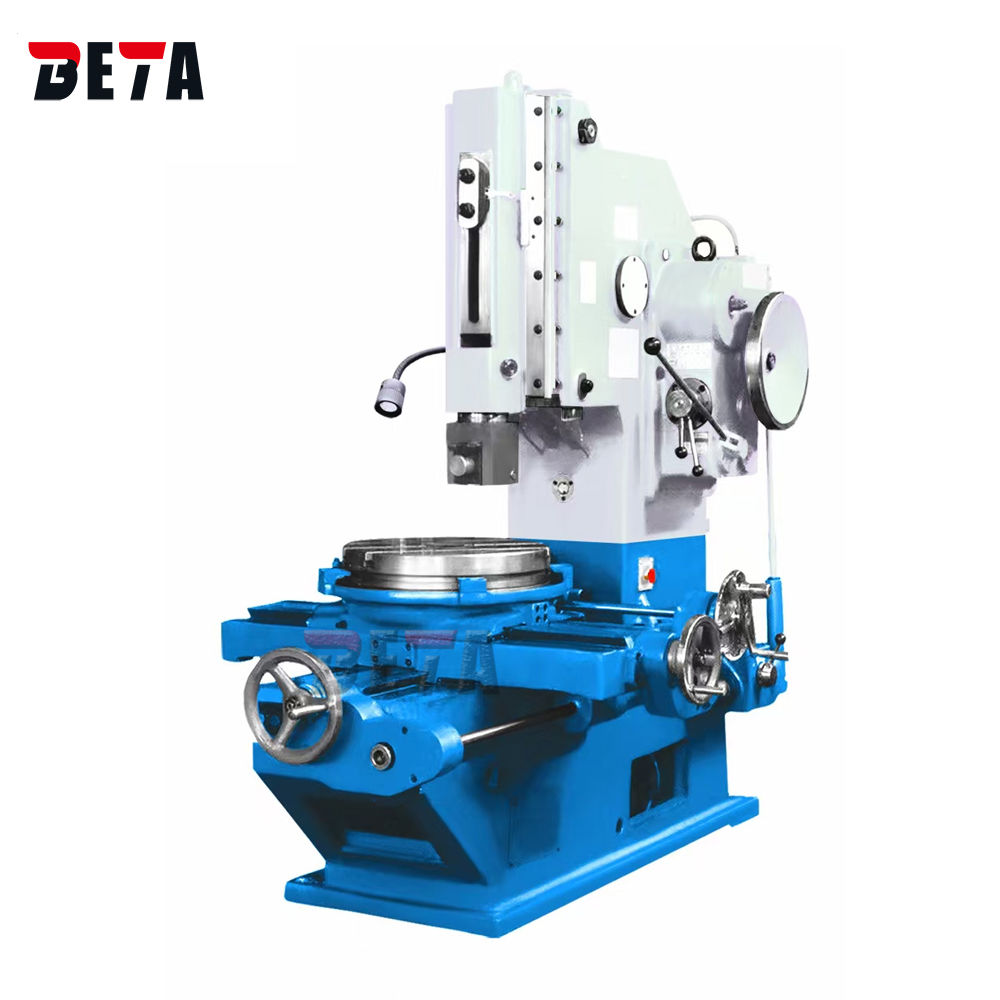

Shaping & Slotting Machine
BC5032
INQUIRY
  • Features
  • Specification
  • CONFIGURATION
MODELBC5032
Ram stroke340mm
Max.length of the ram slotting320mm
Ram movement frequency20,32,50,80 times/min
Tilt angle0-8°
Table diameter630mm
Vertical adjustment of ram distance315mm
Head bearing surface to the bed from the front wall600mm
Distance between work surface to the sliding frame490mm
Max.longitudinal moving distance of work table630mm
Max.transverse moving distance of work table560mm
Table max.rotation angle360°
Vertical and horizontal table power feed range0.08-1.21mm
Table rotary feed range0.052-0.783mm
Motor power4kw
Motor speed960 rpm
 Machine weight3000 kgs
Overall dimension2261*1495*2245mm
