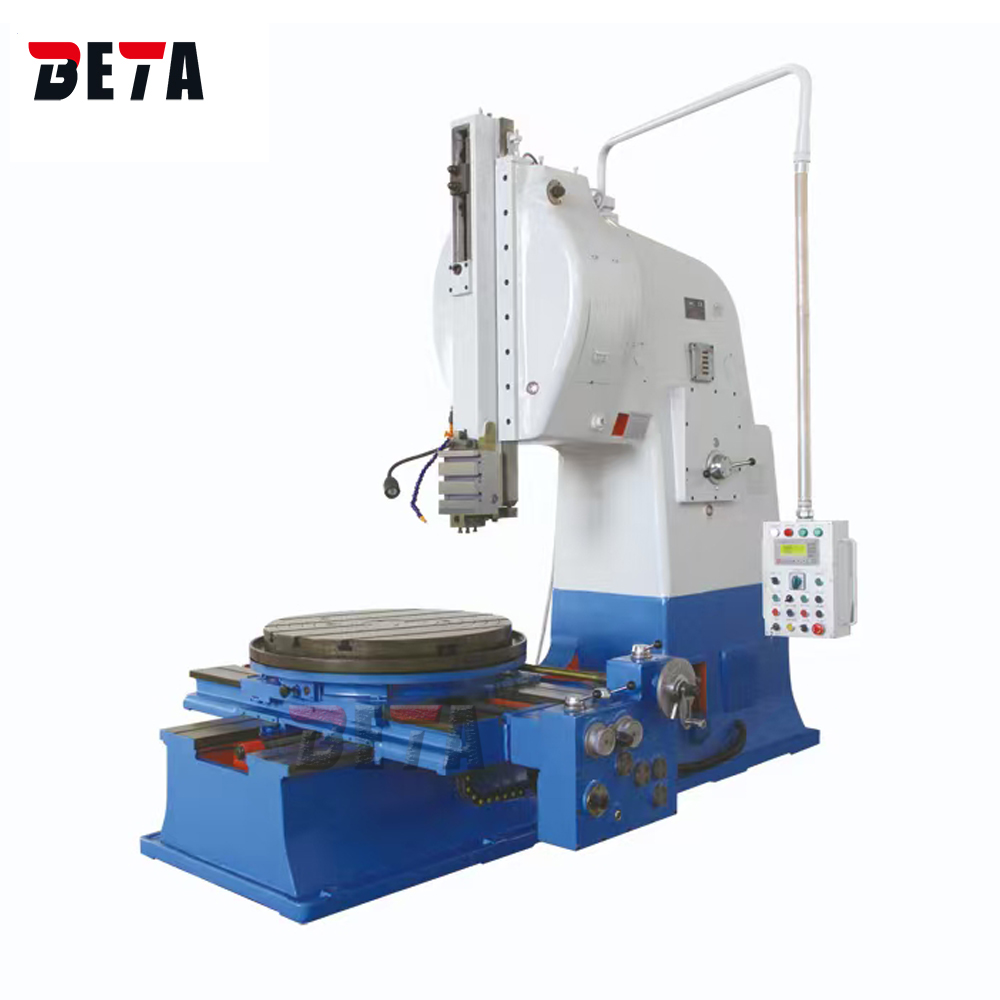

Shaping & Slotting Machine
BC5050
INQUIRY
  • Features
  • Specification
  • CONFIGURATION
SpecificationBC5050
Maximum cutting length(inserted hole 450 mm)500mm
Table diameter1000mm
Worktable maximum longitudinal movement distance660m
Worktable maximum lateral movement distance1000mm
Workbench maximum load2000kq
Distance from work surface to the lower end of the carriage740nm
Distance from the tool support surface to the front wall of the bedgomm
Ram adjustment distance430mm
Ram tilt angle(left and right direction)10deg
Number of ram reciprocations(minutes)9,12.5,18,25,36,50
Worktable vertical and horizontal maneuvering eed rate map(m meter am reciprocating once0.1, 0.2, 0.3, 0.4, 0.6, 1.2
Working and tuming maneuvering feed range(slipping once)3'6'9’12’18'36
Maximum cutting force16000N
Main drive electric machine7.5kw1440r.p.m
Feed servo motor4.0kw
Cooling pump motor0.125kw2800r.p.m
Machine weight10.3T
Machine contour(length x width x height)3480×2085×3307m
Split package size3680/2260/1200
2250/1100/2250mm
