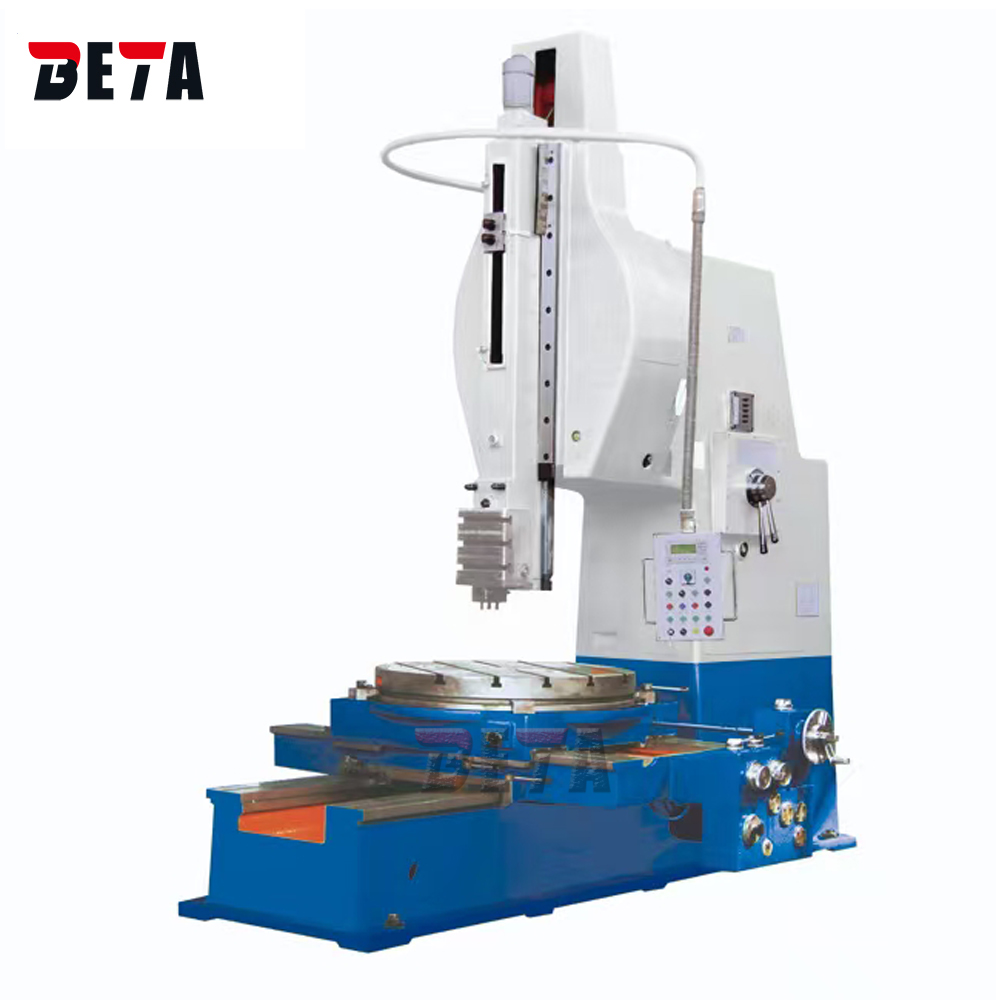

WhatsApp: +8618266249928WhatsApp: +8618266249928| Item | Unit | BC5063 |
| Max.slotting length(530mm for internal slotting) | mm | 630 |
| Max. weight of workpiece | kg | 2000 |
| Max. cutting force | N | 20000 |
| No. of ram strokes per minute | times | 8,12,20,30 |
| Tilting angle of ram | deg | ±10° |
| T slot width | mm | 22H11 |
| Table diameter | mm | 1120 |
| Distance between tool bloding surface and cloumn front | mm | 1120 |
| Distance between table surface and low end of slide | mm | 800 |
| Max. longitudinal travel of table | mm | 1000 |
| Max. cross travel of table | mm | 700 |
| Range of table olngitudinal and cross power feeds | mm/time | 0.10,0.20,0.32,0.54,0.80,1.30 |
| Range of table rotary power feeds | 3',6',9'36'',16'12'',24',39' | |
| Power of main drive motor | kw | 11 |
| Power of feeding motor | kw | 4 |
| Ram position adjustment motor | kw | 0.55 |
| Overall dimensions(L×W×H) | mm | 3580×2390×3660 |
| Weight | kg | 11000 |
