Shaping & Slotting Machine

BK5040

Max. slotting length 400mm
CNC automatic slotting

Features
Specification
CONFIGURATION

1. The working table of the machine tool is provided with three different directions of feed (longitudinal, horizontal and rotary), therefore work object go through once clamping, Several surfaces in the machine tool machining,

2. Hydraulic transmission mechanism with sliding pillow reciprocating motion and hydraulic feed device for working table.

3. The sliding pillow has the same speed in every stroke, and the movement speed of the ram and the working table can be adjusted continuously.

4. Hydraulic control table have ram commutation oil for oil reversing mechanism, In addition to hydraulic and manual feed outer,Even there single motor drive vertical, horizontal and rotary fast moving.

5. Use hydraulic feed the slotting machine, Is when the work is over turning back instantaneous feed, Therefore be better than mechanical slotting machine used drum wheel feed.

This machine be used for interpolation plane, forming surface and Keyway etc. And can insert the inclination in the 10° Mold and other within the scope of etc. work matter,Enterprise suitable for single or small batch production.

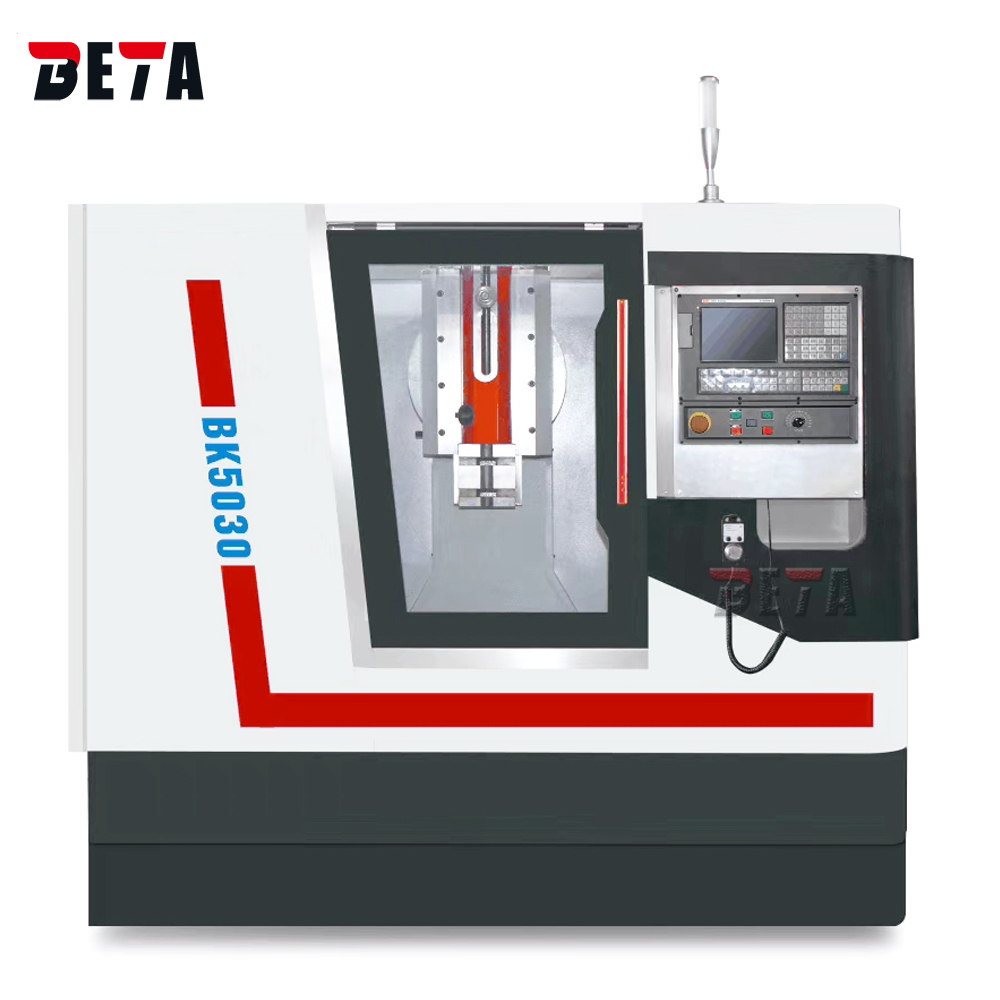

Model	Unit	BK5030	BK5040
Ram maximum slotting length	mm	300	400
Ram stroke adjustment	mm	300	220
Ram movenent times	N/min	20-180	80-80
Work table size	mm	550x405	900x610
Trael of table(X,Y)	mm	280x330	500x600
The knife head suppoting hole axis to column forarm distance	mm	505	770
The knife head supporting hole end to Table working distance	mm	540	830
X to the motor torque	N.M	6	10
Y to the motor torque	N.M	6	15
Fast moving	X(m/min)	5	5
Fast moving	Y(m/min)	5	5
Ball screw X		FFZD3205-3/P4	FFZD3205-3/P4
Ball screw Y		FFZD3205-3/P4	FFZD3205-3/P4
The main motor power	kw	3.7	5.5
Machine weight	kg	2800	5000

Standard configuration:

KND 3 axis CNC controller

Automatic slotting, auto feed and auto retract tools.

X/Y axis are autoamtic positioned, multiple slots can be completed at once in the same plane.

Optional accessories:

GSK, Siemens, FANUC CNC controller

CNC dividing head

CNC rotary table
