Shaping & Slotting Machine

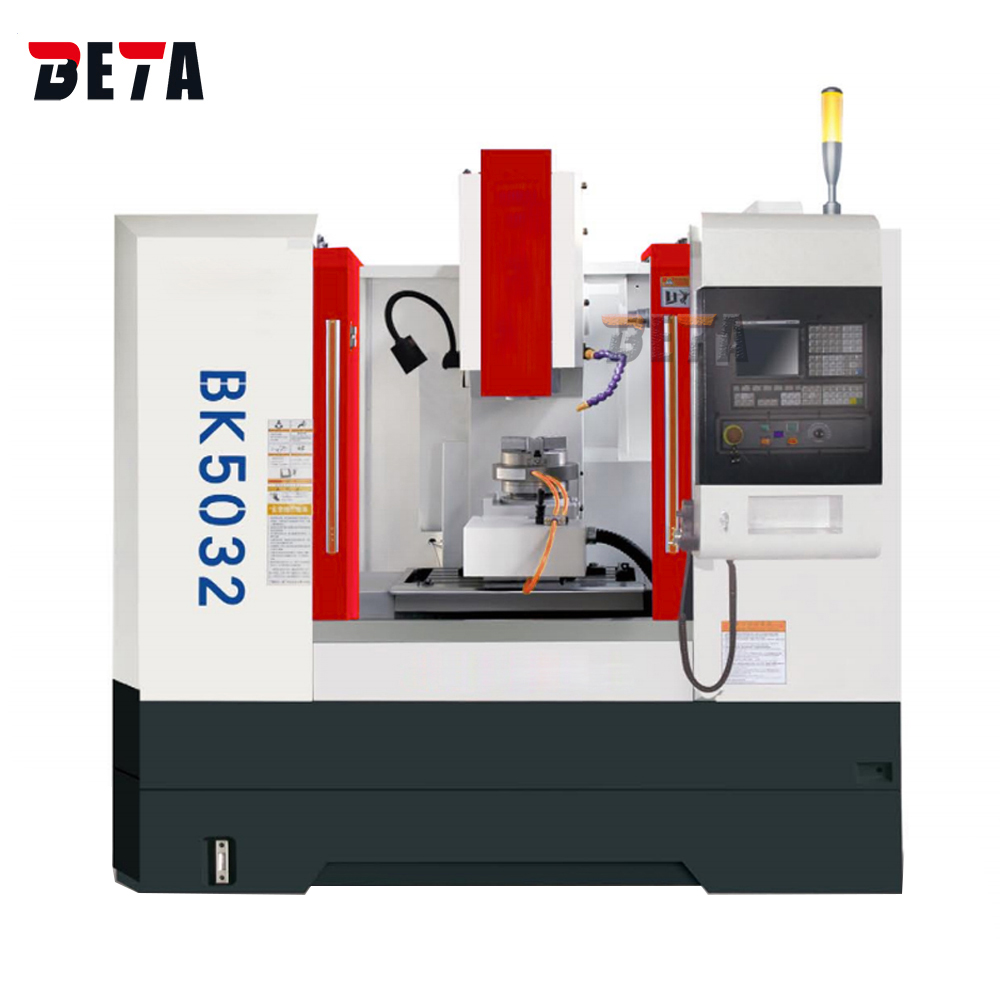

BK5032

Max. slotting length 320mm
CNC automatic slotting

Features
Specification
CONFIGURATION

1. The working table of the machine tool is provided with three different directions of feed (longitudinal, horizontal and rotary), therefore work object go through once clamping, Several surfaces in the machine tool machining,

2. Hydraulic transmission mechanism with sliding pillow reciprocating motion and hydraulic feed device for working table.

3. The sliding pillow has the same speed in every stroke, and the movement speed of the ram and the working table can be adjusted continuously.

4. Hydraulic control table have ram commutation oil for oil reversing mechanism, In addition to hydraulic and manual feed outer,Even there single motor drive vertical, horizontal and rotary fast moving.

5. Use hydraulic feed the slotting machine, Is when the work is over turning back instantaneous feed, Therefore be better than mechanical slotting machine used drum wheel feed.

This machine be used for interpolation plane, forming surface and Keyway etc. And can insert the inclination in the 10° Mold and other within the scope of etc. work matter,Enterprise suitable for single or small batch production.

Model	unit	BK5032
Control system		KND 1000 M
Max cutting length	mm	320
The maximum longitudinal movement distance of worktable is X axis	mm	560
The maximum longitudinal movement distance of worktable is Y axis	mm	540
Maximum rotation angle of worktable	mm	360
Maximum cutting force	KN	8
Distance between cutter support surface and front wall of bed	mm	600
Worktable diameter	mm	Φ 600
Slide angle of the ram	°	0-8
Vertical adjustment of the ram distance	mm	370
Distance between worktable and lower end of carriage	mm	470
Worktable maximum load	KG	500
T-slot width of the center of the table	Mm	18HB
Main motor power	Kw	3
The main motor speed	r/min	960
Machine weight	kg	270
Dimensions	mm	200015002400

Standard configuration:

KND 3 axis CNC controller

Automatic slotting, auto feed and auto retract tools.

X/Y axis are autoamtic positioned, multiple slots can be completed at once in the same plane.

Optional accessories:

GSK, Siemens, FANUC CNC controller

CNC dividing head

CNC rotary table
