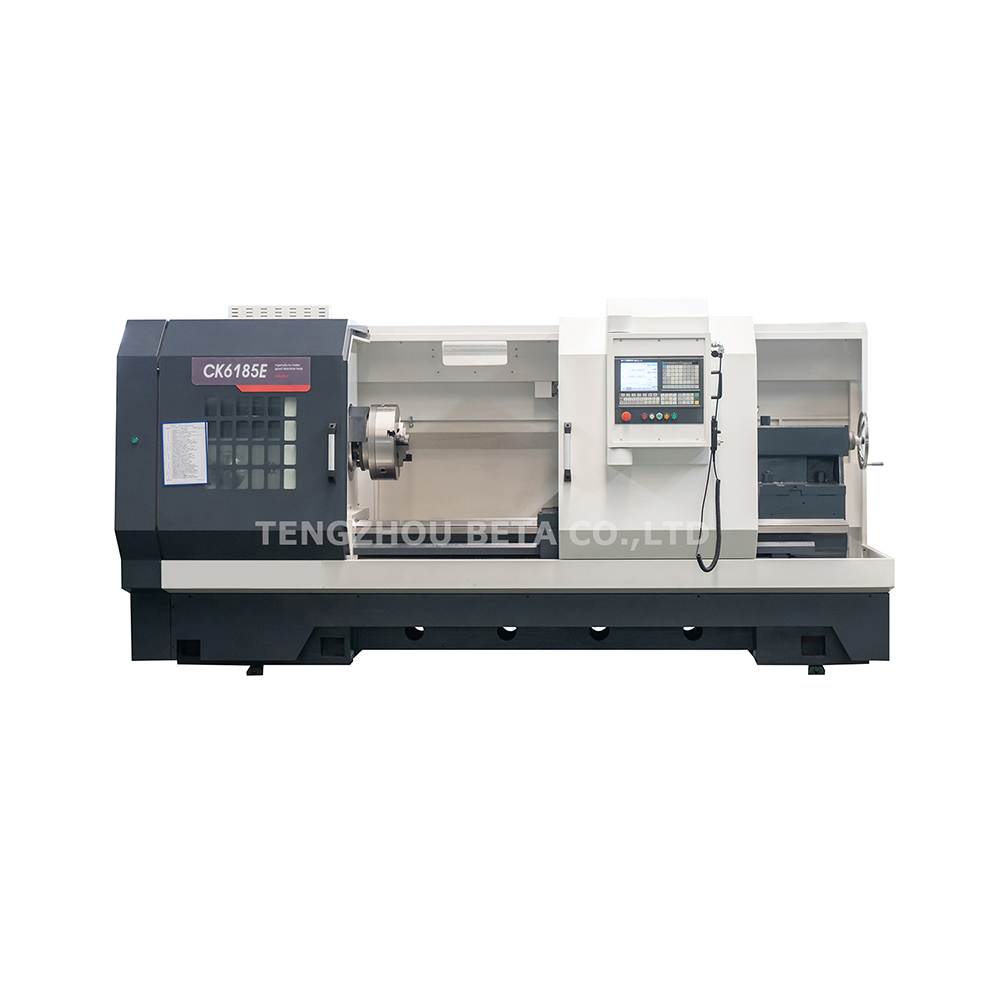

Flat bed CNC lathe

CK6185

Flat bed CNC lathe with hardened guideway
Max. swing over bed 850mm
Spindle bore 105mm
Distance between centers 1000/1500/2000/3000mm
GSK, Siemens, FANUC CNC controller for choice

INQUIRY

Features
Specification
CONFIGURATION

1. Higher stability one-piece machine stand.

2. 3-gear spindle speed, stepless in gear.

3. Higher rigidity pedestal.

4. Wider layer board.

5. Integrated automatic lubrication system.

6. Width of guideway 600mm.

Model	CK6185
Max. swing over bed	Φ850 mm
Max. swing over cross slide	Φ480 mm
Max. processing length	1000/1500/2000/3000 mm
Spindle bore	Φ105 mm
Spindle taper	Metric 120/1:20
Spindle nose	C11
Spindle speed	25-850rpm stepless
Spindle motor power	11 kw
X/Z axis travel	450mm, 1100/1600/2100/3100 mm
X/Z axis torque	10/15 N.m
X/Z axis rapid feeding speed	4/5 m/min
X/Z axis position accuracy	0.005 mm
X/Z axis repeatability	0.005 mm
Tool bar section	32*32 mm
Tailstock sleeve dia.	Φ100 mm
Tailstock sleeve travel	250 mm
Tailstock taper	MT6
N.W.	4100/4700/5400 kg
Machine dimension	3500/4000/450020002000mm

Standard configuration:

GSK980TDC CNC controller,

400mm manual 3-jaw chuck,

manual tailstock,

4-position electric toolpost,

stepless spindle speed,

11kw spindle inverter motor,

automatic coolant system,

automatic lubrication system,

Semi-enclosed protective cover,

Tools & tool box

Optional configuration:

Hydraulic 3-jaw chuck

Hydraulic tailstock

Siemens 808D/FANUC CNC controller
