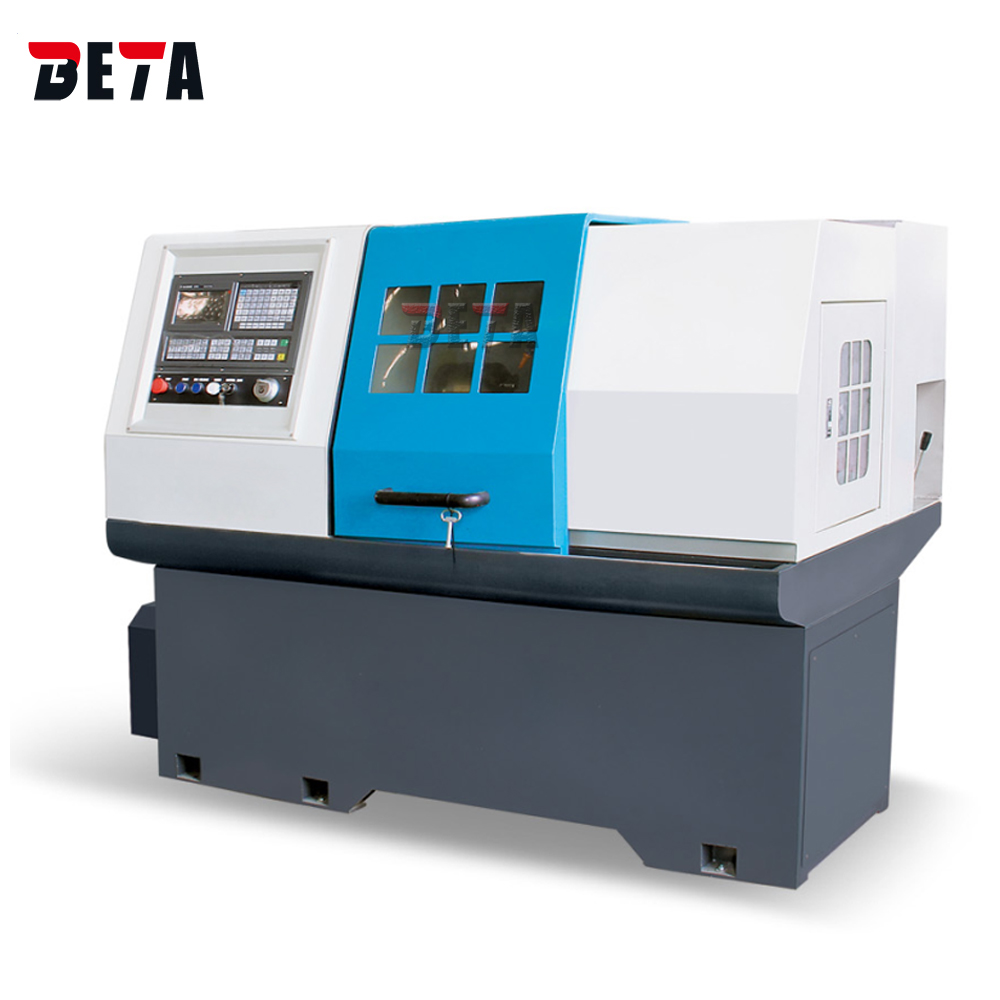

Flat bed CNC lathe

CK6132

Max.swing over bed 320mm
Distance between centers 500/750/1000mm for choice
Spindle bore 38mm
Flat bed CNC lathe

Features
Specification
CONFIGURATION

Features:

1. The machine can process precisely internal or external diameter, end face, taper, arc and threading with high efficiency.

2. Standard toolpost is 4-stations, also 6-station turret can be equipped as optional accessories.

3. Spindle speed changed by frequency.

4. Induction harden bed-way. Bed saddle with plastic sticker can improve the accuracy and service lift of the machine.

5. The spindle is supported by imported precision bearings.

6. Standard with manual 3-jaw chuck 6" diameter, according to customer's optional selection, hydraulic chuck and pneumatic chuck also can be supplied.

MODEL	CK6132
Distance between centers(mm)	500/750/1000
Swing over bed(mm)	Φ320
Swing over camiage(mm)	Φ130
Taper of barrel	M.T.5
Chuck size	Φ160
Way of chuck locking	Manual
Spindle nose	D5
Spindle bore(mm)	Φ38
Range of speed(variable)(r/min)	60-2500
Feed motor power(X/Z)（N.M）	4/6
X rapid traverse(m/min)	5
Z rapid traverse(m/min)	5
Max. travel of X axis(mm)	160
Max. travel of Z axis(mm)	400/650/900
Motor power(kW)	3
Tool-post	4
Max.tool size(mm)	20x20, 16x16
Min input unit(mm)	0.001
repeatability accuracy(X/Y)(mm)	0.016
Barrel travel of tailstock(mm)	150
Barrel taper of tailstock	M.T.3
Packing size（L×W×H）	1850x1100x1650
	1900x1100x1650
	2300x1100x1650
N.W/G.(kg)	800/900/1000

Standard accessories:

GSK CNC controller,

Spindle inverter motor 3kw,

X/Z axis servo motor driver,

Belt directly connected spindle,

Variable spindle speed 2500rpm,

6" manual 3-jaw chuck,

4-station electric toolpost,

Manual tailstock,

Lubrication system,

Cooling system,

Work light,

Signal light,

Steel stand,

Tools & accessories box
