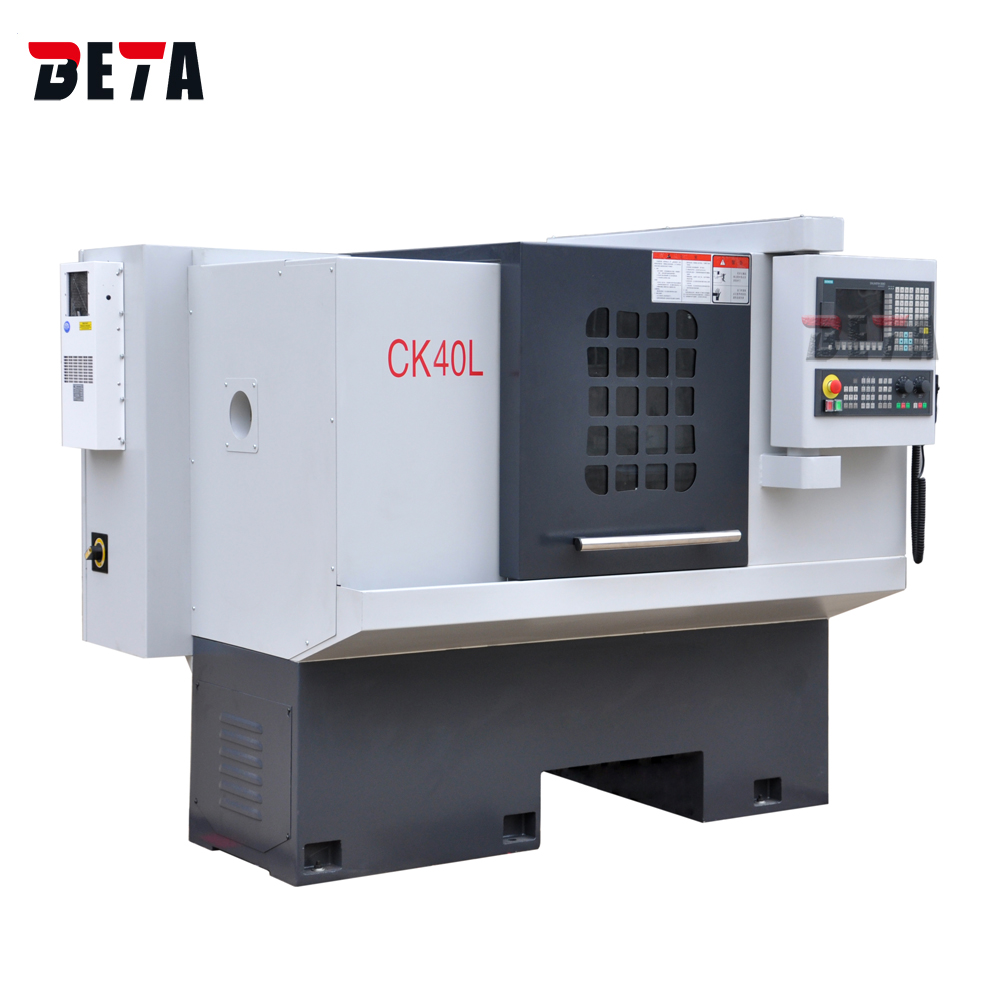

Flat bed CNC lathe

CK40L

Max.swing over bed 400mm
Max.turning length 300mm
Spindle bore 52mm
X/Z axis travel 215/300mm

Features:

1.High precision bearings are adopted for the spindle to realize high accuracy and load capacity.

2.The machine main drive adopts imported inverter variable speed motor to realize infinitely variable speed.

3.Both X and Z-axis rails are equipped with Taiwan linear guide ways to reduce abrasion.

4.Full enclosure with safety switch and door interlock.

5.Rapid feed is realized through a big pitch ball screw.

MODELS	CK40L
Max swing over bed	Ф400mm
Max. turning dia. for axle parts with gang tools	Ф150mm
Max. turning length	300mm
Spindle nose	A2-5
Spindle bore	Ф52mm
Taper bore of spindle	M.T.NO.6
Steps of spindle speed (manual)	Stepless
Max.spindle speed	3000rpm
X-axis rapid feed	16m/min
Z-axis rapid feed	20m/min
X-axis travel	215mm
Z-axis travel	300mm
Min. input	0.001mm
Tool post type	Gang tools
Tool cross section	20×20mm
Round hole cutter holder size	Ф25mm
Main motor power	3.7kw
Coolant pump power	75w
Overall dimensions(L×W×H)	1700×1500×1600mm
Net weight	1700kg

Standard accessories:

GSK980TDi CNC cnc controller,

GSK servo motors for X and Z,

GSK servo main motor for spindle,

Linear guide ways for X and Z,

Lead screw for X and Z,

Gang type tool post ,

Pneumatic collect,

Lubrication and coolant system,

Heat exchanger,

Full cover,

Tool box
