Slant bed CNC lathe

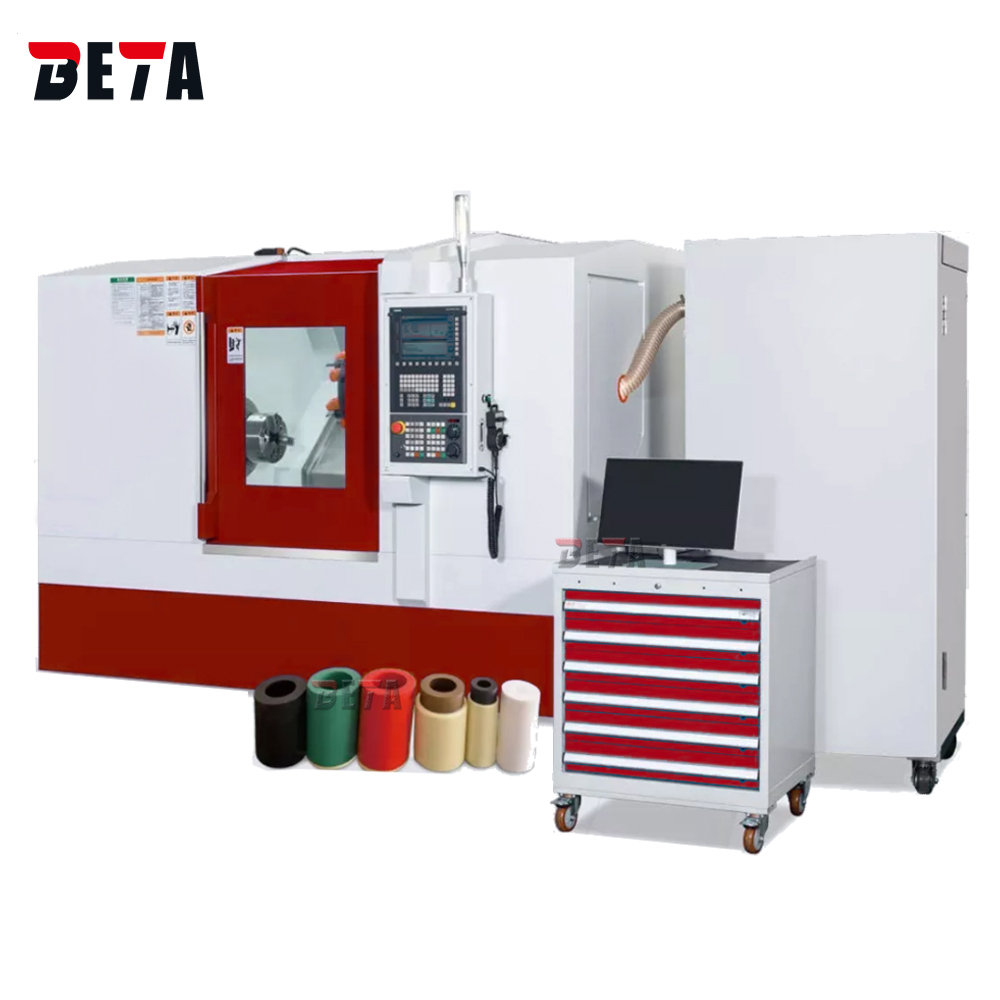

CNC lathe CS500 for seals

CNC Lathe slant bed for seals making.
Max. turning seals diameter 400/500/600/700mm for your choice.
Siemens 828D CNC controller is standard.

INQUIRY

Features
Specification
CONFIGURATION

1. Seals making CNC turning lathe machine

2. Hydraulic turret, High spindle speed 5000rpm

3. High precision for seals making

Specification	CS500
Max. Turning diameter over bed	520 mm
Max. Seal Turning diameter	500 mm
Spindle	A2-5
Spindle bore diameter	56 mm
Max. spindle speed	5000 r/min
Chuck size	Taiwan 6 inch hydraulic chuck
X-axis rapid move speed	24 m/min
Z-axis rapid move speed	24 m/min
X-axis travel	260 mm
Z-axis travel	450 mm
X-axis motor (with brake)	Siemens 2.29 kw / 11Nm
Z-axis motor	Siemens 2.29 kw / 11Nm
X-axis guide	SKF 30
Z-axis guide	SKF 35
Turret type	VDI 6 station horizontal IEEP0
X/Z axis ball leadscrew	Taiwan HIWIN 3208
Leadscrew bearing	Germany FAG BSB2562
Spindle bearing	NSK
Electrical components	Schneider
Main motor power	7.5 kw
CNC Controller	Siemens 828D
Motor power of suction machine	5.5 kw
Machine weight	2800 kg
Overall size of CNC lathe	275017801920 mm
Overall size of Suction machine	9009002000 mm
Repeated positioning accuracy X-axis/Z-axis	0.004mm/0.004mm

Standard configurations:

Siemens 828D CNC controller,
main servo motor 7.5kw,
Taiwan linear guide way,
A2-5 spindle unit speed 5000rpm,
6" domestic thru-hole type hydraulic chuck
6 station hydraulic turret ,
automatic lubrication system,
automatic cooling system,
work light ,
tools & tool box

Optional configurations:

Hydraulic 3-jaw chuck
8/12 station hydraulic turret/servo turret
Chip conveyor
FANUC CNC controller
