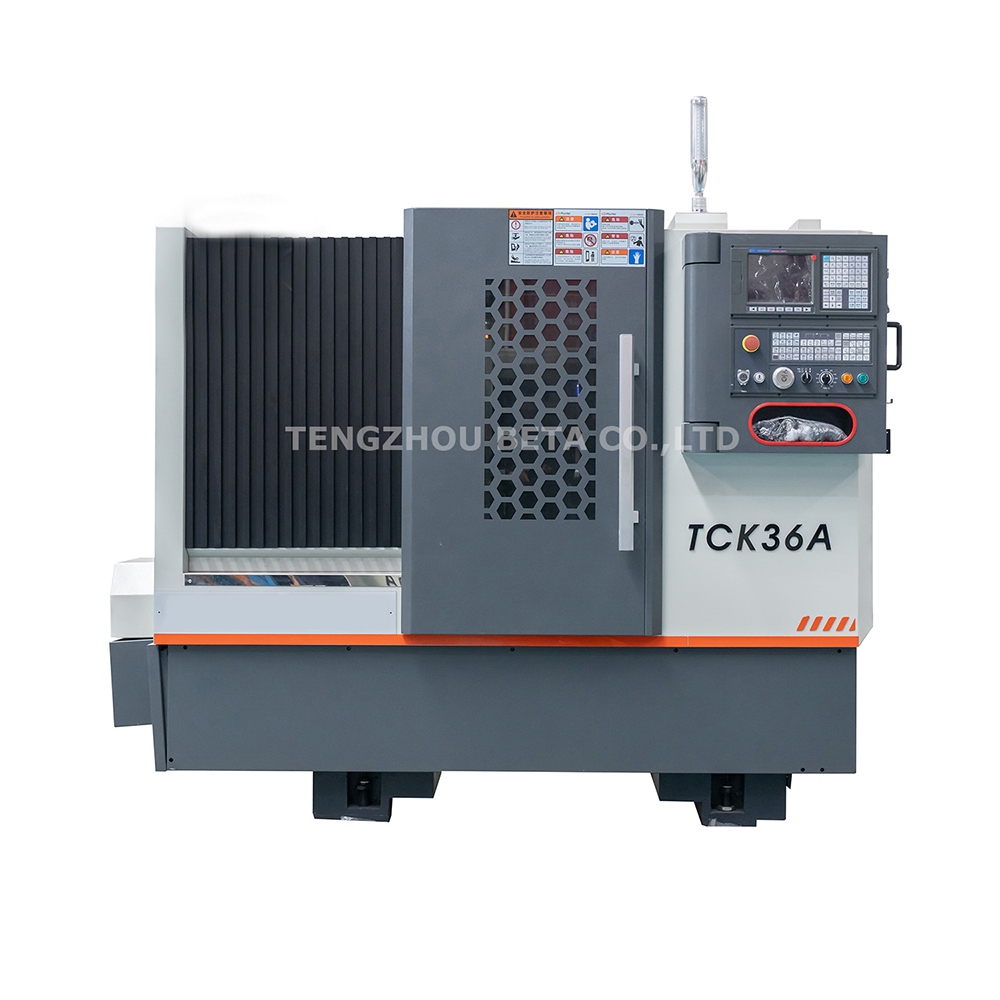

Slant bed CNC lathe

TCK36A

45 Degree slant bed CNC lathe
Max. turning length 300mm
with tailstock
8-station hydraulic turret

Features
Specification
CONFIGURATION

1. GSK980TC3 CNC controller, HIWIN/PMI Linear guideway and leadscrew, Main motor power 5.5kw

2. Slant bed frame , direct spindle drive, 45 degree slant bed, high rigidity.

3. High spindle speed 4000rpm.

Model	Unit	TCK36A	TCK46A
Max. Swing over bed	mm	Φ360	Φ460
Max. Swing over carriage	mm	Φ140	Φ260
Max. Turning length	mm	300	350
Chuck size	inch	6 inch	8 inch
X-axis travel	mm	170	240
Z-axis travel	mm	350	400
Max. Spindle speed	rpm	4000rpm	3500rpm
Spindle speed change		Stepless	Stepless
Spindle nose		A2-5	A2-5
Spindle bore diameter	mm	Φ48	Φ56
Through bar capacity	mm	Φ40	Φ45
X/Z-axis motor torque	NM	6/6	7.5/7.5
Main motor power	KW	5.5	7.5
Standard Turret		8 station hydraulic turret	8 station hydraulic turret
Quill diameter	mm	65	70
Tailstock quill taper		MT4	MT5
Max. Travel of tailstock	mm	200	200
Max. travel of quill	mm	60	80
Slant bed	degree	45 degree slant bed	30 degree slant bed
Overall dimension(LWH)	mm	2200x1600x1850	2500x1700x1980
Machine weight	KG	2400	3000

Standard configurations:

GSK980TC3 CNC controller,
Taiwan linear guide way,
High spindle unit speed 4000rpm,
6" hollow type hydraulic chuck
8 station hydraulic turret ,
automatic lubrication system,
automatic cooling system,
work light ,
tools & tool box

Optional configurations:

Hydraulic 4-jaw chuck
servo turret/Power turret
Chip conveyor
Siemens or FANUC CNC controller
