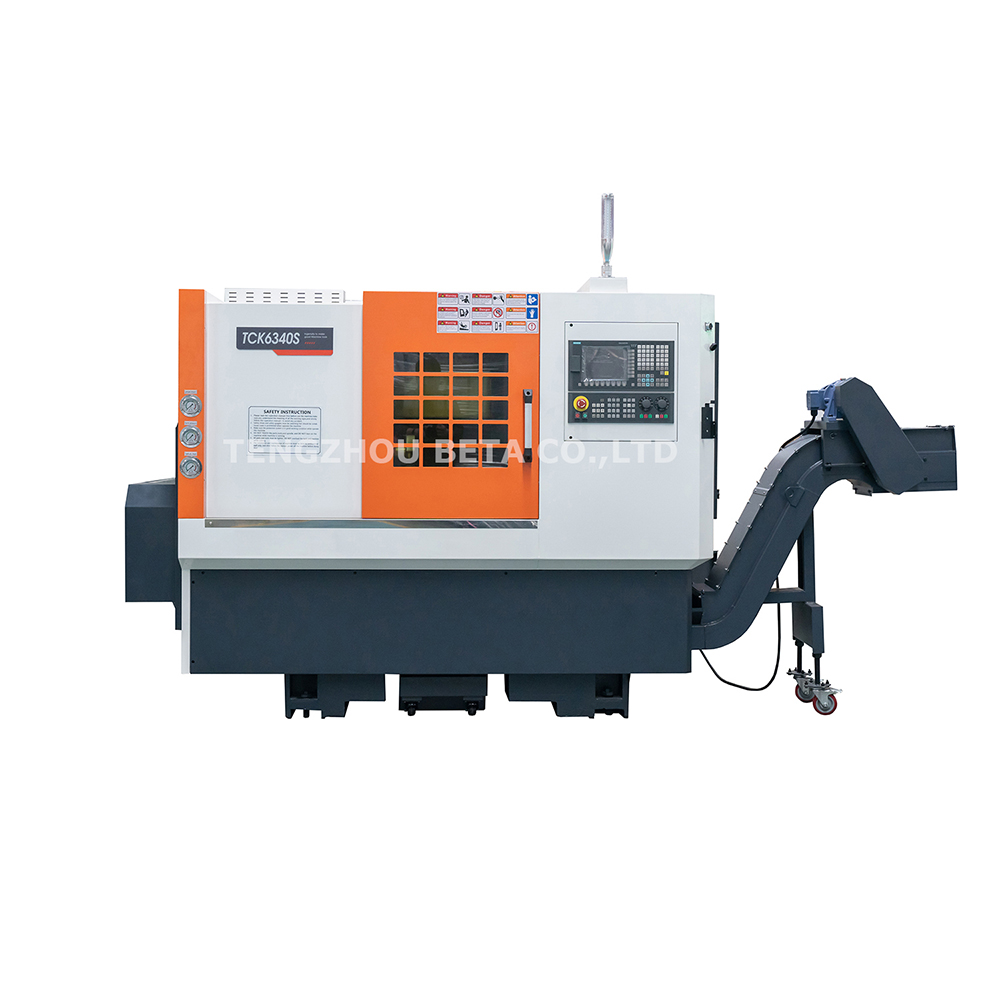

Slant bed CNC lathe
TCK6340
45 Degree slant bed CNC lathe
Max. turning length 200mm
without tailstock
Gang type tools
INQUIRY
  • Features
  • Specification
  • CONFIGURATION

1. GSK980TC3 CNC controller, HIWIN/PMI Linear guideway and leadscrew, Main motor power 5.5kw

2. Slant bed frame , direct spindle drive, 45 degree slant bed, high rigidity.

3. High spindle speed 3500rpm.


Model
Unit
TCK6340/TCK6340S
Swing over bed
mm
400
Swing over cross slide
mm
140
Max processing length
mm
200(400) gang tool,
100(300) electric turret
X/Z axis travel
mm
400/300(500)
Spindle nose

A2-5
Spindle bore
mm
56
Bar capacity
mm
45
Max spindle speed
rpm
3500
Chuck size
inch
6/8
Spindle motor
kw
5.5
X/Z axis repeatability
mm
0.005
X/Z axis feed motor torque
N.m
6/6
X/Z rapid traverse
mm/min
18/15 (18/18)
Tool post type

Gang type tools (optional turret)
Cutting tool shape size
mm
20*20
Guide way type

45 degree slant bed
Total power capacity
kVA
9/11
Overall dimension
mm
2200/2390*1530*1780
Weight
kg
2200/2500


Standard configurations:

GSK980TC3 CNC controller,
main servo motor 5.5kw,
Taiwan linear guide way,
A2-5 spindle unit speed 3500rpm,
6" domestic thru-hole type hydraulic chuck,
Gang type tools 4 pcs
automatic lubrication system,
automatic cooling system,
work light ,
tools & tool box


Optional configurations:

Hydraulic 3-jaw chuck
6 Station servo turret/Power turret
Chip conveyor
Siemens or FANUC CNC controller
