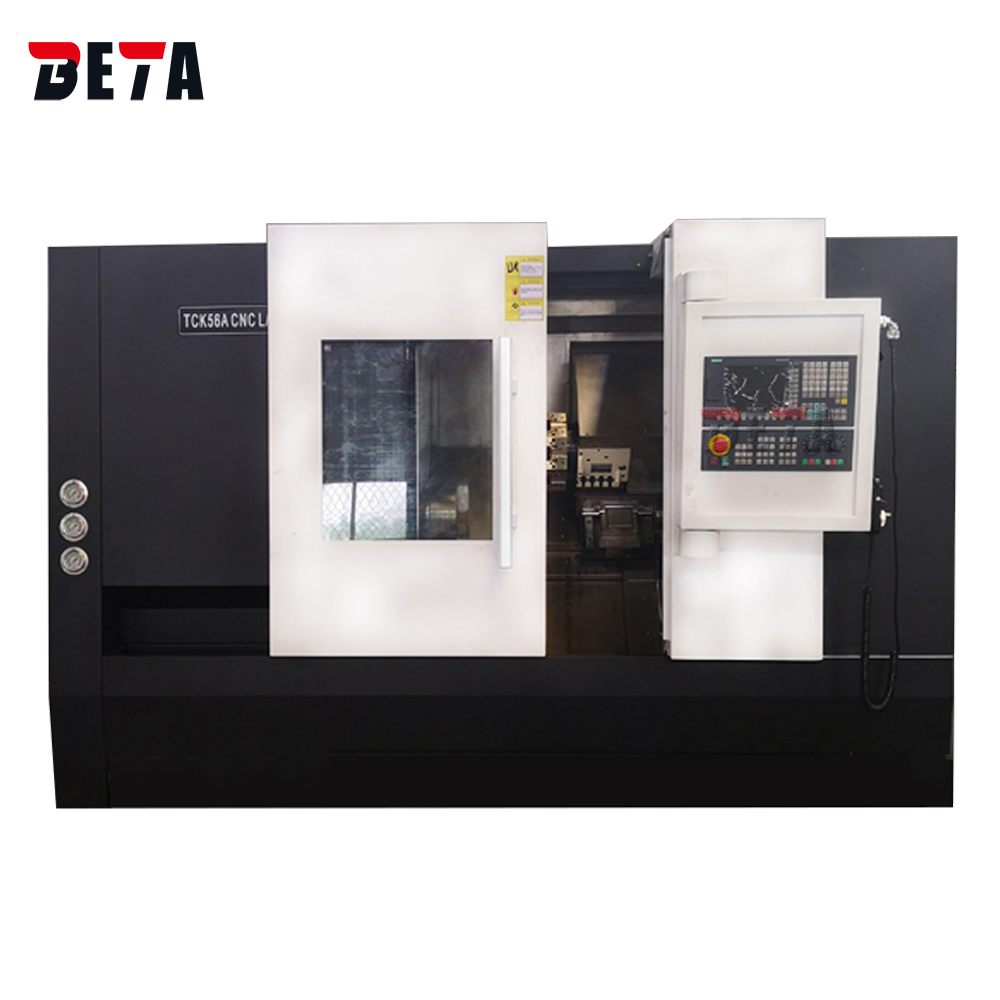

Slant bed CNC lathe

TCK56A

Slant bed CNC lathe
Max. turning length 1000mm
with tailstock
8-station turret

Features
Specification
CONFIGURATION

1. GSK988T CNC controller, HIWIN/PMI Linear guideway and leadscrew.

2. Slant bed frame , direct spindle drive, high rigidity.

3. High spindle speed 3500rpm.

Items			Unit	Model
				TCK560x1000
Max. wing over bed			mm	φ560
X-axis rail span			mm	254
Z-axis rail span			mm	364
Max. swing over cross slide			mm	φ360
Distance between centers			mm	1000
Max. turning length			mm	1000
Center height	To guideway		mm	368
	To ground		mm	1018
Spindle bore diameter			mm	φ65
Bar capacity			mm	φ50
Spindle nose				A2-6
Chuck size			mm	8 inch hydraulic chuck
Spindle taper			No	Metric , 70, 1:20
Spindle speed			rpm	0-3500
Tailstock quill diameter			mm	φ74
Tailstock quill taper			No	MT5#
Tailstock quill travel			mm	250
Tailstock				Hydraulic
Turret type				8-station hydraulic turret
Tool size			mm	25×25
Screw		X-axis	mm	FDC3212-P3
		Z-axis	mm	FDC4012-P3
X/Z-axis rapid feeding			m/min	4/5
X-axis travel			mm	200
Z-axis travel			mm	1050
Min. setting unit			mm	0.001
Main motor power			KW	7.5（servo）
Total power supply			KW	15
Machine weight			Kg	4500
Overall size (LxWxH)			mm	3450×1860×1850

Standard configurations:

GSK988T CNC controller,
Taiwan linear guide way,
High spindle unit speed 3000rpm,  7.5kw servo motor,
8" hollow type hydraulic chuck
8 station hydraulic turret ,
hydraulic tailstock
automatic lubrication system,
automatic cooling system,
work light ,
tools & tool box

Optional configurations:

Servo turret/Power turret
Chip conveyor
Siemens or FANUC CNC controller
