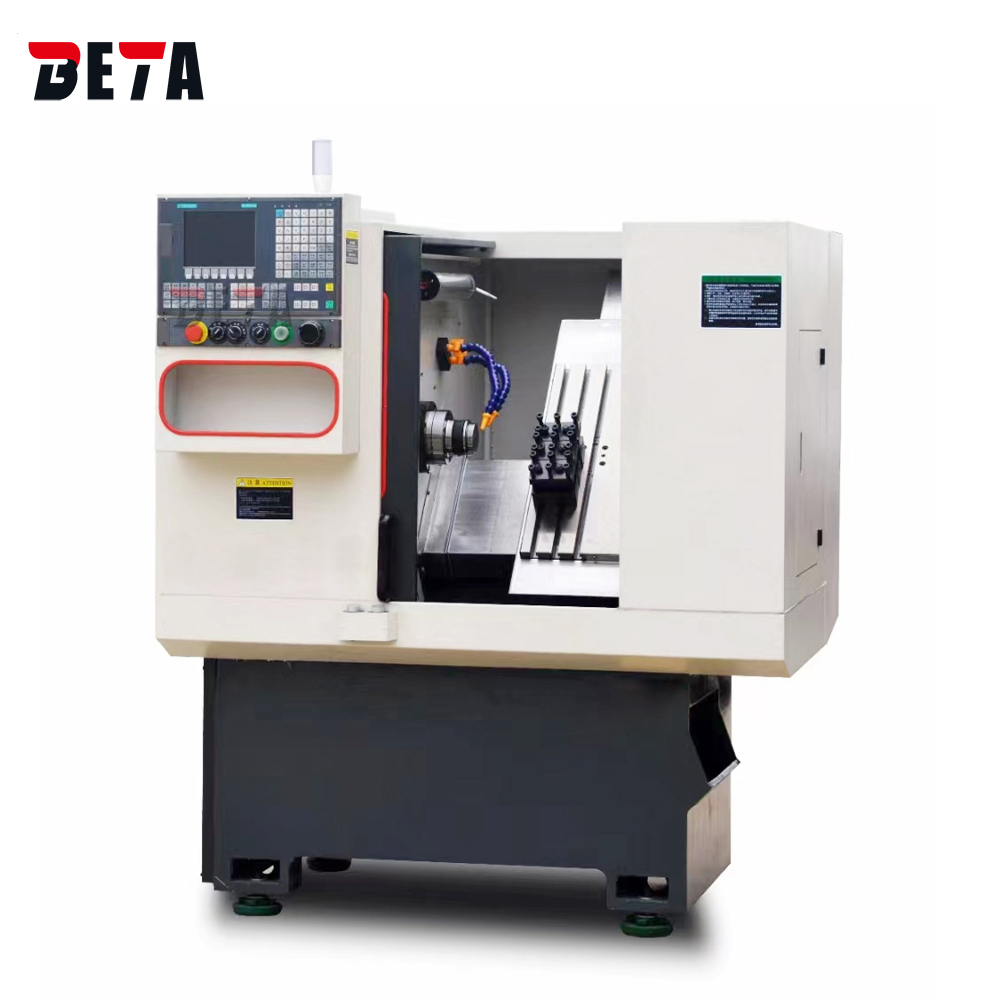

Slant bed CNC lathe

CK40S

X/Z axis travel 600/260mm
45 degree slant guideway
Gang tools CNC lathe

Features:

1. Slant bed CNC lathe 45 degree.

2. High precision gang type tools.

3. Pneumatic collet clamping type.

4. Small oversize.

5. GSK/SIEMENS CNC controller for choice.

MODELS	CK40S
CNC Controller	GSK980
X-axis travel (diameter)	600mm
Z-axis travel	260mm
Spindle nose	A2-5
Max.bar diameter through spindle	Ф40mm
Spindle speed	3000rpm
Clamping type	Pneumatic collet
Guideway type	45 degree slant guideway
Max.diameter through carriage	120mm
Max. Moving speed X-axis	20m/min
Max. Moving speed Z-axis	20m/min
Toolpost type	Gang tools
Quantity of gang tools	3 pcs
Tailstock	No tailstock
Tool cross section	20×20mm
Size of carriage	600*260mm
Width of bed	300mm
Spindle motor power	3 kw
Repeatability accuracy	0.005 mm
Overall dimensions(L×W×H)	160011501770mm
Net weight	1000 kg

Standard accessories:

GSK CNC controller

Pneumatic collet clamping

Gang tools 3 pieces

Spindle speed 3000rpm

No tailstock

45 degree slant guideway

X/Z-axis fast moving speed 20m/min
