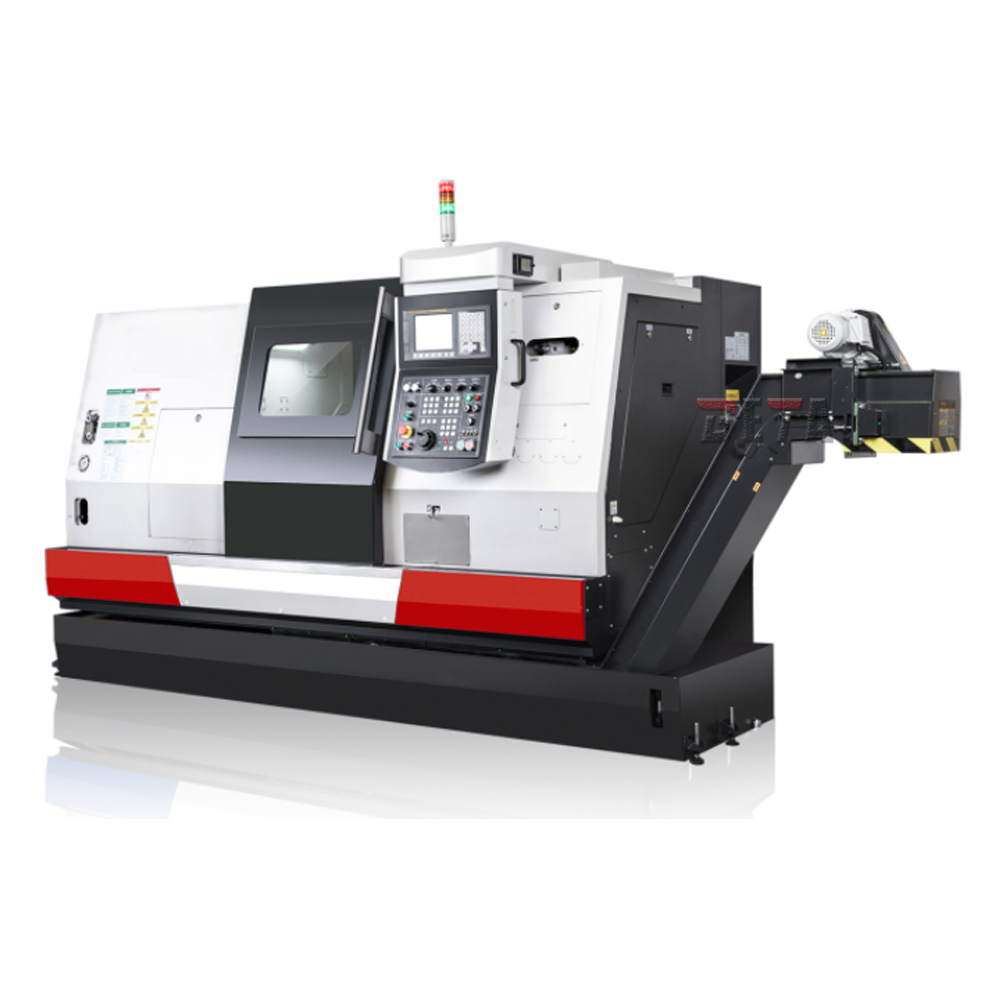

Slant bed CNC lathe
504T
Horizontal CNC turning center
Max.turning diameter 430mm
Max.turning length 1000mm
12 position Living Turret BMT(SAUTER)
INQUIRY
  • Features
  • Specification
  • CONFIGURATION

1.504T horizontal turning center is a three-axis linkage and semi-closed loop control.

2.The machine has a C-axis indexing function and is equipped with a power tool holder.

3.In addition to the function of a CNC lathe, it also has a certain milling function.


Items
Model  504T
WORKING RANGE:
Swing over bed/saddle
Ф600mm(23.6'')/Ф450mm(17.77’’)
Max turning diameter
Ф430mm(16.9”)
Max turning length
1000mm(39.4”)
Spindle bore diameter
Ф65mm(2.6'')
Bar capacity
Ф51mm(2.0'')
Travel of X/Z
295mm(11.6’’)/1050mm(41.3’’)
DRIVE:
Servo motor X
βiSc 22/2000B
Servo motor Z
βiSc 22/2000
Servo motor torque X & Z axis
20Nm
SPINDLE:
Spindle power
11/15KW(14.7/20.1hp)
Spindle nose
A2-6
Spindle speed
30-3000 rpm
Chuck
10’’ solid hydraulic
SPEED:
Rapid traverse X
12m/min
Rapid traverse Z
16m/min
Feeding speed
1~8000mm/min(315IPM)
TURRET:
Tool capacity
12 position Living Turret BMT(SAUTER)
Tool indexing time
0.5sec/pos
Turning tool size
25 x 25mm
Max boring tool diameter
Ф32mm
Max speed of drive tools
6000rpm
Max drilling
Φ16×0.2 mm
Max threading
M14×2/m20×1.5 mm
Max slotting
Φ20×12×40 mm
TAILSTOCK:
Quill dia
Φ100mm
Quill travel
100mm
Bore taper
5#(live center) MT5 (live center)
ACCURACY:
Positioning accuracy X/Z /C
0.010/0.012/51” mm
Reputability X/Z/C
0.005/0.007/20”mm
OTHERS:
Power capacity
40kVA
Coolant tank capacity
240L
Machine dimension (LxWxH)
4750x1880x1950mm
Net weight
4800kg


Standard Accessories:
FANUC 0i TF(5) CNC system+11/15kw β motor 2MB system memory
3000rpm belt drive spindle
FANUC servo motor
12 position BMT55 living turret
10’’ solid hydraulic chuck with 1 set soft jaw
Solid hydraulic cylinder
Hydraulic tail stock & Hydraulic system
Auto chip conveyer & chip chart
Auto oil lubrication system
Tri-color light , Air gun
Door lock switch
Lighting lamp
Full enclosure splash guard
Telescopic covers
