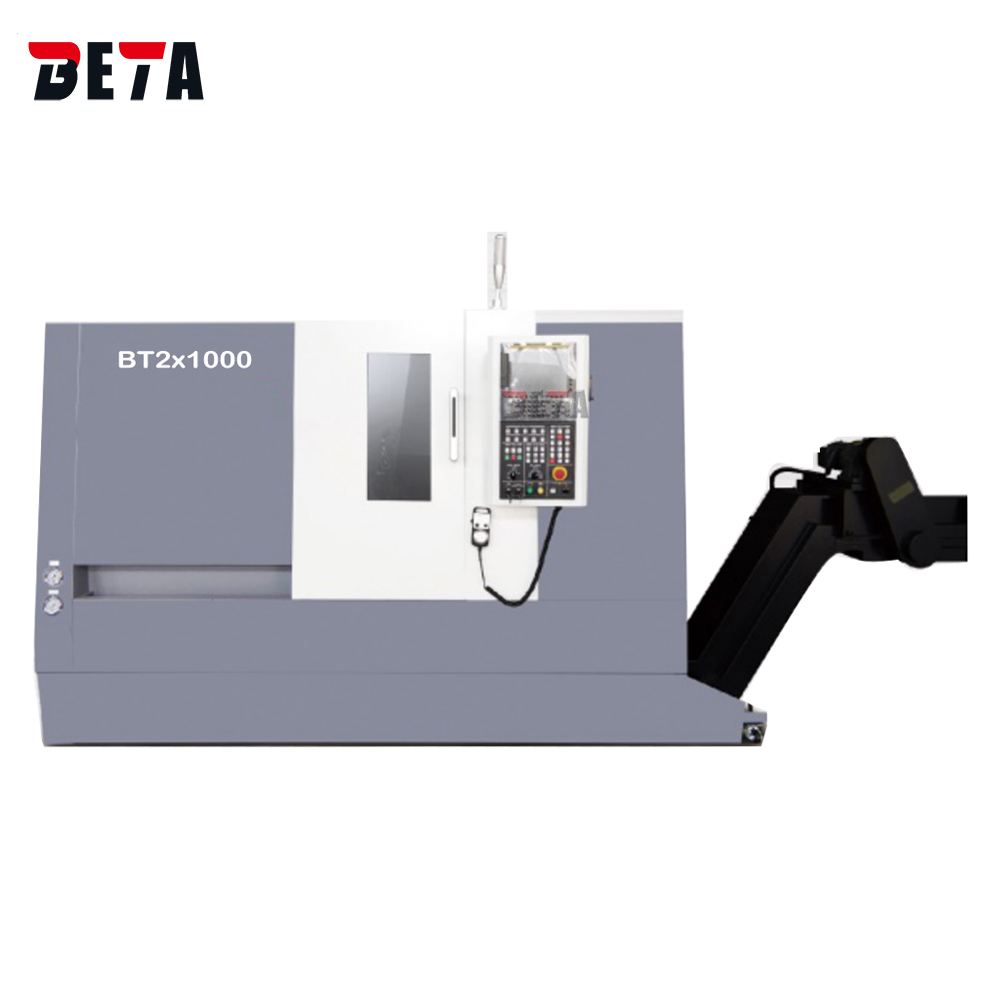

Slant bed CNC lathe
BT2x1000
Max. swing over bed 560mm
Max. turning diameter 400mm
Max. turning length 1000mm
INQUIRY
  • Features
  • Specification
  • CONFIGURATION

Features:

1.Bridge headstock

2.One-piece hydraulic tailstock.

3.Roller guide.

4. Integral bed 45 degree slant bed.


ItemsUnitBT2x1000
Max.swing over bedmm560
Max. turning lengthmm1000
Max. turning diametermmdisc type 400, shaft type 350
Max. swing over carriagemm350
Spindle nose
A2-6
Spindle bore diametermm65
Max. bar capacitymm50
Chuck sizeinch8
X-axis rapid speedm/min30
Z-axis rapid speedm/min30
X-axis travelmm210
Z-axis travelmm1050
Tailstock travelmm900
Tailstock sleeve taperMT5#
OD Turing toolsmm25×25
Boring toolsmmФ40/Ф32/Ф25/Ф20
Max.processing weight of workpiece (disc type)kg200(include chuck and accessories)
Max.processing weight of workpiece (shaft type)kg500(include chuck and accessories)
Machine weightkg4500
Overall dimension (LxWxH)mm3570x1860x1900


Standard accessories:

FANUC 0i-TF CNC controller ,

Main spindle motor βiIP22/6000 SP FANUC,

X/Z-axis motor FANUC (Japan),

Spindle bearings from NSK/NTN,

X/Z-axis #35 roller linear guideway from Taiwan PMI,

X/Z-axis ball screw from THK (Japan),

Ball screw bearings from NSK/NTN (Japan),

8 inch diameter hollow type hydraulic chuck from Taiwan,

Hydraulic tailstock,

8 station servo turret from Taiwan ,

Coolant chip conveyor device,

Full-enclosed protection cover and chart
