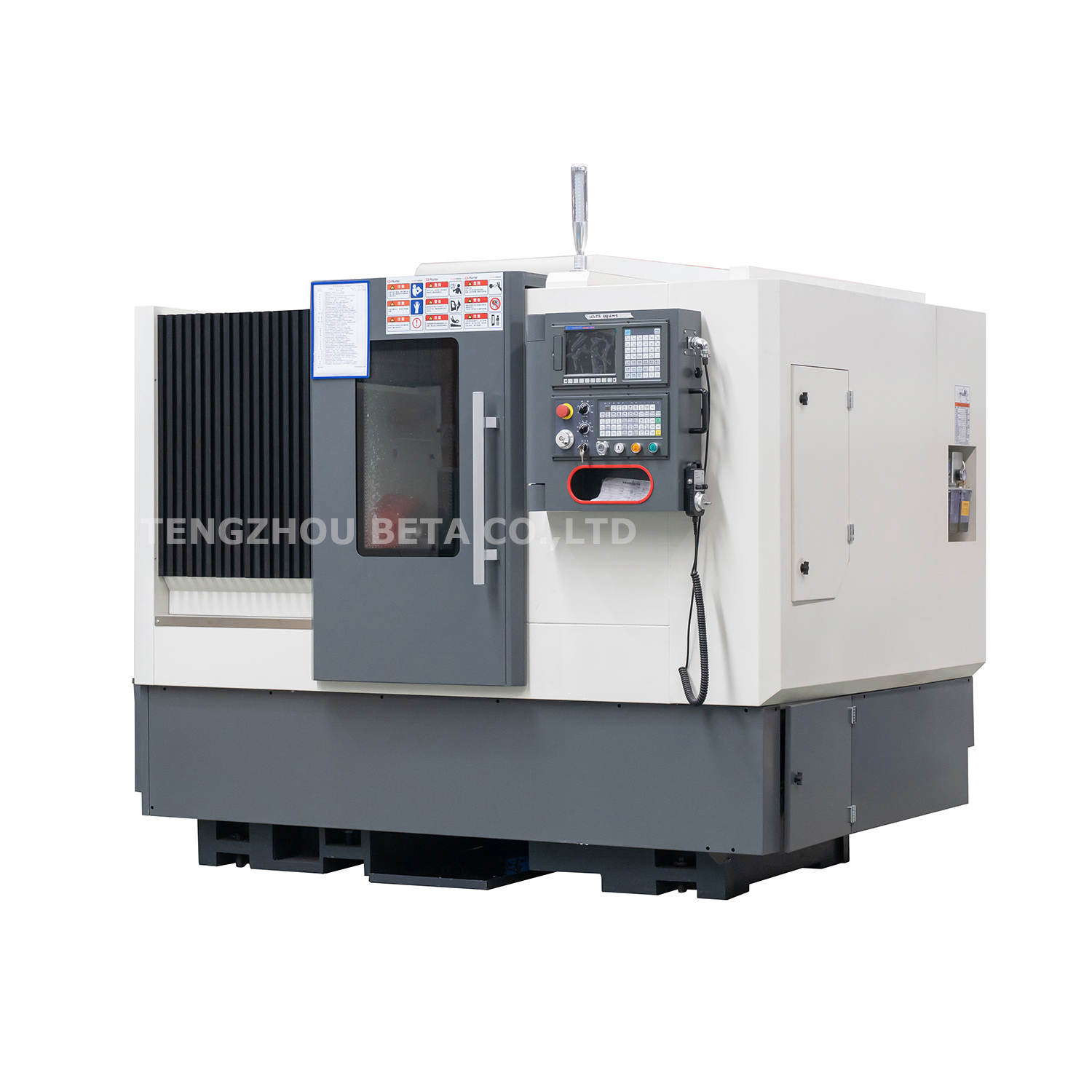

Slant bed CNC lathe
TCK50Ax500
Slant bed CNC lathe
Max. turning length 300/500/800mm
with tailstock
8-station turret
INQUIRY
  • Features
  • Specification
  • CONFIGURATION

1. GSK988T CNC controller, HIWIN/PMI Linear guideway and leadscrew, Main motor power 11kw

2. Slant bed frame , direct spindle drive, high rigidity.

3. High spindle speed 3000rpm.

4. 300/500/800mm different turning length for your choice.


Model
Unit
TCK50A x 300/500
TCK50A x 800
Max. Swing over bed
mm
Φ560
Φ560
Max. Swing over carriage
mm
Φ260
Φ260
Max. Turning length
mm
300/500
800
Chuck size
inch
10 inch
10 inch
X-axis travel
mm
240
260
Z-axis travel
mm
400/540
900
Max. Spindle speed
rpm
3000rpm
3000rpm
Spindle speed change

Stepless
Stepless
Spindle nose

A2-6
A2-8
Spindle bore diameter
mm
Φ66
Φ86
Through bar capacity
mm
Φ55
Φ75
Rapid moving speed
m/min
X:18 Z:18
X:18 Z:18
Cutting feeding
mm/min
1-15000
1-15000
X/Z-axis motor torque
NM
7.5/7.5
10/10
Main motor power
KW
11
15
Standard Turret

8 station hydraulic turret
8 station servo turret
Tool shank size
mm
25´25
25´25
Quill diameter
mm
70
90
Tailstock quill taper

MT5#
MT5#
Max. Travel of tailstock
mm
450
750
Total power capacity
KVA
18
18
Coolant tank
L
100
100
Overall dimension(L*W*H)
mm
2800*1850*1890
3250*1860*2000
Machine weight
KG
3200
4000


Standard configurations:

GSK988T CNC controller,
Taiwan linear guide way,
High spindle unit speed 3000rpm,
10" hollow type hydraulic chuck
8 station hydraulic turret/servo turret ,
automatic lubrication system,
automatic cooling system,
work light ,
tools & tool box


Optional configurations:

Hydraulic 4-jaw chuck
servo turret/Power turret
Chip conveyor
Siemens or FANUC CNC controller
