WhatsApp: +8618266249928WhatsApp: +86182662499281. Big spindle bore 52mm.
2. Precision ground hardened bedways.
3. The spindle is supported wish precision roller bearings.
4. Headstock gears are made of high quality steel, ground and hardened.
5. Removable gap is provided for larger diameter work.
6. Easy operation speed change levers.
7. Spindle speed range 70-2000rpm.
8. Easy operating gear box has various feeds and threads cutting function.

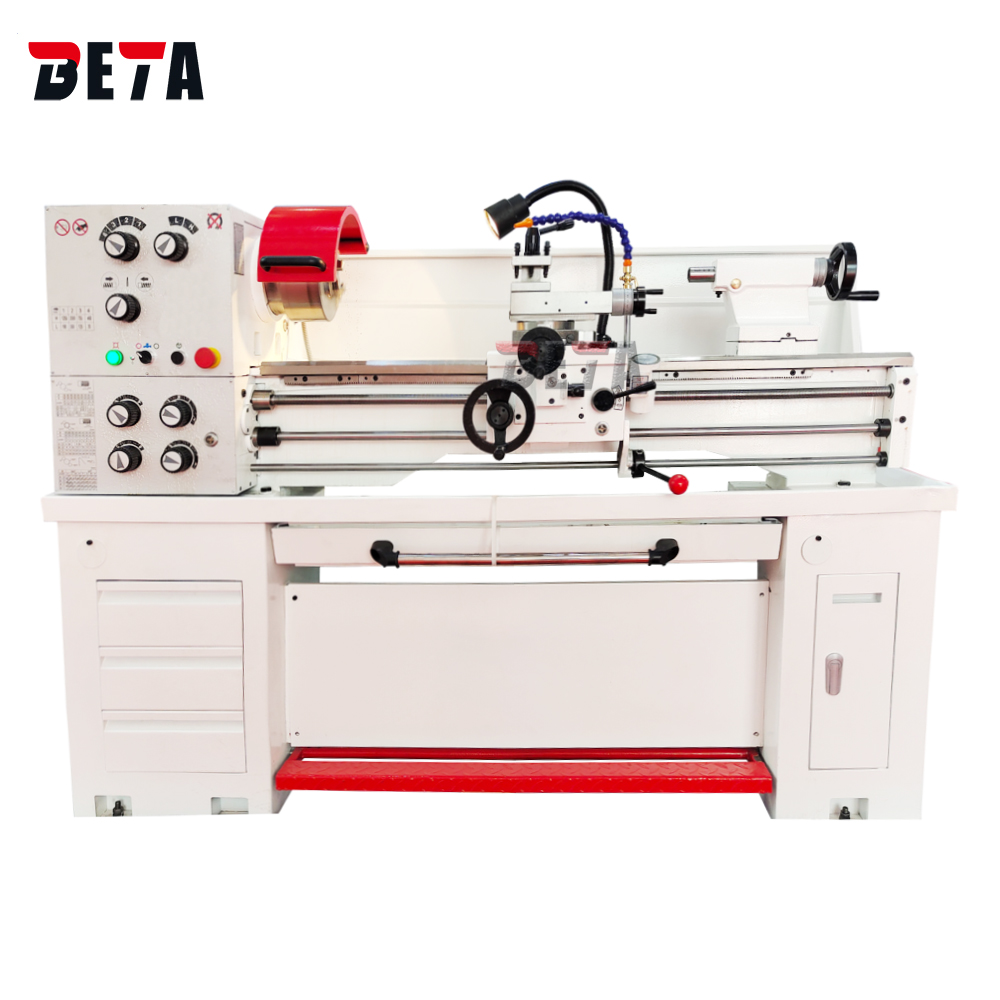

| Model | C6236N |
| Max. swing over bed | Φ360mm |
| Max. swing over cross slide | Φ233mm |
| Max. swing over gap | Φ502mm |
| Center height | 179mm |
| Distance between centers | 1000mm |
| Width of bed | 187mm |
| Max.section of tool | 16x16mm |
| Max.travel of cross slide | 160mm |
| Max.travel of compound rese | 95mm |
| Spindle bore | Φ52mm |
| Spindle nose | D1-5 |
| Taper of spindle speed | MT6 |
| Range of spindle speed | 8 steps 70-2000r/min |
| Leadscrew diameter | 22mm |
| Leadscrew thread | 4-56 T.P.I |
| Range of metric longitudinal feeds range | 0.052-1.392mm/rev (32 kinds) |
| Range of metric cross feeds | 0.014-0.38mm/rev (32 kinds) |
| Range of metric threads | 0.4-7mm (26 kinds) |
| Range of imperial threads | 4-56 T.P.I.（34 kinds） |
| Dia. of tailstock sleeve | 32mm |
| Travel of tailstock sleeve | 100mm |
| Morse taper of tailstock sleeve | MT3 |
| Power of main motor | 1.5kw |
thread dial indicator
