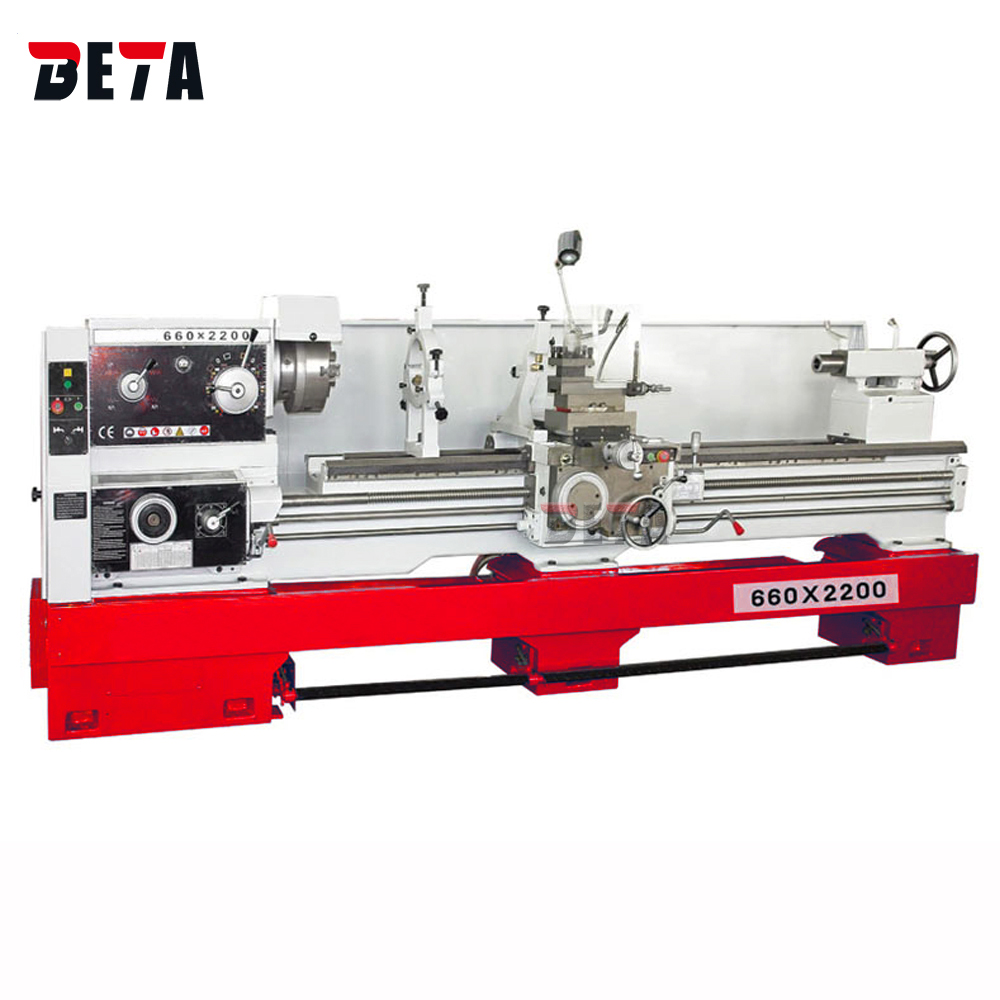

Universal lathe

CA6166, CA6166B, CA6166C

High rigidity with bed width 400mm
Max. swing over bed 660mm
Spindle bore 52mm/80mm/105mm
Distance between centers 750/1000/1500/2000/3000mm

INQUIRY

Features
Specification
CONFIGURATION

1.The lathe bed width in general lathe, has high rigidity, guide surface after medium frequency quenching, durability.

2. Machine tool operation spirit concentration and skateboard has fast moving mechanism. Using single handle visualization operation, should be good human nature.

3. Machine tool structure stiffness and transmission stiffness were higher than the general lathe, high power efficiency, suitable for high speed cutting. Main shaft aperture is large, can choose accessories complete.

Model	Unit	CA6266, CA6266B, CA6266C
Max. swing over bed	mm	660
Max. swing over carriage	mm	400
Max. swing in gap	mm	880
Effective gap length	mm	210
Max. length of workpiece	mm	1000/1500/2000/3000/4000
Width of bed	mm	400
Section of turning tool	mm	25x25
Spindle speed	r/min	16-1400 (24 steps)
Spindle bore	mm	Φ52, Φ80, Φ105
Spindle taper	Morse	MT6, (Φ90 1:20), (Φ113 1:20)
Feeding number	kinds	64
Range of metric threads	mm	1-192 (44 kinds)
Range of inch threads		2-24TPI (21 kinds)
Range of module threads	mm	0.25-48 (39 kinds)
Range of diametral pitc threads	mm	1-96DP (37 kinds)
Tailstock quill travel	mm	150
Tailstock quill taper	mm	Φ75
Tailstock quill diameter	Morse	MT5
Main motor	kw	7.5
Packing size	mm	2700/3200/3700/4850/5800x1140x1750
Weight	kg	2450/2570, 2640/2810, 2880/3050, 3687/3930, 4200/4580

Standard accessories:

3-Jaw chuck, 4-Jaw chuck,

steady rest, follower rest,

work lamp, face plate,

longitudinal automatic trip,

oil gun,coolant system,

brake system, chuck cover,

toolpost cover

Optional accessories:

SINO DRO 2-axis

Live center

Quick change toolpost

Taper turning attachment

Leadscrew cover
