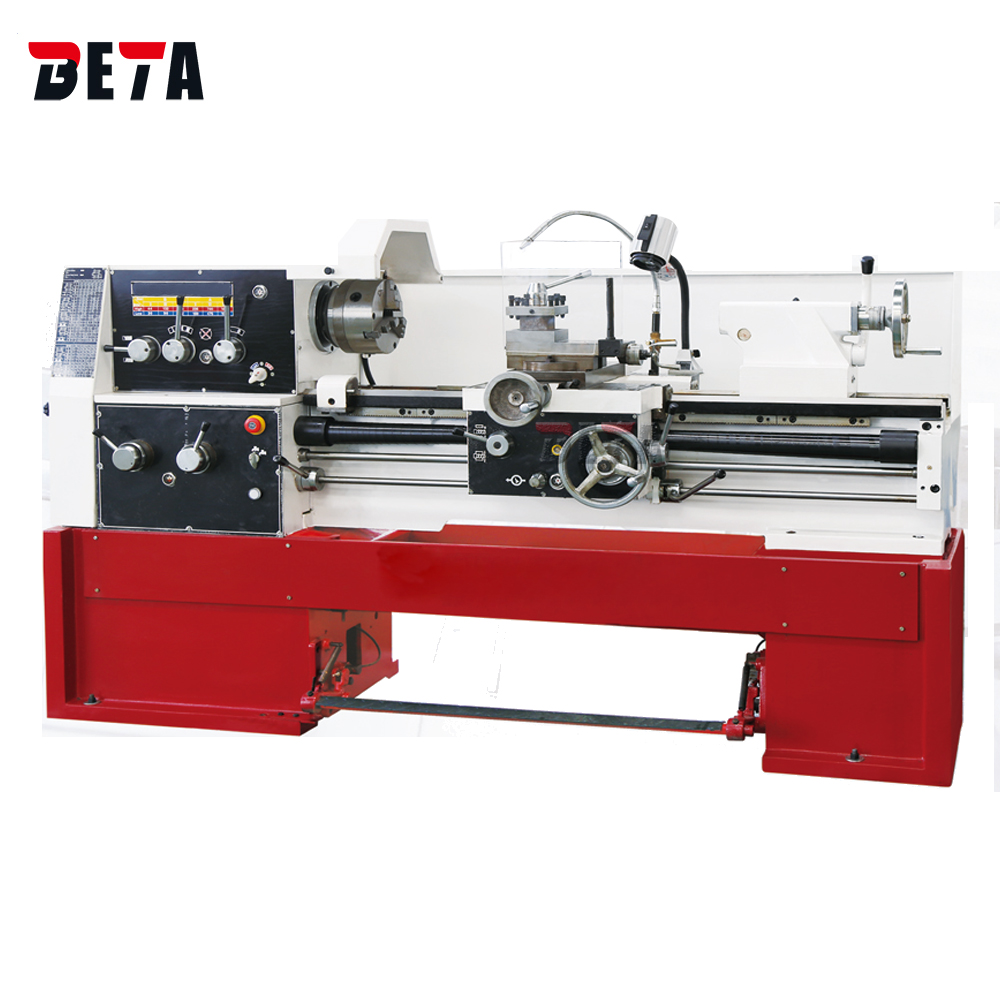

Universal lathe

C6140D

High rigidity with bed width 312mm
Max. swing over bed 400mm
Spindle bore 52mm
Distance between centers 750/1000mm

Features
Specification
CONFIGURATION

1. C61-D series universal lathe is suitable for internal and external turning ,tapering ,and other rotating faces ,metric ,module and inch threads ,as well as drilling and pull oil slot ,widely used in axisal and plates processing .

2. The lathe bed is wider than normal machine ,owns high rigidity ,guideway after high frequency quenching ,with high durability. Easy operated ,one handle to operate quite convenient .

3. Own high rigidity in both structure and transfer parts ,high percent the use of power make the machine cutting easily .Lots of optional accessories for you to choose .

4. Whole side test before leave the factory ,make sure the machine owns high stability and more reliable .

Model	Unit	C6140D
Max. swing over bed	mm	400
Max. swing over carriage	mm	240
Max. length of workpiece	mm	750/1000
Width of bed	mm	312
Section of turning tool	mm	20x20
Spindle speed	r/min	30-1600 (12 steps)
Spindle bore	mm	52
Spindle nose		C6
Spindle taper	Morse	MT6
Feeding number	mm	0.039-1.05 longitudinal 0.019-0.52mm cross
Range of metric threads	mm	0.5-20 , 25 kinds
Range of inch threads		80-1.75 , 35 kinds
Range of module threads	mm	0.25-10
Range of diametral pitc threads	mm	160-3.5DP , 30 kinds
Tailstock quill travel	mm	100
Tailstock quill taper	mm	60
Tailstock quill diameter	Morse	MT4
Main motor	kw	3, 4
Packing size	mm	2000/2250x1130x1540
Weight	kg	1700/1800

Standard accessories:

3-Jaw chuck, 4-Jaw chuck,

steady rest, follower rest,

work lamp, face plate,

longitudinal automatic trip,

oil gun,coolant system,

brake system, chuck cover,

toolpost cover

Optional accessories:

SINO DRO 2-axis

Live center

Quick change toolpost

Taper turning attachment

Leadscrew cover
