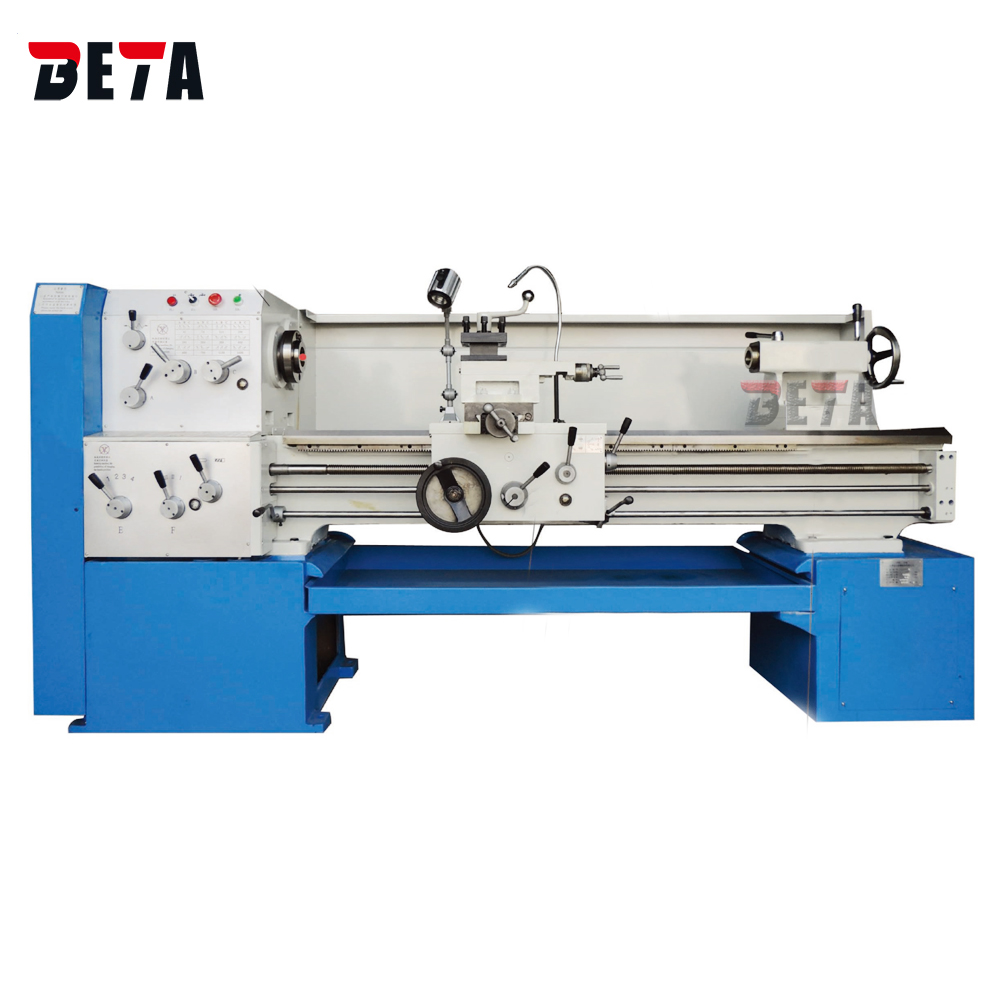

Universal lathe

CC6150, CC6250

Max. swing over bed 500mm
Spindle bore 52mm
Width of bed 360mm
12 steps speed change

1.Bed rail grinding, high precision.

2.Headstock gear precision grinding, low noise.

3.Electric system is reliable and safe.

4.Foot brake/electro magnetic brake can be equipped when needed.

5.Big slide can be common, fast forward or tapered structure.

6.Three bars can be metric or imperial system.

7.Customizable CC6140/CC6240.

Model	CC6140	CC6150	CC6160
Max.swing over bed	400mm	500mm	600mm
Max.swing over cross slide	230mm	325mm	360mm
Max.swing over gap	560mm	630mm	730mm
Effective length of gap (for 62 series)	160mm
Center Distance	1000h0�0mm
Bed Width	360mm
Spindle bore	52mm / 82mm
Spindle nose	ISO-C6 / ISOC8
Spindle taper	MT6 / 1:20
Spindle speed	42-1600 rpm (12 steps)
Metric threads range	0.25-14mm (24 kinds)
Inch threads range	0-40inch (27 kinds)
Moudle threads range	0.25-3.5 (16 kinds)
Max.travel of top slide	120mm
Max.travel of cross slide	220mm
Max.size of toolshank	20x20mm
Dia.of tailstock sleeve	65mm/75mm
Taper of tailstock sleeve	MT4/MT5
Max.travel of tailstock	130mm
Main drive motor	5.5kw		7.5kw
Coolant pump motor	0.125kw
Rapid motor	0.12kw
Packing size	2420/2920/342011501800mm
N.W./G.W.	1450/1800 kg, 1600/1950 kg, 1700/2100 kg	1500/1850 kg, 1650/2000 kg, 1800/2200 kg	1600/1950 kg, 1750/2100 kg, 1900/2300 kg

Standard accessories:

3-Jaw chuck, 4-Jaw chuck,

steady rest, follower rest,

work lamp, face plate,

longitudinal automatic trip,

oil gun,coolant system

Rapid feeding for 2 meters lathe

Optional accessories:

SINO DRO 2-axis

Live center

Quick change toolpost

Taper turning attachment

Leadscrew cover

Toolpost cover

Chuck cover

Gap bed type

7.5kw motor

Schneider electric components
