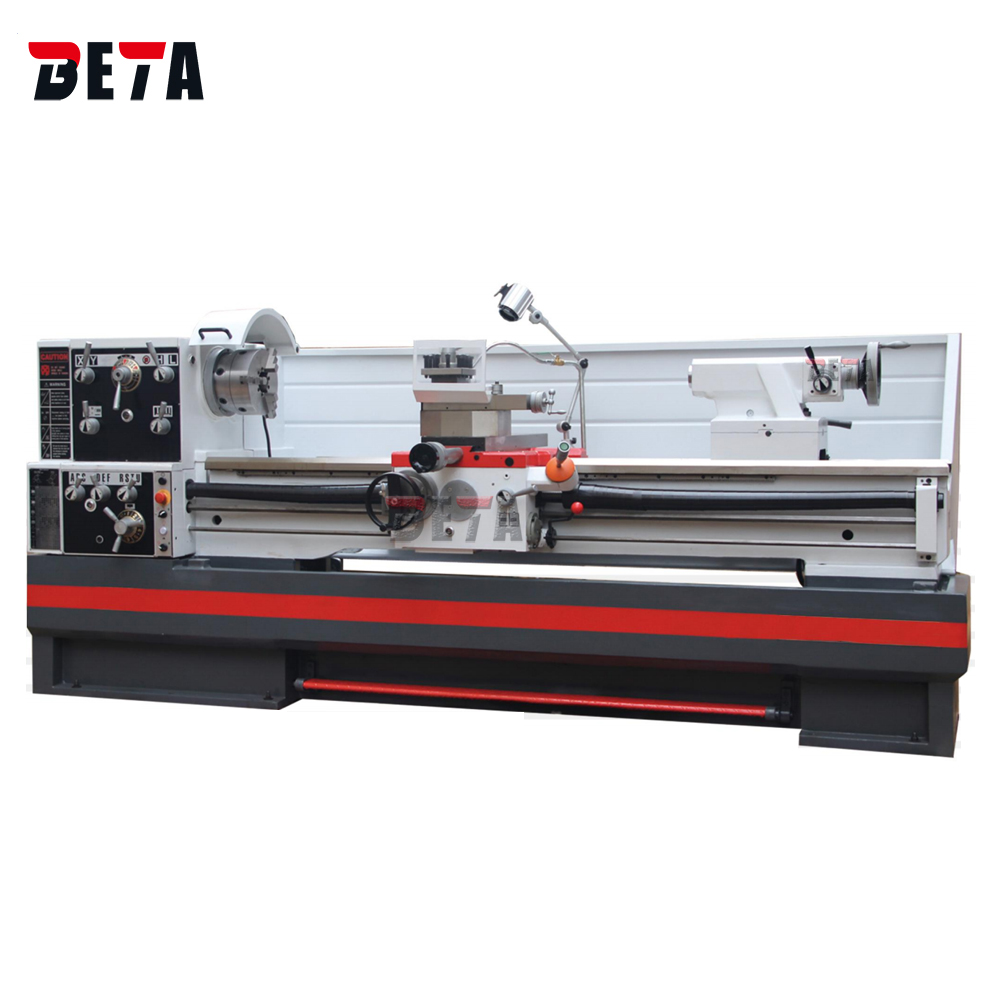

Universal lathe

C6253

Max. swing over bed 530mm
Spindle bore diameter 80mmmm
Distance between centers 1500/2000mm

INQUIRY

Features
Specification
CONFIGURATION

1.The spindle system is high in rigidity and accuracy.

2.The design of the main drive is optimized and the gears in the headstock are precision ground.

3.The noise of the machine is low.

4.The machine can turn many kinds of metric, inch, module and D.P. threads.

5. Automatic stopping device is used to realize automatic stop for the machine of a certain length workpiece, which is safe and reliable pedal braking device providing quick and effective stop while operating.

Model	C6253 x 1500	C6253 × 2000
Max. swing over bed	Φ530mm
Max. swing over cross slide	Φ329mm
Center height	Φ265mm
Distance between centers	1515/2015mm
Width of bed	400mm
Max.section of tool	25×25mm
Max.travel of cross slide	320mm
Max.travel of compound rese	200mm
Spindle bore	Φ82mm
Spindle nose	D1-8
Taper of spindle speed	ME90
Range of spindle speed	12 steps 20-1600r/min
Leadscrew pitch	6 mm or 4T.P.I.
Range of metric threads	0.25-7mm (24 kinds)
Range of inch threads	4-112 T.P.I.（50 kinds）
Range of Diametrical pitch	4-112 D.P. (50 kinds)
Range of module pitches	0.25-14 M.P.(34 kinds)
Dia. of tailstock sleeve	80mm
Travel of tailstock sleeve	180mm
Morse taper of tailstock sleeve	MT5
Power of main motor	7.5kw
Power of coolant pump	90W
Packing size(LWH)	(1500mm): 3035x1150x1900mm
	(2000mm): 3535x1150x1900mm
N.W/G.W	(1500mm): 3010/3400 kg
	(2000mm): 3180/3590 kg

Standard Accessories:

80mm spindle bore , 3-jaw self centering chuck , 4-jaw independent chuck , face plate ,

4-position electric toolpost, manual tailstock, change gears , steady rest & follow rest,

monoblock cast iron base, work light, coolant system, foot brake system,

reduction sleeve, dead center , tool box

Optional Accessories:

Chuck cover

Leadscrew cover

Toolpost cover

SINO digital readout 2 axis

Taper turning attachment

Live center

Quick change toolpost
