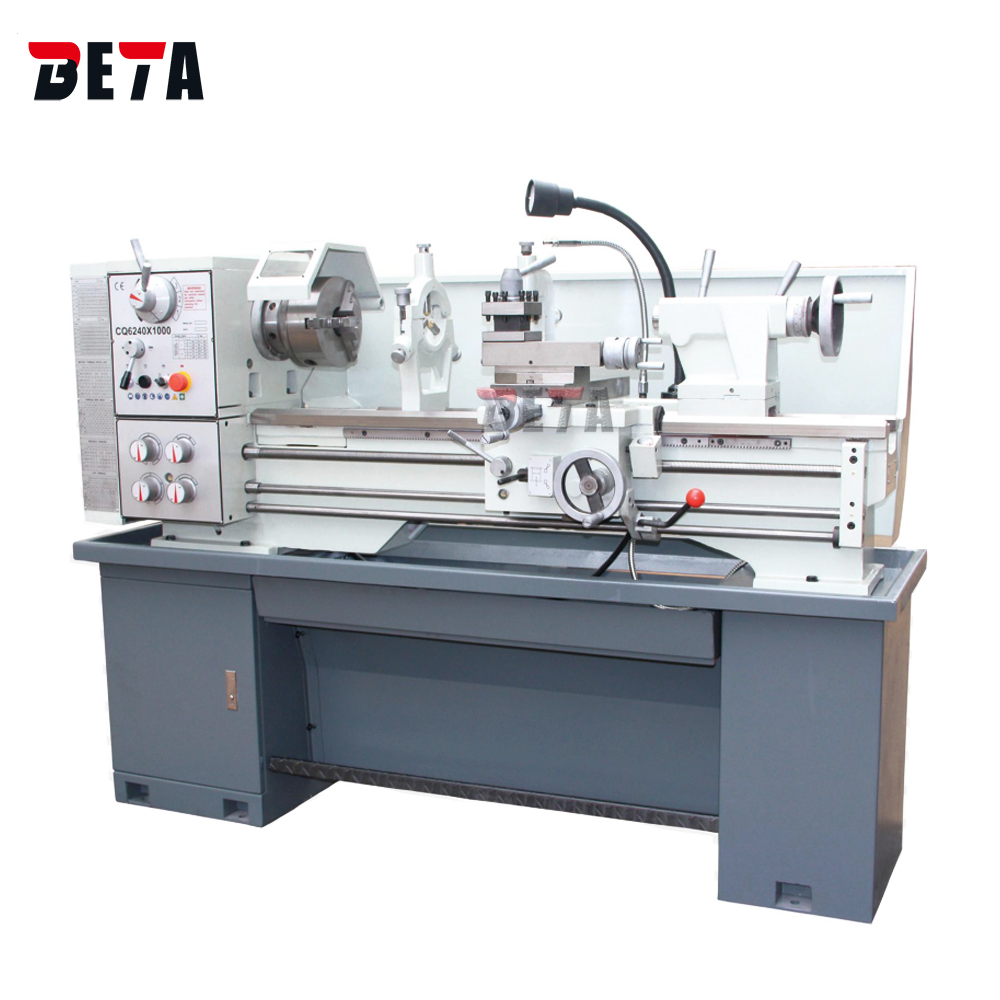

Universal lathe
CQ6240
Max. swing over bed 400mm
Spindle bore 52mm
Distance between centers 1000mm
  • Features
  • Specification
  • CONFIGURATION

Features:

1.Precision ground and supersonic frequency hardened bed ways.

2.The spindle is supported with precision roller bearing.

3.Strong power motor suited for heavy duty cutting.

4.Headstock gears are made of high quality steel ground and hardened.

5.Easy operating gear box has various feed and cutting function.

6.Removable gap is provided for larger diameter work.


Model
CQ6240
Max.swing over bed
400mm
Max.swing over cross slide
250mm
Max. swing over gap(DxW)
520x100mm
Distance between centers
1015mm
Width of bed
218mm
Cutting tool max. section
20x20mm
Total travel of cross slide
230mm
Total travel of top slide
120mm
Spindle bore
52mm
Spindle nose
D1-5
Spindle morse taper in nose,in sleeve
MT NO.6/MT.NO.4
Spindle speeds number
2x9 (18)
Spindle speeds range
65-1810rpm
Leadscrew diameter & thread
24mmx8TPlor pitch 3mm
Threads imperial pitches
4-60TPI
Threads metric pitches
0.4-7mm
Longitudinal feeds (imperial/metric)
0.0527-1.2912mm
Cross feeds (imperial/metric)
0.011mm-0.276mm
Total travel of tailstock quill
110mm
Tails stock quill
52mm
Taper tailstock quill
MT NO.4
Spindle drive motor
2.2kw
Coolant pump motor
40W
Packing size (LxWxH)
2010x870x1580mm
N.W./G.W.(kg)
640/750


Standard accessories:

52mm spindle bore
3-jaw self centering chuck
4-jaw independent chuck
face plate
4-position electric toolpost
manual tailstock
change gears
steady rest & follow rest
work light, coolant system
foot brake system
dead center


Optional accessories:

chuck cover
leadscrew cover
toolpost cover
digital readout 2 axis or 3 axis
quick change toolpost
taper turning attachment
live center
