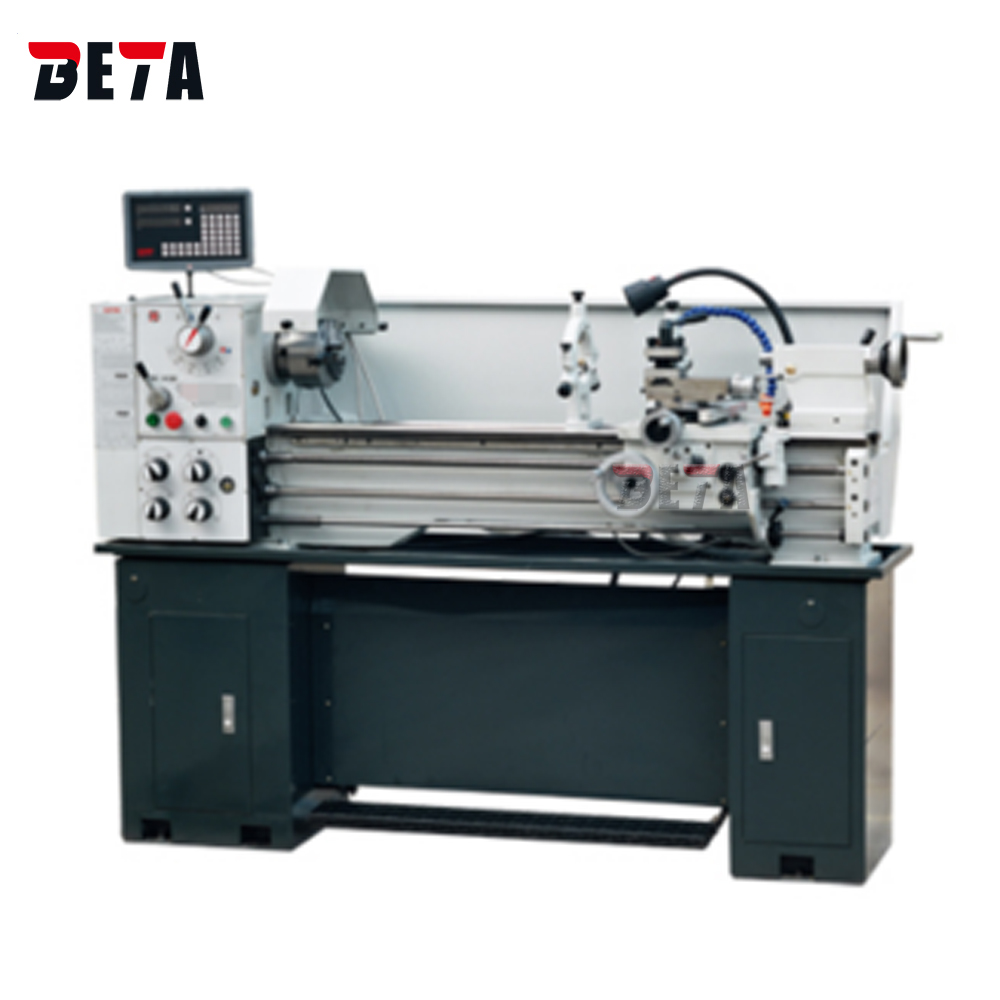

Universal lathe

GH1340G1

Bench metal lathe
Max. swing over bed 330mm
Spindle bore 38mm (51mm is optional)
Distance between centers 1000mm

Features
Specification
CONFIGURATION

Features:

1. Bench metal lathe is a small lathe that can complete the processing of lathes, drills, borings, metric and inch threads, and is suitable for the processing of metal and non-metal parts.

2. It is an instrument, light industrial machinery, motorcycle, auto parts and other industries and schools Ideal equipment for single-piece processing or mass production in teaching, automobile maintenance, home maintenance, scientific research units, etc.

Model	Unit	GH1340G1
Swing over bed	mm	φ330
Swing over carriage	mm	Φ195
Swing over gap	mm	Φ476
Width of bed-way	mm	186
Distance between centers	mm	1000
Taper of spindle		M.T.5
Spindle diameter	mm	Φ38 (Φ51 optional)
Step of speed		8
Range of speed	rpm	70~2000
Head		D1-4
Metric thread		26kinds (0.4~7mm)
Inch thread		34kinds(4~56T.P.I)
Moulder thread		16 kinds(0.35~5M.P)
Diametral thread		36 kinds(6~104D.P)
Longitudinal feeds	mm/r	0.052~1.392 (0.002”~0.0548”)
Cross feeds	mm/r	0.014~0.38 (0.00055”~0.015”)
Diameter of lead screw	mm	φ22(7/8”)
Pitch of lead screw		3mm or 8T.P.I
Saddle travel	mm	1000
Cross travel	mm	170
Compound travel	mm	74
Barrel travel	mm	95
Barrel diameter	mm	φ32
Taper of center	mm	M.T.3
Motor power	Kw	1.5(2HP)
Motor for coolant system’s power	Kw	0.04(0.055HP)
Machine(L×W×H)	mm	1920×750×760
Stand(left) (L×W×H)	mm	440×410×700
Stand(right) (L×W×H)	mm	370×410×700
Machine	Kg	524/550
Stand	Kg	111/115
Loading amount	sets	22 sets / 20’container

Standard accessories:

3-jaw chuck, 4-jaw chuck, 4-position electric toolpost, manual tailstock,

steady rest & follow rest, work light, coolant system, foot brake system,

splash guard, reduction sleeve, dead center, steel plate machine stand,

change gears, oil gun, wrenches

Optional accessories:

Chuck cover

Toolpost cover

Leadscrew cover

Face plate

2-axis digital readout

Live center

Drill chuck (wrench type)

America type Quick change toolpost

Taper turning attachment
