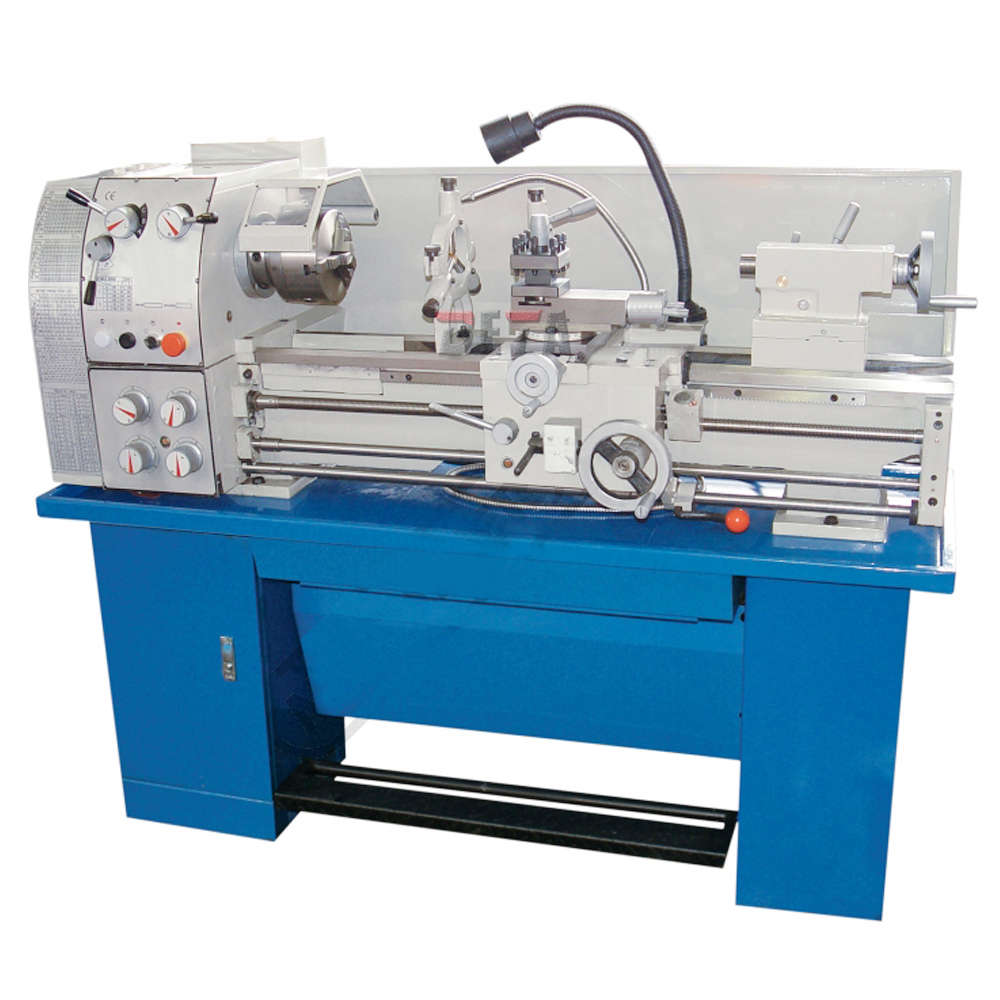

Universal lathe
CQ6230A
Max.swing over bed 310mm.
Spindle bore diameter 38mm.
Distance between centers 750/910/1000mm for choice.
INQUIRY
  • Features
  • Specification
  • CONFIGURATION

1.Grinded and hardened guide way.

2.High precision bearings and grinded gears ensure high accuracy.

3.Low noise.


Model
CQ6230A
Max.swing over bed
310mm
Max.swing over cross slide
180mm
Max.swing in gap
450mm
Max.length of workpiece
750/910/1000mm
Width of bed
181mm
Spindle bore
38mm
Taper of spindle Bore
MT5
Spindle speed range
65-1810(1400)rpm
Cross slide travel
130mm
Compound rest travel
75mm
Lead screw thread
8 T.P.I. or 3mm pitch
Cutting tool Max. section
16x16mm
Metric thread can be cut
0.4-7mm
Inch thread can be cut
4-60 T.P.I
Range of longitudinal feeds
0.0527-1.2912mm/rev
Range of cross feeds
0.011-0.276mm/rev
Quill travel
100mm
Quill taper
MT4
Main motor power
1.5kw
Coolant pump power
40W
Packing size
1930x760x1530mm
N.W./G.W.
540/645 kg


Standard accessories:

3-jaw self centering chuck
4-jaw independent chuck
face plate
4-position electric toolpost
manual tailstock
steady rest & follow rest
work light, coolant system
foot brake system
reduction sleeve, dead center


Optional accessories:

chuck cover
leadscrew cover
toolpost cover
digital readout
live center
drill chuck
