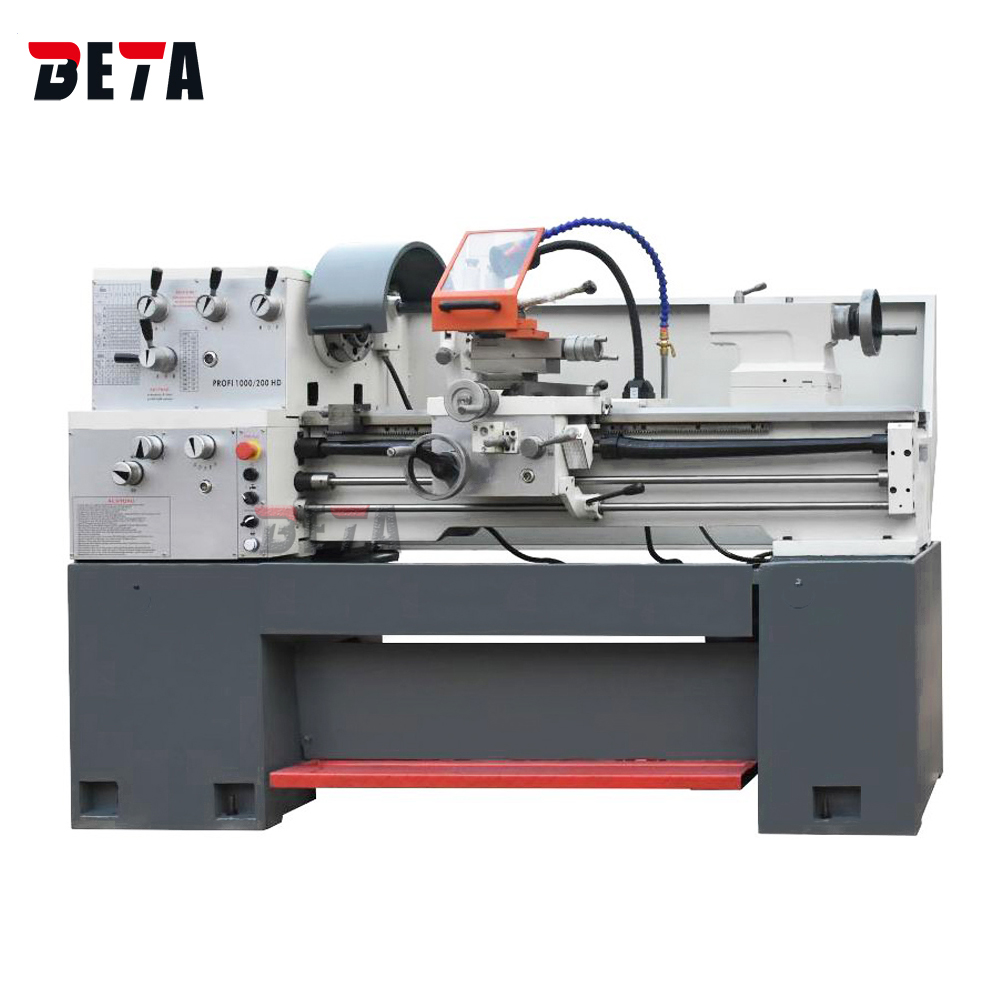

Universal lathe
C6240K
Max. swing over bed 400mm
Spindle bore 51mm
Distance between centers 1000mm
Variable speed can be ordered
INQUIRY
  • Features
  • Specification
  • CONFIGURATION

1.Fine grinded and hardened bed guideways.

2.High precision spindle, low noise.

3.Good quality bearings and gears in headstock.

4.Cast iron stand ensure high rigidity of the whole machine.

5.Variable speed can be ordered as optional.


ItemC6240K
Max.swing over bed400mm
Max.swing over cross slide250mm
Max.swing in gap570mm
Max.length of workpiece1000mm
Width of bed260mm
Spindle speed range(12 changes)40-1800rpm
Spindle bore φ51mm
Spindle noseD5
Taper of spindle BoreMT6
Center height204mm
Threads metric pitches0.4-7mm/37kinds(Metric lathe)
Threads imperial pitches4-56TPI/28kinds(Metric lathe)
Compound rest travel90mm
Cross slide travel210mm
Max.section of tool16*16mm
Longitudinal feeds range0.043-0.653mm/rev/40kinds(Metric lathe) 0.0012-0.0294inch/rev/36kinds(inch lathe)
Cross feeds range0.024-0.359mm/rev/39kinds
External diameter45mm
Max.travel110mm
Taper of boreMT3
Main motor power2.2kw
Coolant pump power40w
Packing size(L*W*H)1990*760*1410mm
Net weight1350kg
Gross weight1550kg


Standard accessories:

51mm spindle bore
160mm 3-jaw self centering chuck
200mm 4-jaw independent chuck
face plate 250mm
4-position electric toolpost
manual tailstock
change gears
steady rest & follow rest
monoblock cast iron base
work light, coolant system
foot brake system
reduction sleeve, dead center

thread dial indicator


Optional accessories:

bigger size 3-jaw chuck, 4-jaw chuck
chuck cover
leadscrew cover
toolpost cover
digital readout 2 axis or 3 axis
quick change toolpost
taper turning attachment
live center
drill chuck
