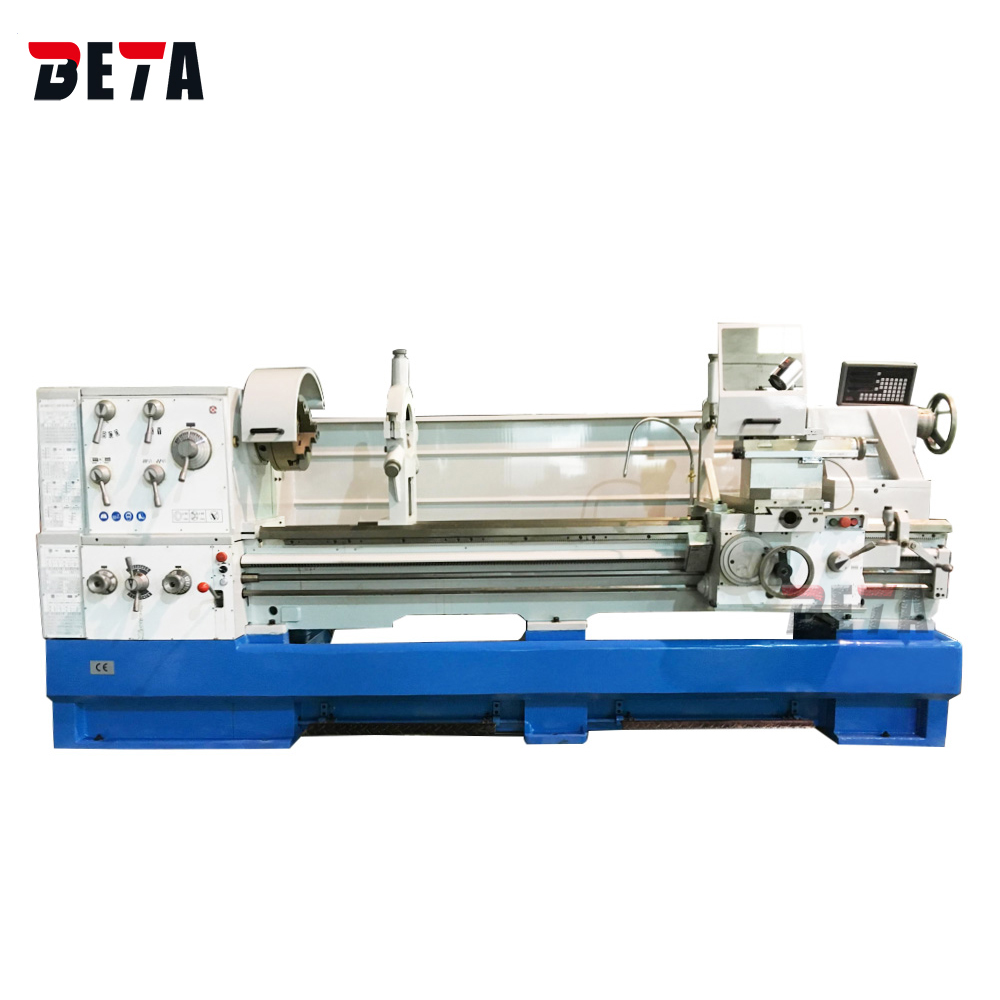

CAPACITY

Swing Over Slide

Φ660mm
 Φ800mm

Swing Over Cross Slide

Φ440mm

Φ570mm

Swing in Gap Diameter

Φ900mm

Φ1035mm

Length of Gap

250mm

Center Height

330mm

Distance Between Centers

1500mm/2000mm/3000mm

Width of Bed

400mm

400mm

Max. Section of Tool

25mm × 25mm

Max. Travel of Cross Slide

368mm

420mm

Max. Travel of Compound Rest

230mm

230mm

HEADSTOCK

Spindle Bore

Φ105mm

Spindle Nose

D1-8

Taper of Spindle Bore

Φ113mm(1:20)/MT5

Spindle Speed Number

16

Range of Spindle Speed

25~1600rpm

25~1600rpm

FEEDS AND THREADS

Leadscrew Pitch

Φ40mm×2T.P.I. or Φ40mm×12mm

Inch Threads Range

7/16~80T.P.I. (54 kinds)

Metric Threads Range

0.45~120mm (54 kinds)

Diametrical Pitches Range

7/8~160DP (42 kinds)

Module Pitches Range

0.25~60MP (46 kinds)

Longitudinal Feeds Range in Metric Lead Screw

0.044~1.48mm/rev (25 kinds)

Longitudinal Feeds Range in Inch Lead Screw

0.00165"~0.05497"/rev (25 kinds)

Cross Feeds Range in Metric Lead Screw

0.022~0.74mm/rev (25 kinds)

Cross Feeds Range in Inch Lead Screw

0.00083"~0.02774"/rev (25 kinds)

TAILSTOCK

Quill travel

235mm

Quill diameter

Φ90mm

Quill taper

MT5

MOTOR

Main motor power

7.5kW(10HP)

Coolant pump power

0.09kW (1/8HP)

DIMENSION AND WEIGHT

Overall Dimension (L×W×H)

321x123x160cm(1500mm)

321x123x167cm(1500mm)

371x123x160cm(2000mm)

371x123x167cm(2000mm)

471x123x160cm(3000mm)

471x123x167cm(3000mm)

Packing Size (L×W×H)

324x114x184cm(1500mm)

324x114x191cm(1500mm)

374x114x184cm(2000mm)

374x114x191cm(2000mm)

474x114x184cm(3000mm)

474x114x191cm(3000mm)

Net Weight

3060/3345/3710kg

3220/3505/3870kg

Gross Weight

3535/3835/4310kg

3705/4005/4480kg
