1.Grinded and hardened guide way.
2.High precision bearings and grinded gears ensure high accuracy.
3.Low noise.
4.Monoblock cast iron base ensure good rigidity.

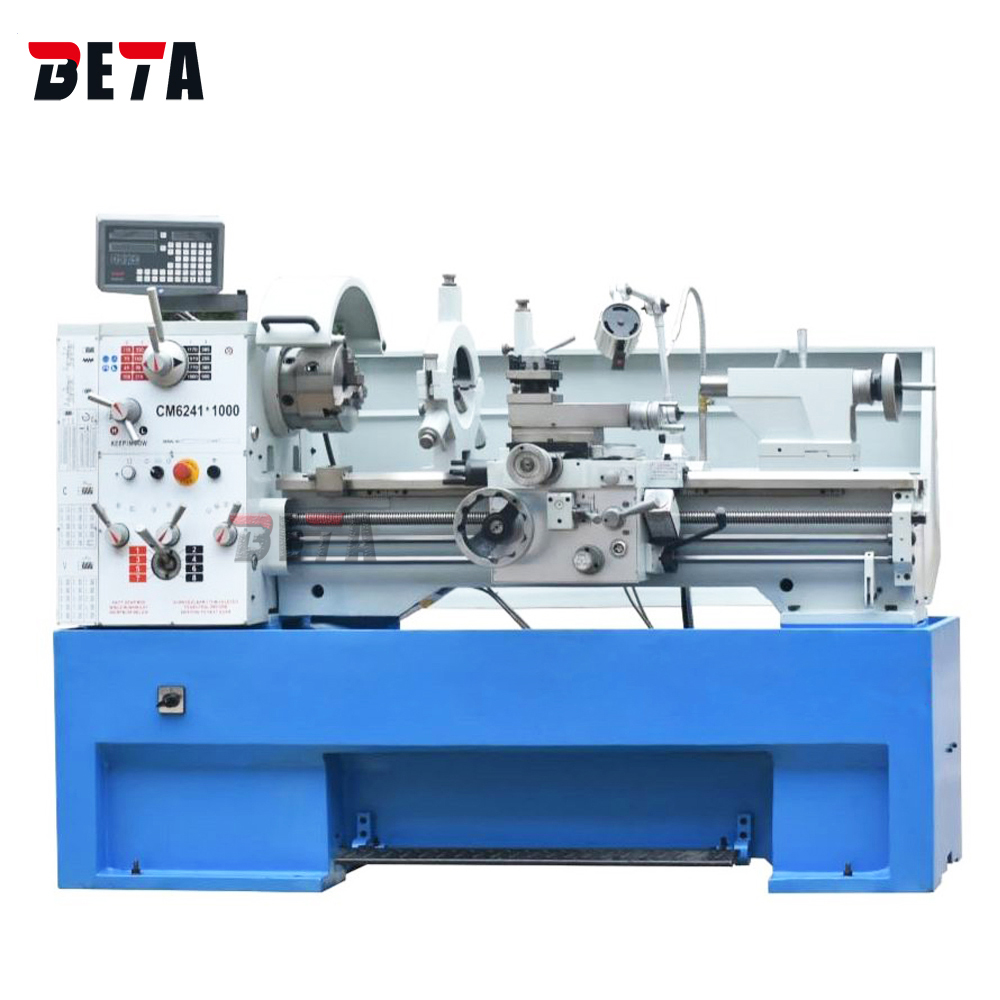

| Model | CM6241x1000 | CM6241×1500 |
| Max. swing over bed | Φ410mm | |
| Max. swing over cross slide | Φ255mm | |
| Max. swing over gap | Φ580mm | |
| Center height | 205mm | |
| Distance between centers | 1000mm/1500mm | |
| Width of bed | 250mm | |
| Max.section of tool | 20mm×20mm | |
| Max.travel of cross slide | 210mm | |
| Max.travel of compound rese | 140mm | |
| Spindle bore | Φ52mm | |
| Spindle nose | D1-6 | |
| Taper of spindle speed | M.T.#6 | |
| Range of spindle speed | 16changes 45-1800r/min | |
| Leadscrew pitch | 4 T.P.I. | |
| Range of metric longitudinal feeds range | 0.05-1.7mm/rev(17 Nos) | |
| Range of inch longitudinal feeds | 0.002"-0.067"/rev (17 Nos) | |
| Range of metric cross feeds | 0.025-0.85mm/rev (17 Nos) | |
| Range of inch cross feeds | 0.001"-0.0335"/rev (17 Nos) | |
| Range of metric threads | 0.2-14mm(NO. 39) | |
| Range of inch threads | 2-72 T.P.I.（NO. 45） | |
| Range of Diametrical pitch | 8-44D.P.(21Nos) | |
| Range of module pitches | 0.3-3.5 M.P.(18Nos) | |
| Dia. of tailstock sleeve | 50mm | |
| Travel of tailstock sleeve | 120mm | |
| Morse taper of tailstock sleeve | M.T.#4 | |
| Power of main motor | 2.2/3.3kw | |
| Power of coolant pump | 120W / 3PH | |
| Overall diamension(L*W*H) | (1000mm):1940mm×850mm×1320mm | |
| (1500mm): 2440mmx850mmx1320mm | ||
| Packing size(L*W*H) | (1000mm):2070mm×926mm×1635mm | |
| (1500mm):2575mmx926mmx1635mm | ||
| N.W/G.W | (1000mm): 1350/1550kg | |
| (1500mm): 1550/1800kg | ||
thread dial indicator
