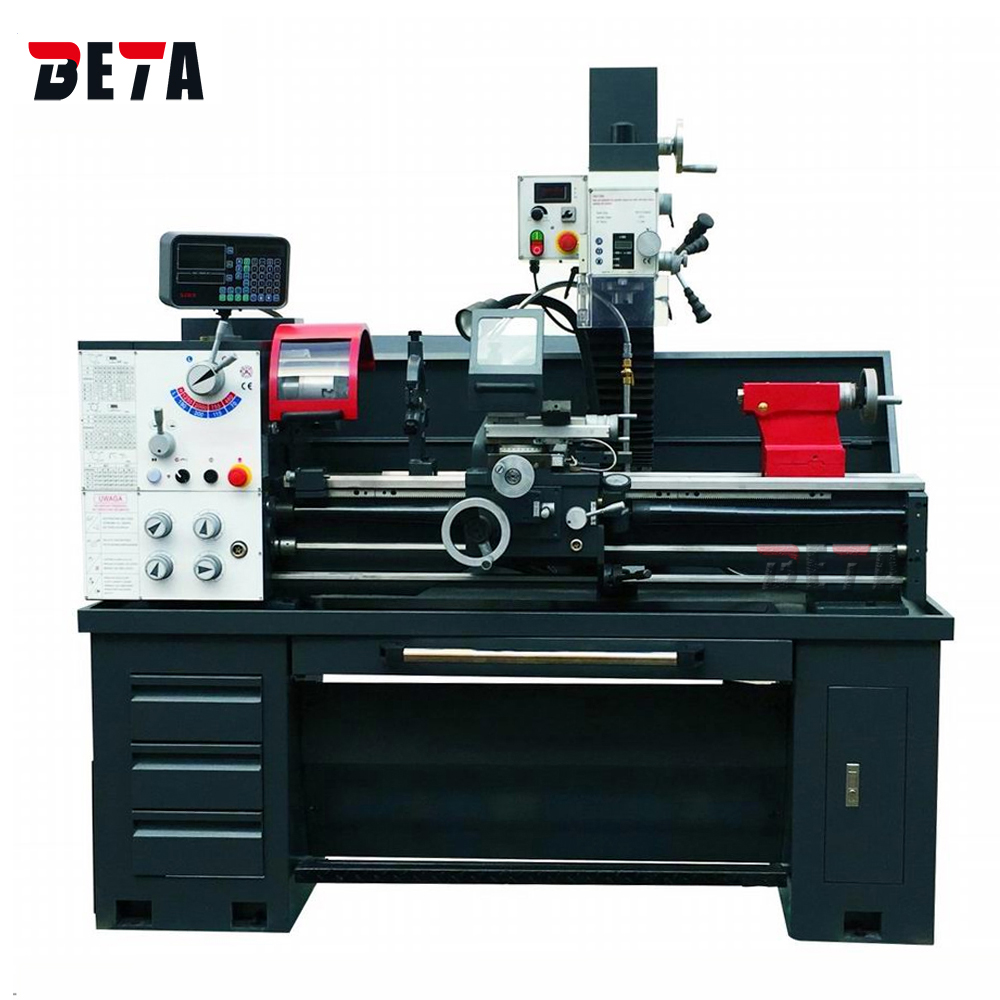

Universal lathe

CQ6232GZ

Max.swing over bed 330mm
Spindle bore 38mm
Distance between center 1000mm
Combination lathe drilling milling together

1.Grinded and hardened guide way.

2.High precision bearings and grinded gears ensure high accuracy.

3.Low noise.

4.Multi-function lathe machine with milling driling head.

5.Variable speed for milling head.

6.Variable speed for lathe machine is optional.

Item	CQ6232GZ
Lathe part
Max.swing over bed	330mm
Max.swing over cross slide	198mm
Max.swing in gap	430mm
Max.length of workpiece	1000mm
Spindle speed range	70-2000rpm
Spindle bore	φ38mm or φ51mm
Taper of spindle Bore	MT5
Threads metric range	0.4-7mm
Threads imperial range	4-56 TPI
Longitudinal feeds range	0.052-0.392 mm/rev
Cross feeds range	0.014-0.380 mm/rev
Max. travel of tailstock quill	100mm
Taper of bore	MT3
Main motor power	1.1kw/1.5kw
Unitary packing of lathe	1480/1680/19407501400mm
Asunder packing of lathe	500/540/620 kg
Gross weight of lathe	550/590/670 kg
Drilling Milling part
Max.drilling capacity	25mm
Max. distance from bench to spindle nose	232mm
Spindle speed steps	variable speed
Spindle speed range	100-1000rpm
Worktable size	340*120mm
Max. travel of spindle quill	80mm
Max. end milling capacity	25mm
Max. face milling capacity	50mm
Headstock stroke	230mm
Motor power	600W/1.1kw
Net weight	130 kg
Asunder packing of milling head	1060630740mm
Unitary packing of mill combo	1680/19408501850rpm

Standard accessories:

φ38mm spindle bore

Separated sheet iron feet

3-jaw self-centering chuck

4-jaw independent chuck

Face plate

Steady rest & Follow rest

Work light

Coolant system

Foot brake

Dead center

Thread chasing dial

Full-length splash guard

Chip tray

Chuck cover

Tool box & tools
