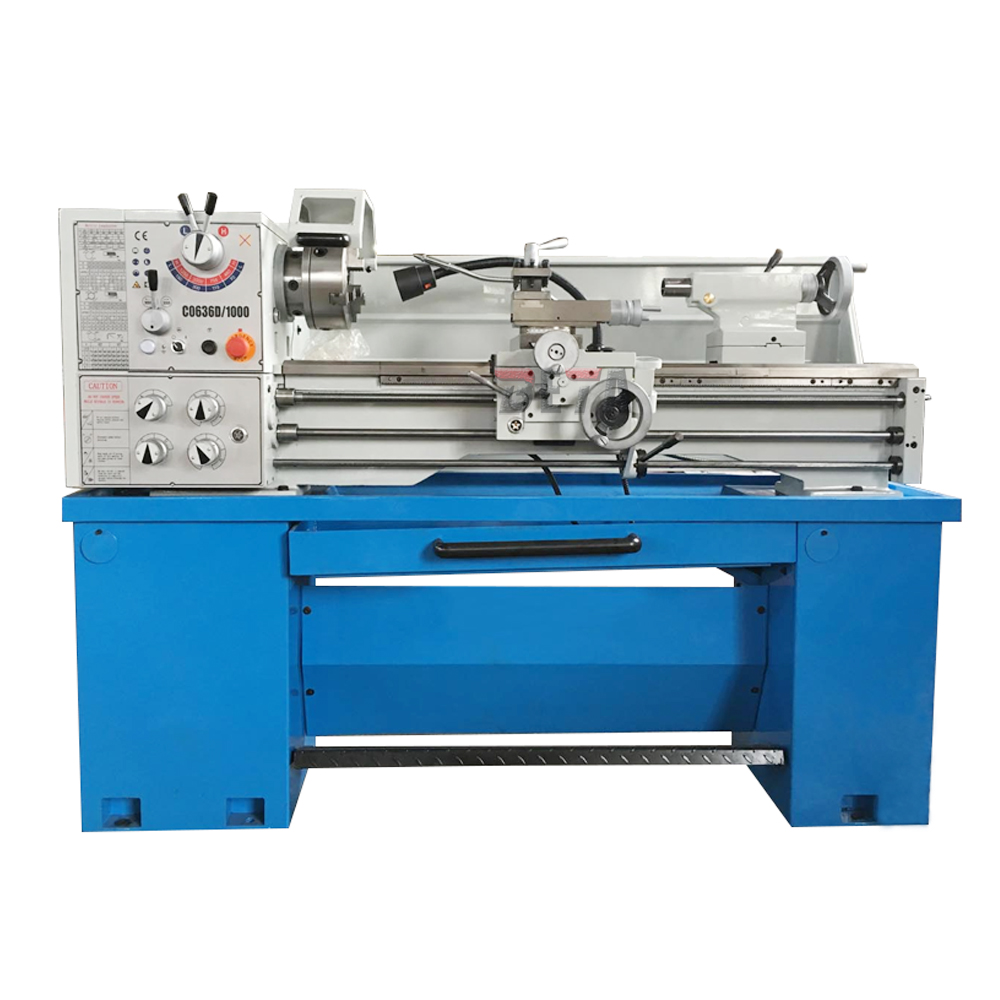

Universal lathe
C0636D
Max. swing over bed 360mm
Spindle bore diameter 52mm
Distance between centers 1000mm
  • Features
  • Specification
  • CONFIGURATION

1.Grinded and hardened guide way.

2.High precision bearings and grinded gears ensure high accuracy.

3.Low noise.


Model
C0636D
Max.swing over bed
360mm
Max.swing over cross slide
224mm
Max.swing in gap
502mm
Length in gap
210mm
Center height
180mm
Max.length of workpiece
1000mm
Width of bed
187mm
Spindle bore
52mm
Taper of spindle Bore
MT5
Spindle speed step
8 steps
Spindle speed range
70-2000rpm
Cross slide travel
170mm
Compound rest travel
95mm
Lead screw thread
8 T.P.I. or 3mm pitch
Cutting tool Max. section
16x16mm
Thread imperial pitches
34 Nos. 4-56 T.P.I
Thread metric pitches
26 Nos. 0.4-7 M.P
Longitudinal feeds imperial
32 Nos. 0.002-0.548"/rev
Longitudinal feeds metric
32 Nos. 0.052-0.392"/rev
Cross feeds imperial
32 Nos. 0.007-0.0187"/rev
Cross feeds metric
32 Nos. 0.014-0.038"/rev
Quill travel
100mm
Quill taper
MT4
Main motor power
1.5kw
Coolant pump power
40W
Packing size
1930x760x1530mm
N.W./G.W.
540/645 kg


Standard accessories:

3-jaw self centering chuck
4-jaw independent chuck
4-position electric toolpost
manual tailstock
change gears
steady rest & follow rest
work light, coolant system
foot brake system
reduction sleeve, dead center


Optional accessories:

chuck cover
leadscrew cover
toolpost cover
digital readout 2 axis or 3 axis
quick change toolpost
taper turning attachment
live center
drill chuck
