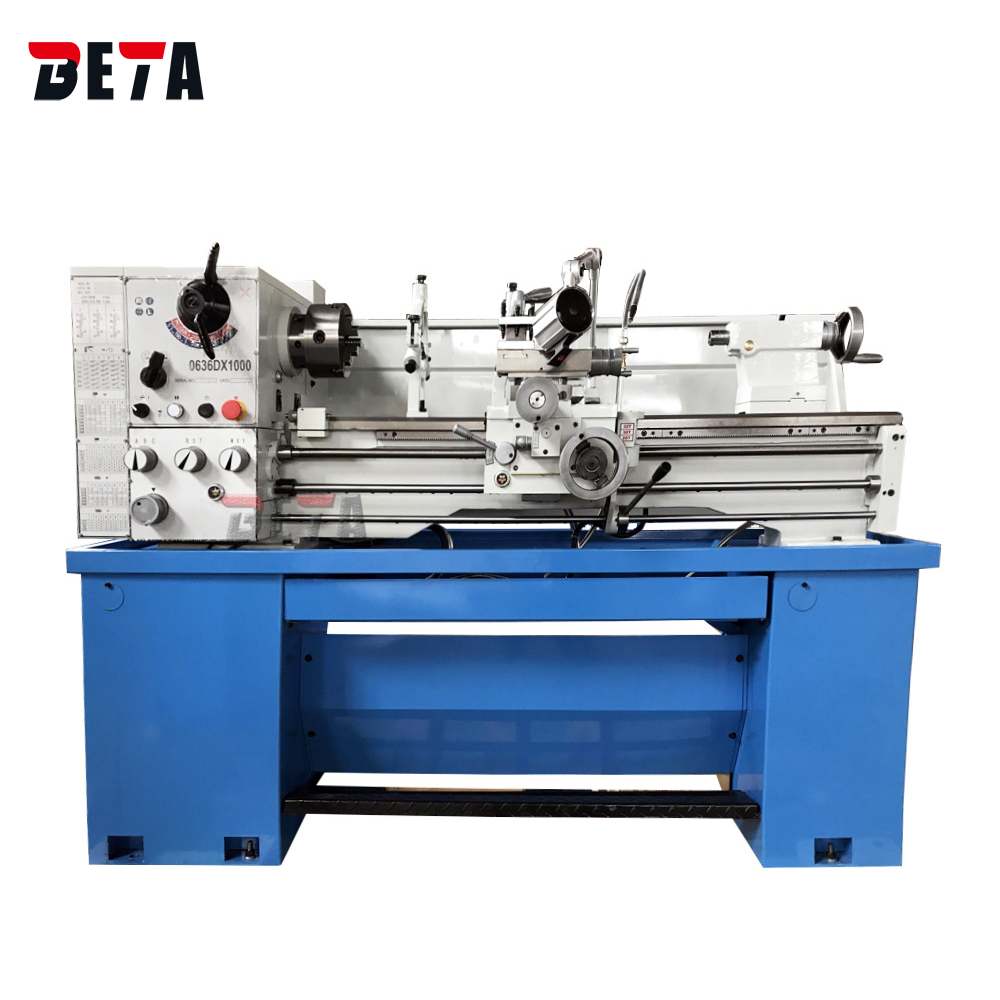

Universal lathe
CQ6236D
Max. swing over bed 360mm
Spindle bore diameter 38mm
Distance between centers 1000mm
No need to change gears
INQUIRY
  • Features
  • Specification
  • CONFIGURATION

1.Grinded and hardened guide way.

2.High precision bearings and grinded gears ensure high accuracy.

3.Low noise.

4.No need to change gears.

ItemC0632DC0636D
Max.swing over bed330mm360mm
Max.swing over cross slide198mm212mm
Max.swing in gap476mm491mm
Max.length of workpiece1000mm
Width of bed187mm
Spindle speed range70-2000rpm or 90-2000rpm
Spindle boreφ38mm or φ51mm
Spindle noseD1-4 or D1-5
Taper of spindle BoreMT5 or MT6
Center height166mm178mm
Threads metric pitches0.1-7mm/44kinds
Threads imperial pitches4-112TPI/56kinds
Threads diametral pitches16-112DP/32kinds
Threas module pithes0.1-1.75MP/34kinds
Compound rest travel90mm
Cross slide travel170mm
Max.section of tool16*16mm
Longitudinal feeds range0.046-3.249mm/rev/（Metric lathe)                   0.00168-0.11750in/rev(inch lathe)
Cross feeds range0.01-0.7033mm/rev/（Metric lathe)                  0.00046-0.03231in/rev (inch lathe)
External diameter32mm
Max.travel100mm
Taper of boreMT3
Main motor power1.5kw
Coolant pump power40w
Packing size(L*W*H)1950*750*1500mm
Net weight550/600kg
Gross weight650/700kg


Standard accessories:

38mm spindle bore
160mm 3-jaw self centering chuck
200mm 4-jaw independent chuck
face plate 250mm
4-position electric toolpost
manual tailstock
change gears
steady rest & follow rest
monoblock cast iron base
work light, coolant system
foot brake system
reduction sleeve, dead center

thread dial indicator


Optional accessories:

51mm spindle bore diameter
bigger size 3-jaw chuck, 4-jaw chuck
chuck cover
leadscrew cover
toolpost cover
digital readout 2 axis or 3 axis
quick change toolpost
taper turning attachment
live center
drill chuck
