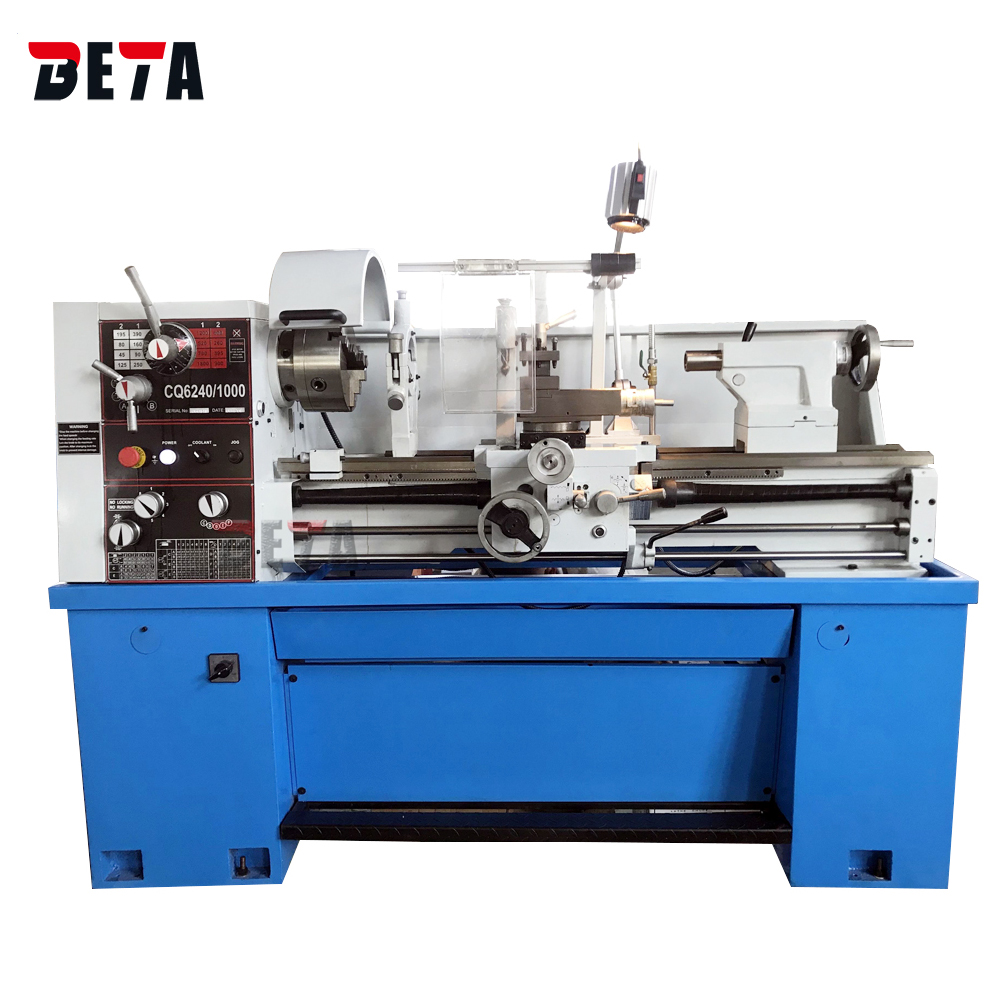

Universal lathe
CQ6240F
Max. swing over bed 400mm
Spindle bore 38mm, 51mm is optional
Distance between centers 1000mm
INQUIRY
  • Features
  • Specification
  • CONFIGURATION

1.Fine grinded and hardened bed guideways.

2.High precision spindle, low noise.

3.Good quality bearings and gears in headstock.

4.Cast iron stand ensure high rigidity of the whole machine.

5.Variable speed can be ordered as optional.


ItemCQ6236FCQ6240F
Max.swing over bed356mm400mm
Max.swing over cross slide220mm264mm
Max.swing in gap506mm550mm
Max.length of workpiece1000mm
Width of bed206mm
Spindle speed range(16 changes)45-1800rpm
Spindle boreφ38mm or φ51mm
Spindle noseD4 or D5
Taper of spindle BoreMT5 or MT6
Center height178mm200mm
Threads metric pitches0.4-7mm/28kinds(Metric lathe)                         0.45-7.5mm/22kinds(inch lathe)
Threads imperial pitches

4-56TPI/28kinds(Metric lathe)

4-112TP/40kinds(inch lathe)

Compound rest travel90mm
Cross slide travel150mm
Max.section of tool16*16mm
Longitudinal feeds range

0.043-0.653mm/rev(Metric lathe)

0.0012-0.0297in/rev(inch lathe)

Cross feeds range0.024-0.359mm/rev/39kinds
External diameter45mm
Max.travel100mm
Taper of boreMT3
Main motor power1.5/2.4kw
Coolant pump power40w
Packing size(L*W*H)1950*750*1500mm
Net weight700kg
Gross weight800kg


Standard accessories:

38mm spindle bore
160mm 3-jaw self centering chuck
200mm 4-jaw independent chuck
face plate 250mm
4-position electric toolpost
manual tailstock
change gears
steady rest & follow rest
monoblock cast iron base
work light, coolant system
foot brake system
reduction sleeve, dead center

thread dial indicator


Optional accessories:

51mm spindle bore diameter
bigger size 3-jaw chuck, 4-jaw chuck
chuck cover
leadscrew cover
toolpost cover
digital readout 2 axis or 3 axis
quick change toolpost
taper turning attachment
live center
drill chuck
