1.High-precision spindle, low noise, high-quality electronic control system.
2.All-steel gear, double the torque in low-speed gear.
3.Good quality carriage and 4-position toolpost.
4.Variable spindle speed 50-2500rpm.

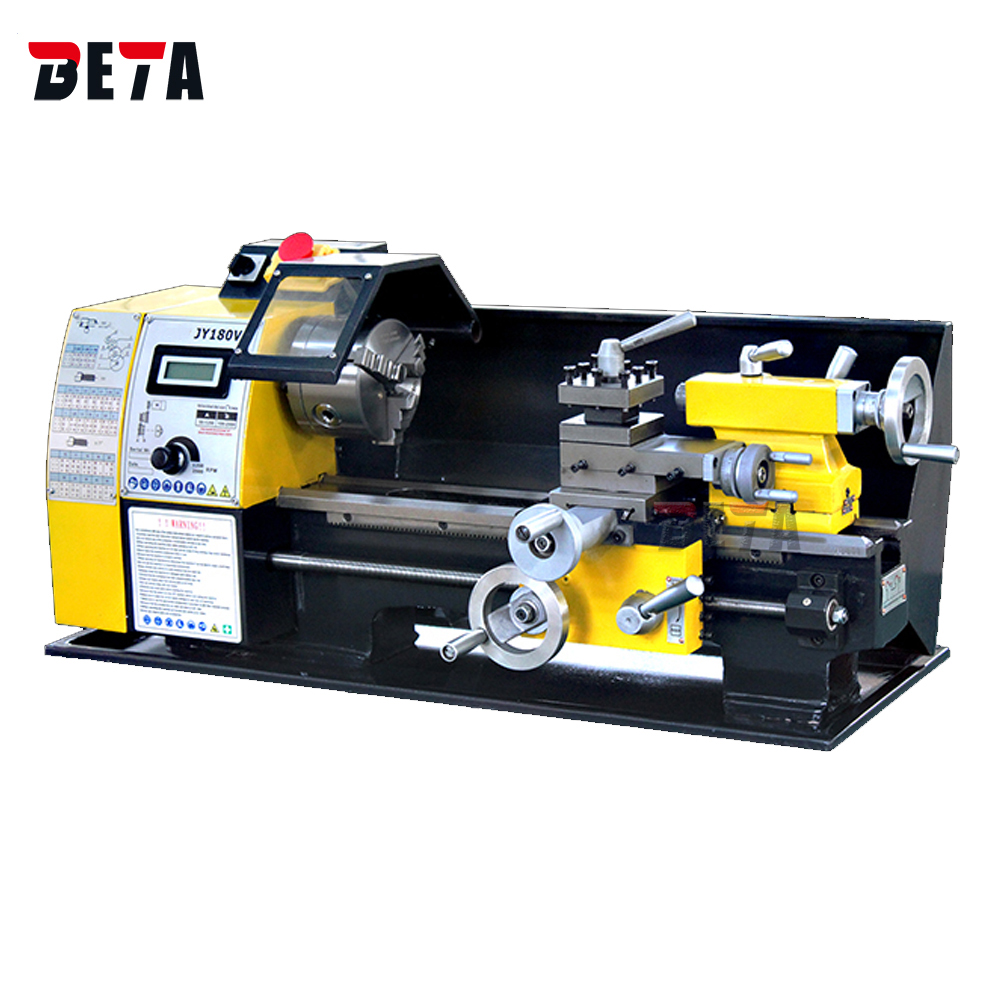

Model | JY180V |
Distance between centers | 300mm |
Swing over bed | 180mm |
Swing over cross slide | 110mm |
Spindle bore | 20mm |
Number of spindle speeds | variable speed |
Range of spindle speeds | 50-2500rpm |
Range of inch threads | 8-44 I/n” 8 kinds |
Range of metric threads | 0.5-3.0mm 10 kinds |
Top slide travel | 55mm |
Cross slide travel | 75mm |
Tailstock quill travel | 60mm |
Taper of tailstock quill | MT2 |
Motor | 600W Brushless Motor |
Packing size | 800*450*450mm |
Net /Gross weight | 60/75 kg |
Standard accessories:
3-jaw chuck,
chuck cover,
4-station toolpost,
toolpost cover,
tailstock,
change gears,
oil gun,
wrenches & tool box
Optional accessories:
machine stand,
SINO DRO,
work lamp,
coolant pump,
turning tools,
4-jaw chuck,
live center,
drill chuck,
drill bits
