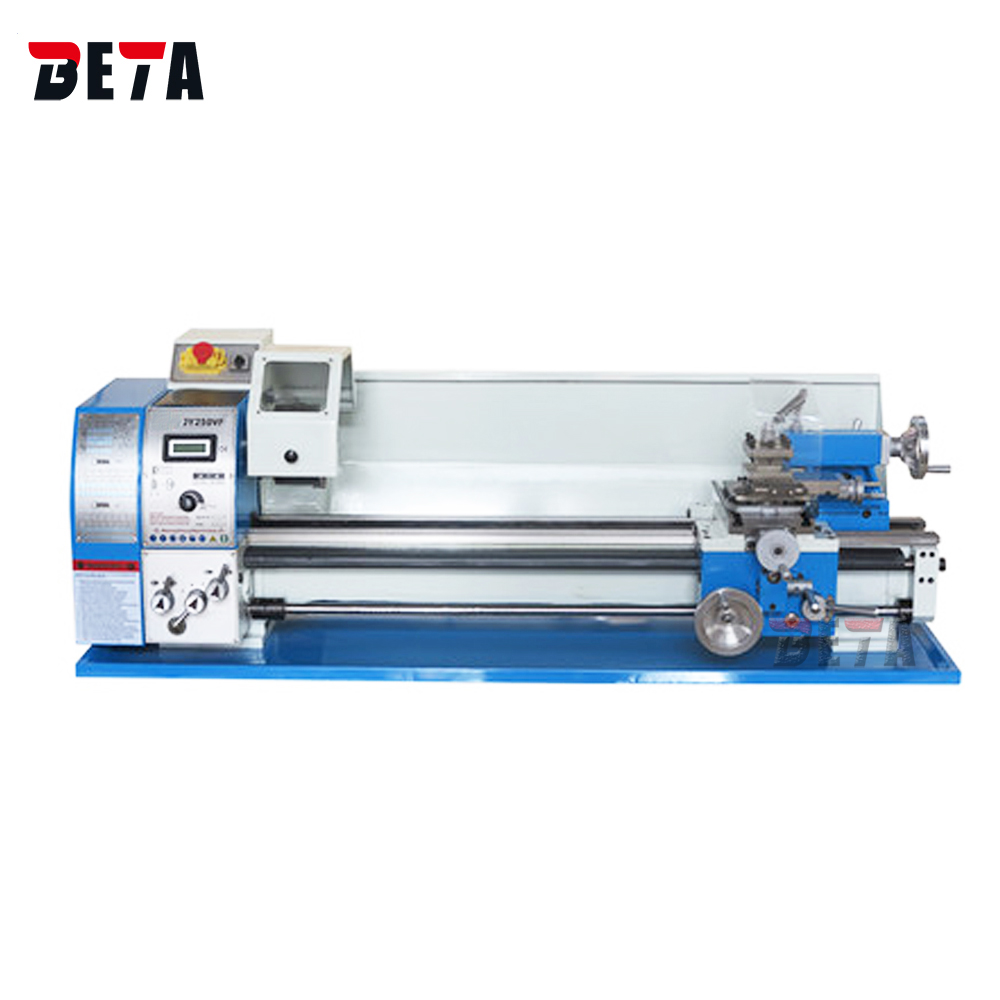

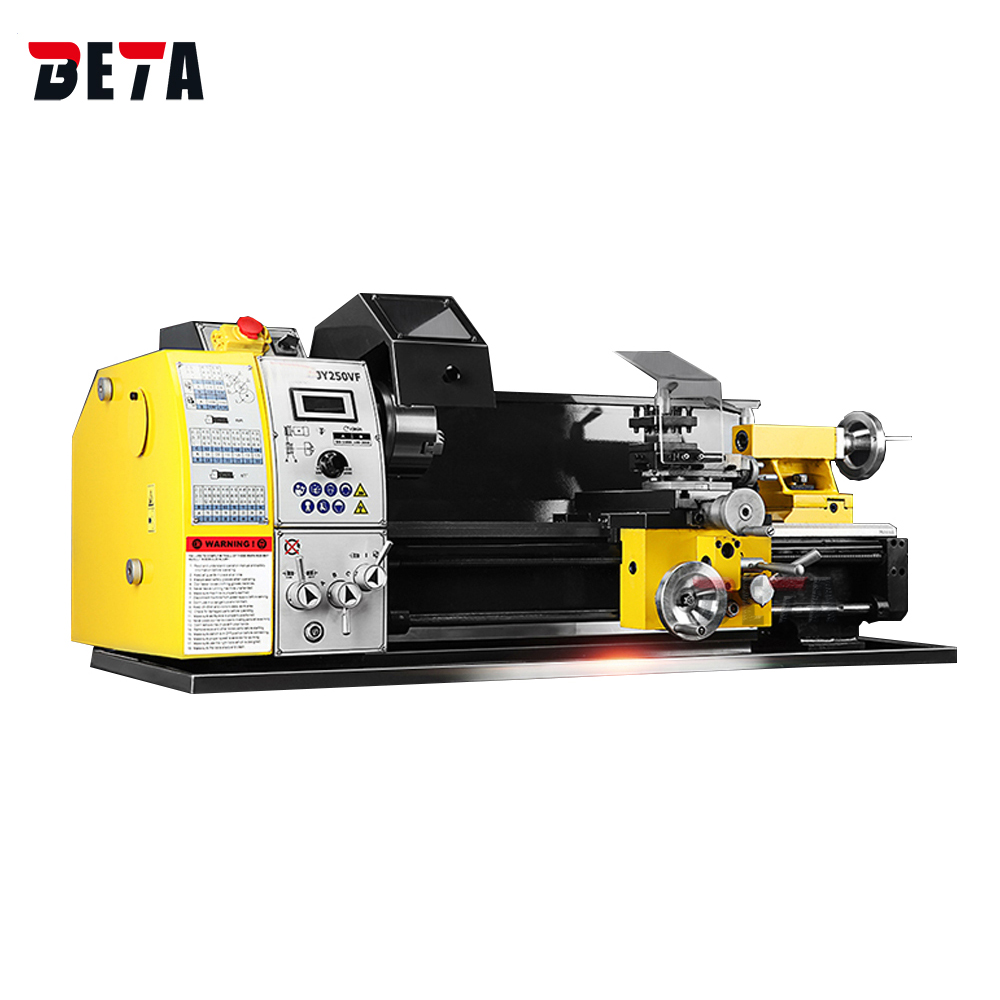

Small manual lathe
JY250VF
Max.swing over bed 250mm
Spindle bore 26mm
Distance between centers 550/750mm for choice
  • Features
  • Specification
  • CONFIGURATION

1.Adopt two ways of quick handle and screw to lock, effectively improve working efficiency.

2.Hardened V guide rail, the quenching depth is not less than 2mm, dust proof, oil proof, water proof.
3.With spindle speed RPM display screen, stepless speed adjustment, convenient for processing.

4.Lathe part can be ordered according to buyer's requirements.

5.High precision SKF bearings, low noise.

6.C type spindle 26mm spindle diameter with 3-jaw chuck

7.Control system adopts high quality famous brand electrical components.

8.CE standard electrical control system with emergency stop switch.

9.High quality carriage and 4-position toolpost.

10.High rigidity hardened guide way with serial number



Model

JY250VF

Distance between centers

550mm/750mm

Swing over bed

250mm

Swing over cross slide

150mm

Spindle bore

26mm

Number of spindle speeds

variable speed

Range of spindle speeds

50-2000rpm

Range of inch threads

8-56 I/n”      18 kinds

Range of metric threads

0.2-3.5mm     18 kinds

Top slide travel

70mm

Cross slide travel

115mm

Tailstock quill travel

70mm

Taper of tailstock quill

MT2

Motor

750W   Brushless Motor

Packing size

1320/1500*570*610mm

Net /Gross weight

140/160kg ,   170/190 kg


Standard accessories:

3-jaw chuck,

 chuck cover,

4-station toolpost,

toolpost cover,

tailstock,

change gears,

oil gun,

wrenches & tool box



Optional accessories:

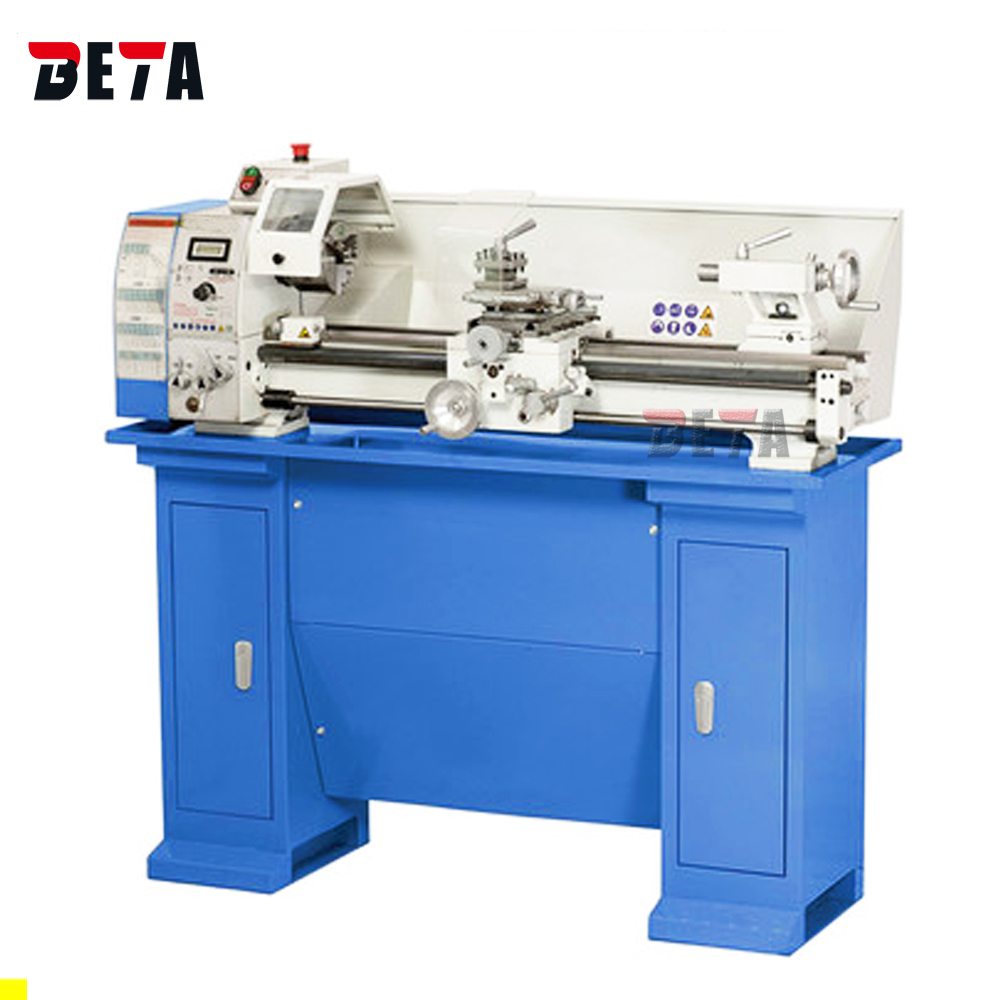

machine stand,

SINO DRO,

work lamp,

coolant pump,

turning tools,

4-jaw chuck,

live center,

drill chuck,

drill bits
