1. Full gears 12 steps speed change, no need to change the belt position.
2.CE standard electrical components, 24V low voltage control, emergency stop switch.
3.Famouns electrical components.
4.AC brushless motor 220V or 380V voltage.
5.Longitudinal and cross auto-feeding.

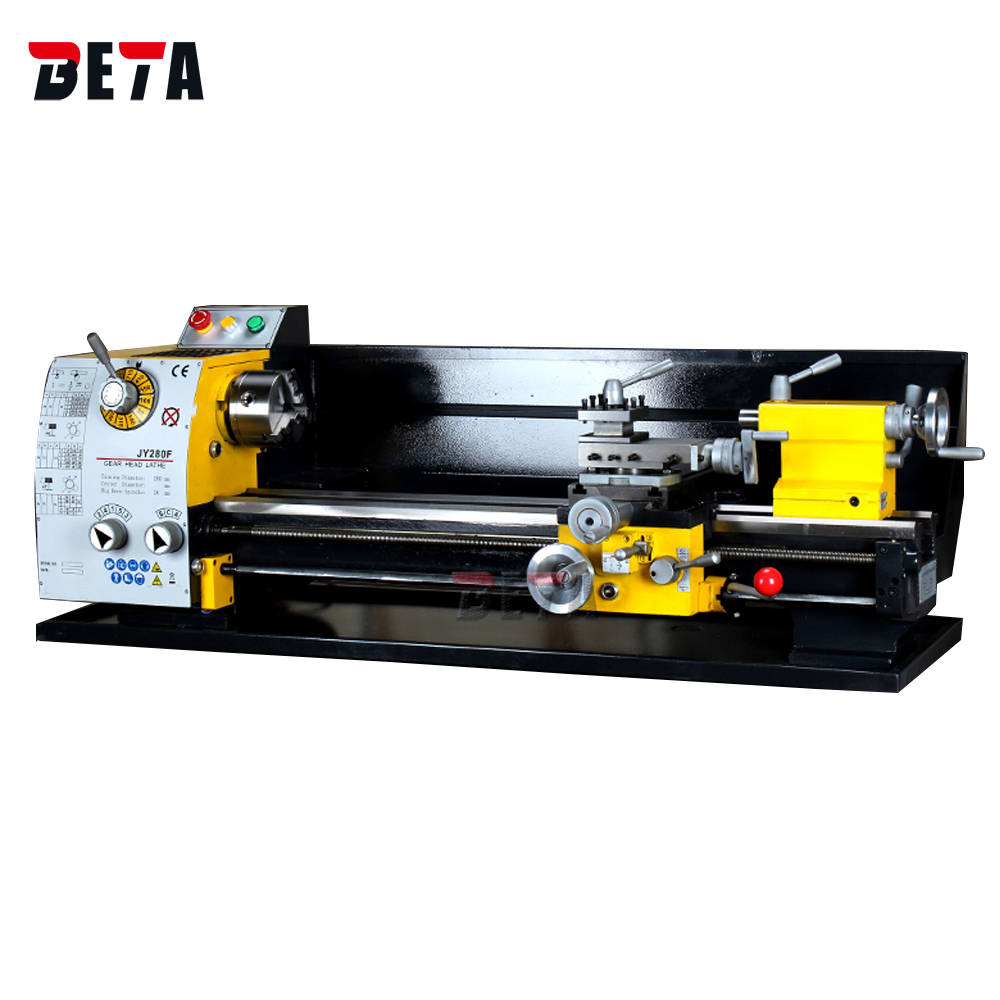

Model | JY280F |
Distance between centers | 815mm |
Swing over bed | 280mm |
Swing over cross slide | 160mm |
Spindle bore | 26mm |
Number of spindle speeds | 12 steps |
Range of spindle speeds | 80-1600rpm |
Range of inch threads | 12-96 I/n” 10 kinds |
Range of metric threads | 0.25-2.5mm 15 kinds |
Top slide travel | 65mm |
Cross slide travel | 130mm |
Tailstock quill travel | 85mm |
Taper of tailstock quill | MT2 |
Motor | 750W Brushless Motor |
Packing size | 1550*695*780 |
Net /Gross weight | 210/255 kg |
Standard accessories:
3-jaw chuck,
chuck cover,
4-station toolpost,
toolpost cover,
tailstock,
change gears,
oil gun,
wrenches & tool box
Optional accessories:

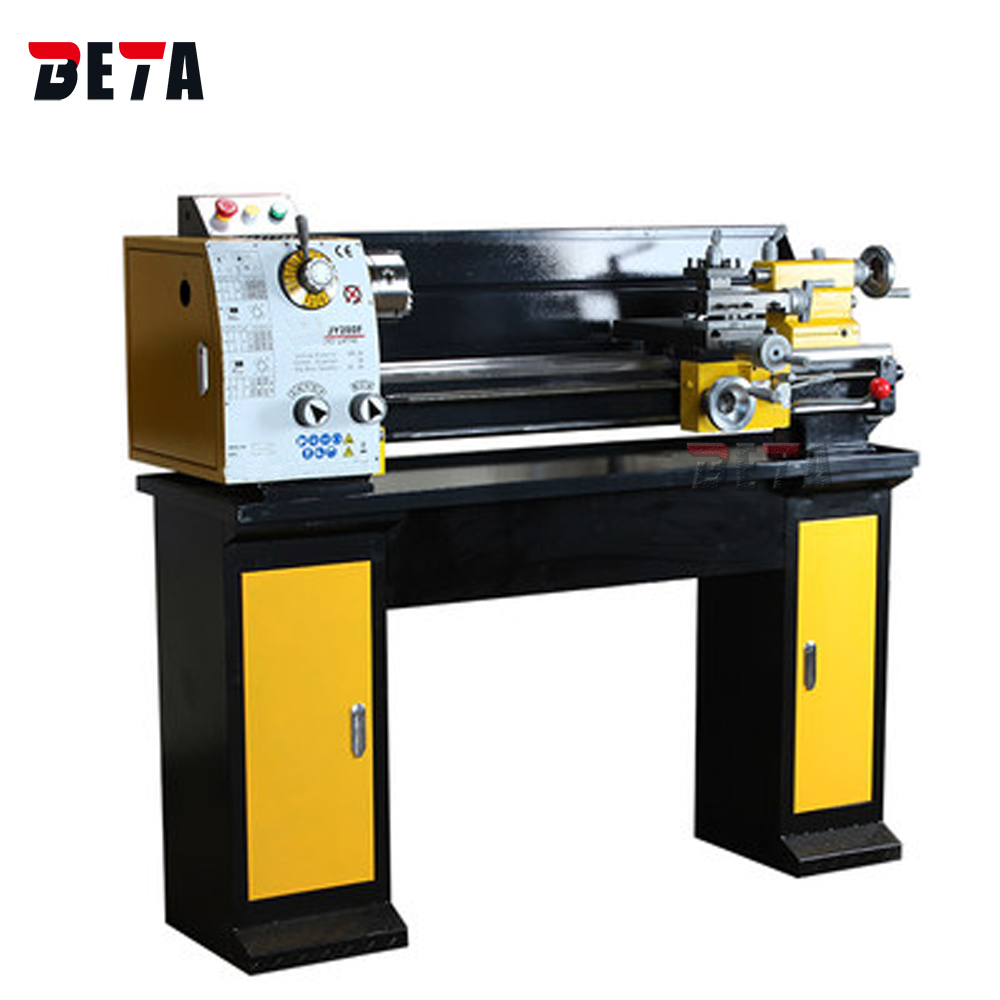

machine stand,
SINO DRO,
work lamp,
coolant pump,
turning tools,
4-jaw chuck,
live center,
drill chuck,
drill bits
