WhatsApp: +8618266249928WhatsApp: +86182662499281.12 steps gear speed shift, hardened gears with high rigidity, suitable for high torque and high speed working.
2.whole 4-position toolpost with good rigidity.
3.1.1kw/1.5kw Pure copper AC motor, large torque, long service life.
4. 220V or 380V voltage can be ordered.
5.Automatic feeding for longitudinal and cross axis, smooth feeding, high processing finish.
6.The widened and thickened guide rail has good rigidity, high hardness, good wear resistance.

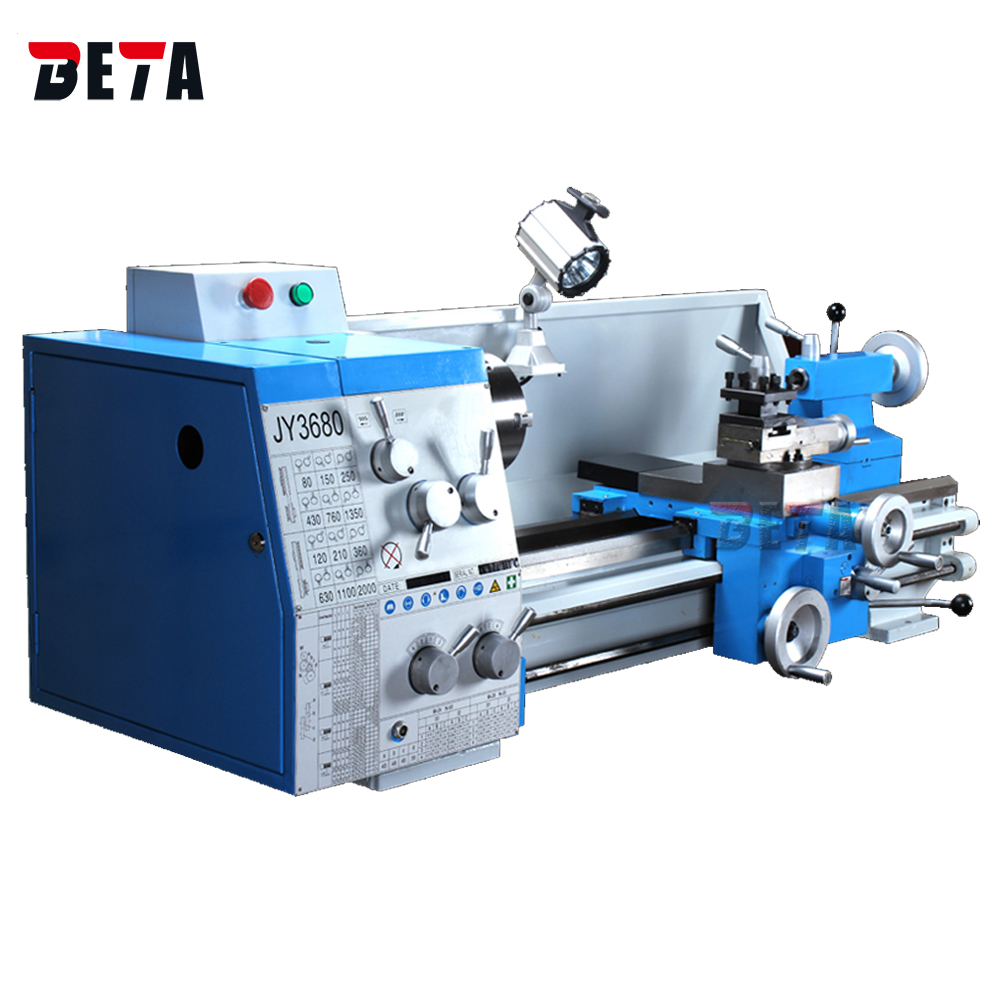

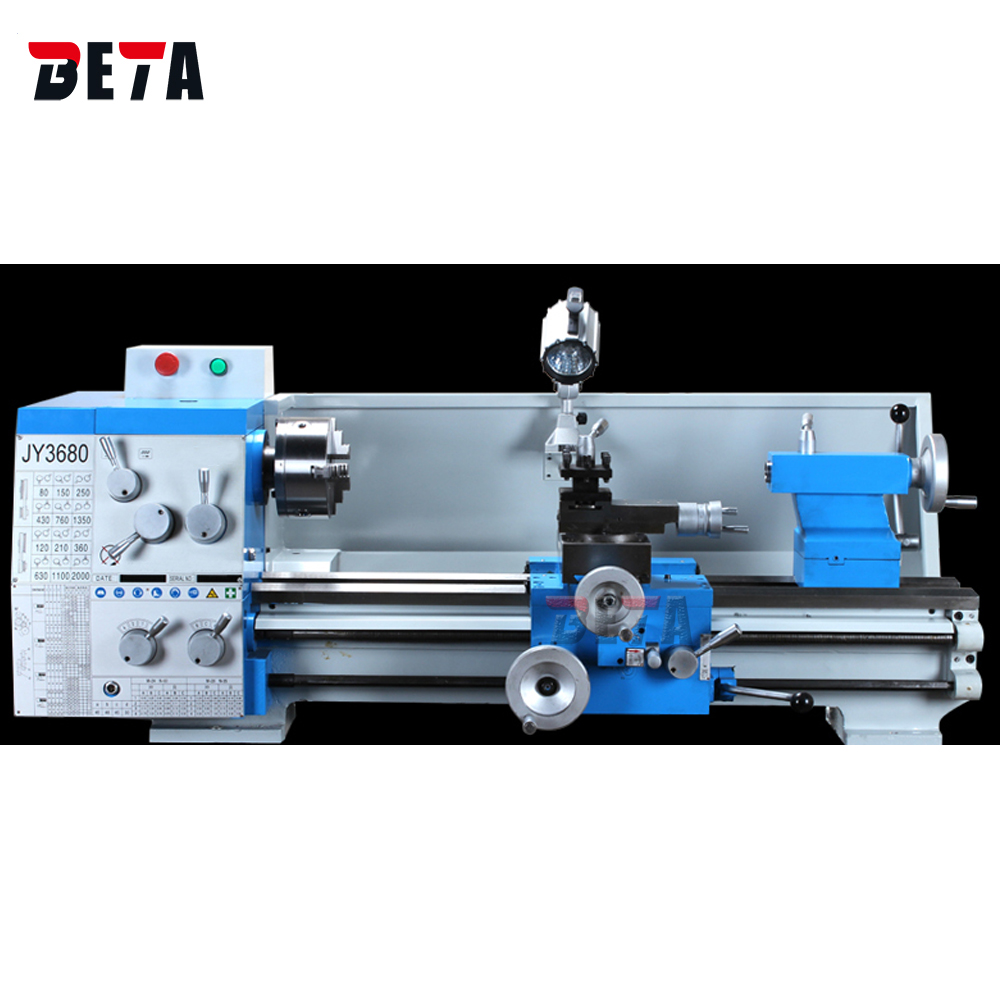

Model | JY3680 |
Distance between centers | 800mm |
Swing over bed | 360mm |
Swing over cross slide | 240mm |
Spindle bore | 40.5mm |
Number of spindle speeds | 12 steps |
Range of spindle speeds | 80-2000rpm |
Range of inch threads | 2 1/2-48 I/n” 45 kinds |
Range of metric threads | 0.2-7mm 22 kinds |
Top slide travel | 100mm |
Cross slide travel | 180mm |
Tailstock quill travel | 100mm |
Taper of tailstock quill | MT3 |
Motor | 1.5kw |
Packing size | 1580*745*730mm |
Net /Gross weight | 350/380 kg |
Standard accessories:
3-jaw chuck,
chuck cover,
4-station toolpost,
toolpost cover,
tailstock,
change gears,
oil gun,
wrenches & tool box
Optional accessories:

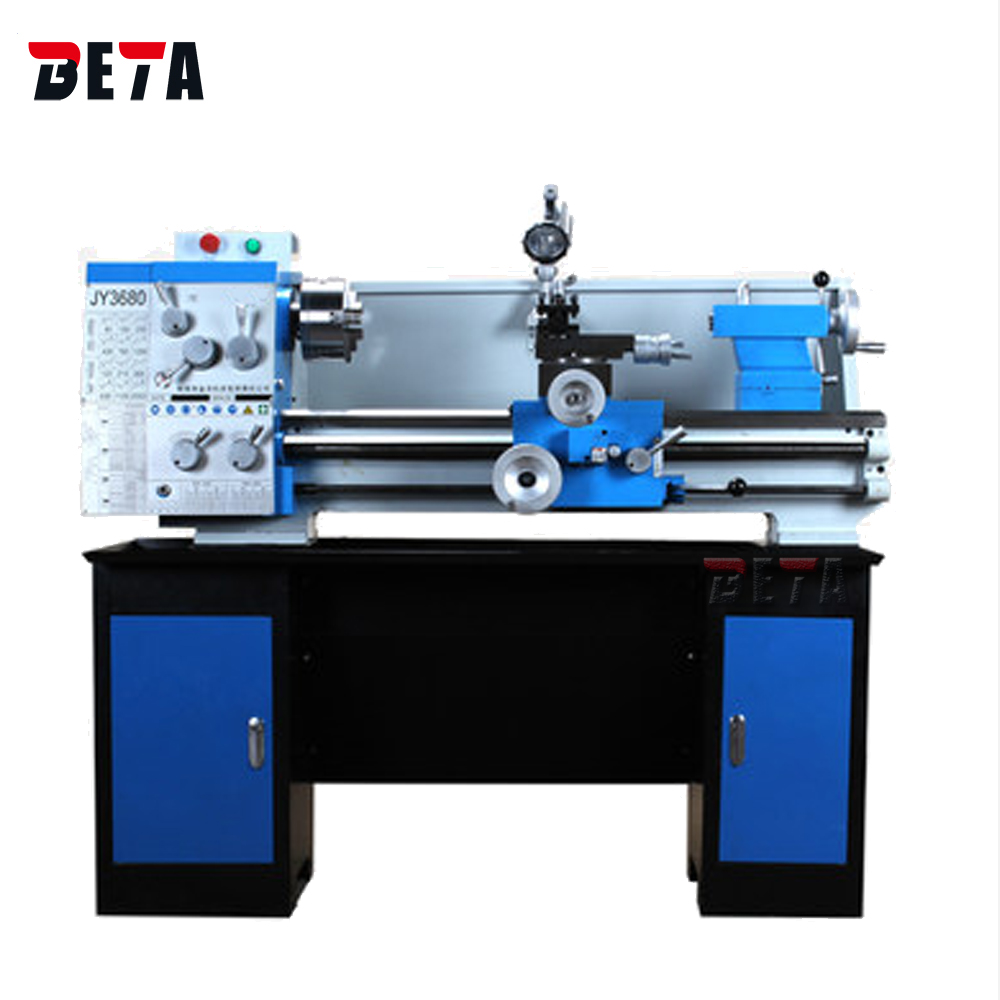

machine stand,

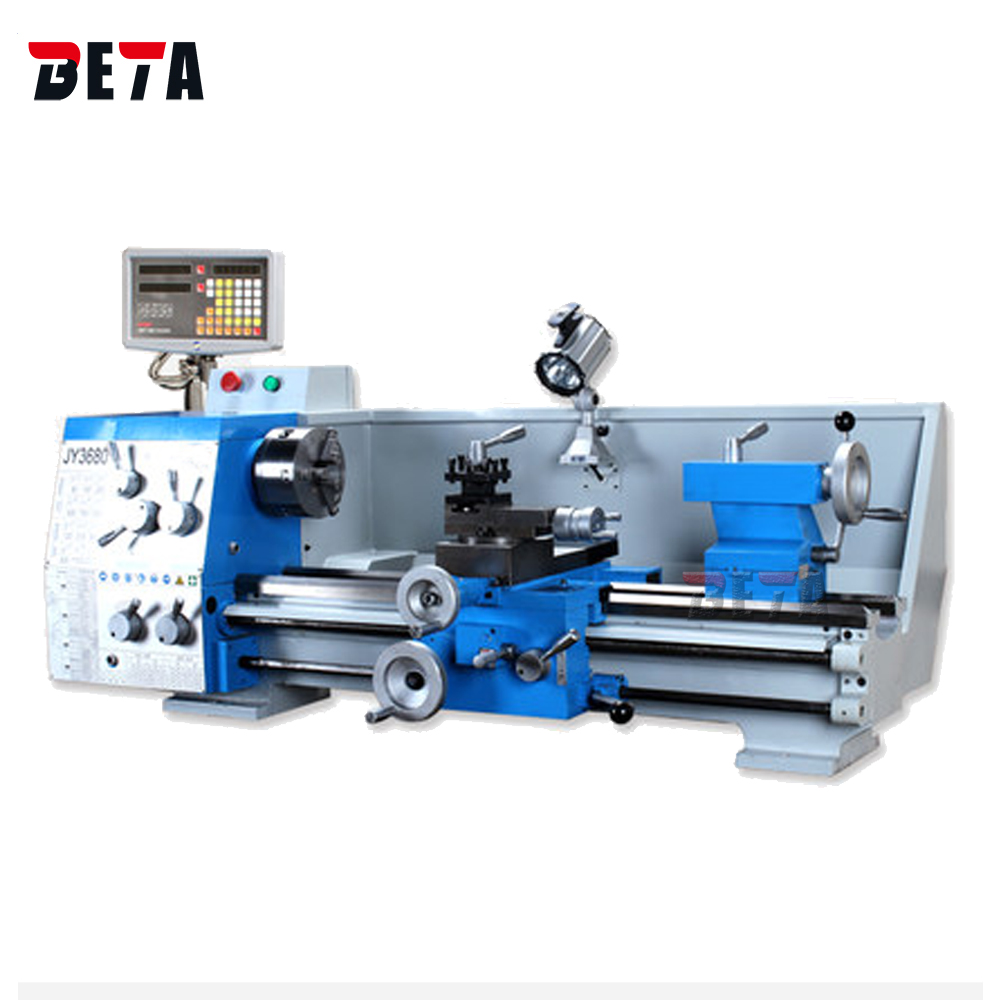

SINO DRO,
work lamp,
coolant pump,
turning tools,
4-jaw chuck,
live center,
drill chuck,
drill bits
