Small manual lathe
JYP250VF
Max.swing over bed 250mm
Spindle bore 26mm
Distance between centers 550/750mm for choice
  • Features
  • Specification
  • CONFIGURATION

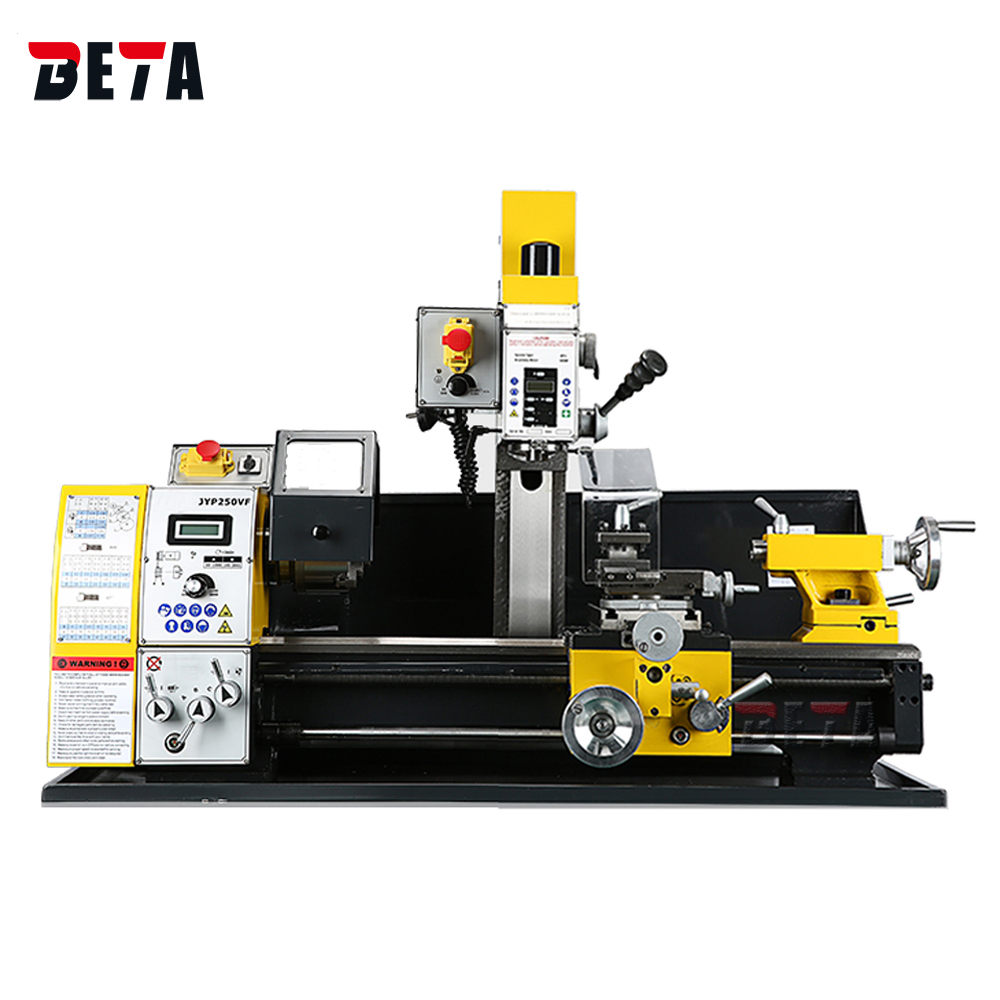

1.JYP250VF combo mini lathe milling and drilling machine with a complete set of metal changing gears are equipped, can process metric thread of different pitch.

2.Adopt two ways of quick handle and screw to lock, effectively improve working efficiency.
3.Hardened V guide rail, the quenching depth is not less than 2mm, dust proof, oil proof, water proof.
4.With spindle speed RPM display screen, stepless speed adjustment, convenient for processing.

5.Lathe part can be ordered according to buyer's requirements.

6.High precision SKF bearings, low noise.

7.C type spindle 26mm spindle diameter with 3-jaw chuck

8.Control system adopts high quality famous brand electrical components.

9.CE standard electrical control system with emergency stop switch.

10.High quality carriage and 4-position toolpost.

11.High rigidity hardened guide way with serial number

12.Good quality milling drilling head with drill chuck and milling chuck.




MODEL

JYP250VF

Distance between centers

550/750mm

Swing over bed

250mm

Swing over cross slide

145mm

Taper of spindle bore

MT4

Spindle bore

26mm

Number of spindle speeds

Variable speed

Range of spindle speeds

50-2250 rpm

Range of inch threads

8-56T.P.I   21kinds

Range of metric threads

0.2 -3.5mm  18kinds

Top slide travel

60mm

Cross slide travel

115mm

Tailstock quill travel

70mm

Taper of tailstock quill

MT2

Motor

1.0 kw

Packing size

1255/1455*640*930mm

Milling head spindle taper

MT2

Drilling capacity

16mm

End milling capacity

16mm

Face milling capacity

52mm

Spindle travel

50mm

T-slot width

10mm

Spindle speed range

50-2250rpm

Motor power

600W

Voltage

as your requirements

N.W./G.W.

220/240 kgs


Standard accessories:

1 kW brushless DC motor

depth display,

rpm speed display,

tailstock,

3-jaw chuck,

change gears,

oil gun,

leadscrew cover,

toolpost cover,

wrenches & tool box



Optional accessories:

Coolant system

Work light

3-axis SINO digital readout

Europe quick change toolpost

steady rest

follow rest

live center

face plate

4-jaw chuck

drill chuck

drill bit

turning tools

milling collet
